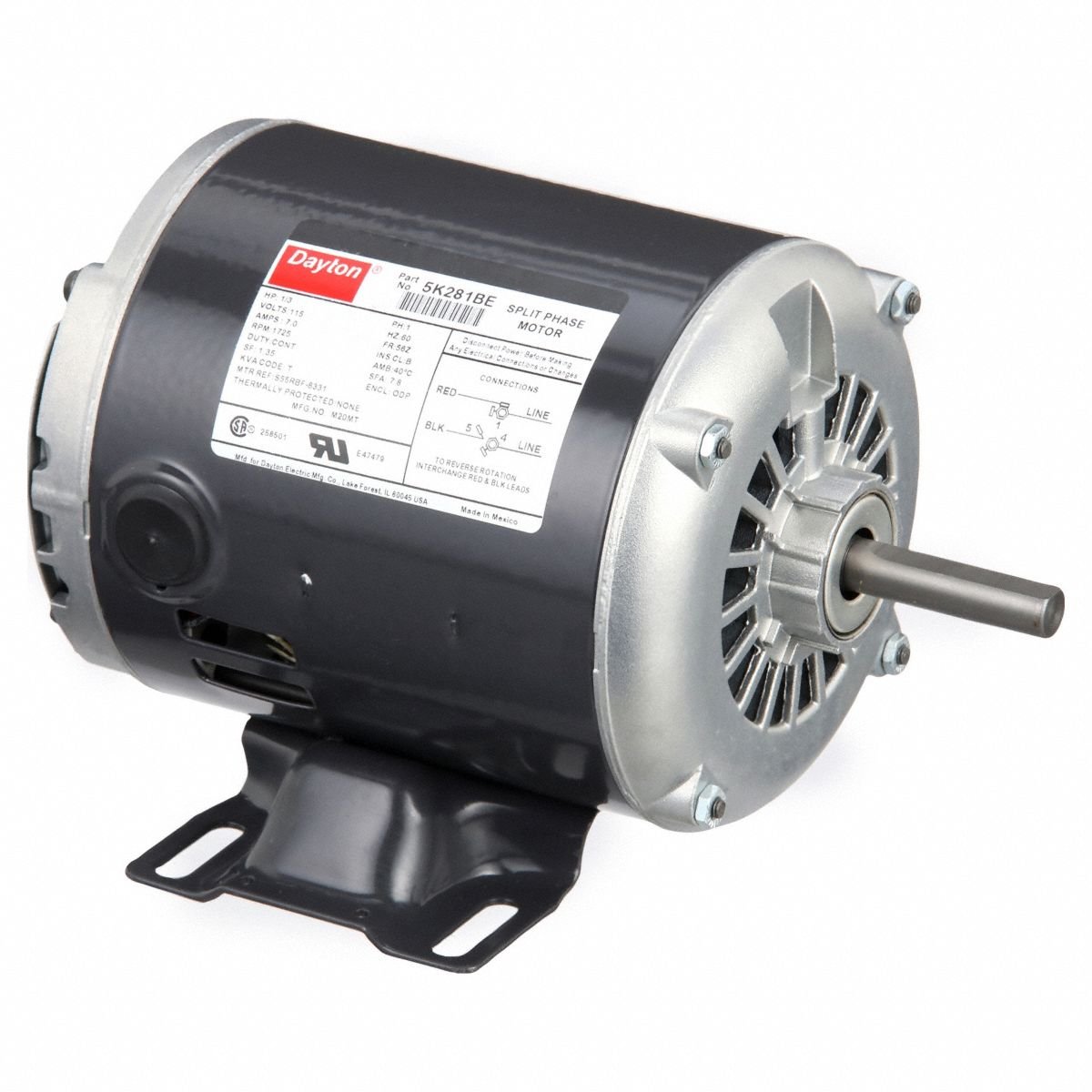

DAYTON General Purpose Motor: Single Phase, 1/3 hp, 115V AC, 56Z Frame Size, 1/2 in x 1 7/8 in, B

Specifications & Compliance

Manufacturer #

5K281

Brand

DAYTON

Nameplate Horsepower @ 60 Hz

1/3 hp

Nameplate RPM @ 60 Hz

1,725 RPM

Frame Size

56Z

Nameplate Voltage @ 60 Hz

115V AC

Full Load Amps @ 60 Hz

7.0 A

Motor Enclosure Type(Abbreviated)

ODP

Motor Thermal Protection

None

Nameplate Service Factor @ 60 Hz

1.35

Output Shaft (Dia x L)

1/2 in x 1-7/8 in

Phase

Single

Frequency

60 Hz

Insulation Class

B

Shaft Diameter

1/2 in

Shaft Length

1-7/8 in

Motor Design

Split-Phase

Mounting Type

Rigid Base

Motor Enclosure Type

Open Drip Proof

Motor Shaft Rotation

CW/CCW

Nominal Efficiency

54.3 %

Number of Speeds

1

Efficiency Rating

Standard Efficiency (IE1)
