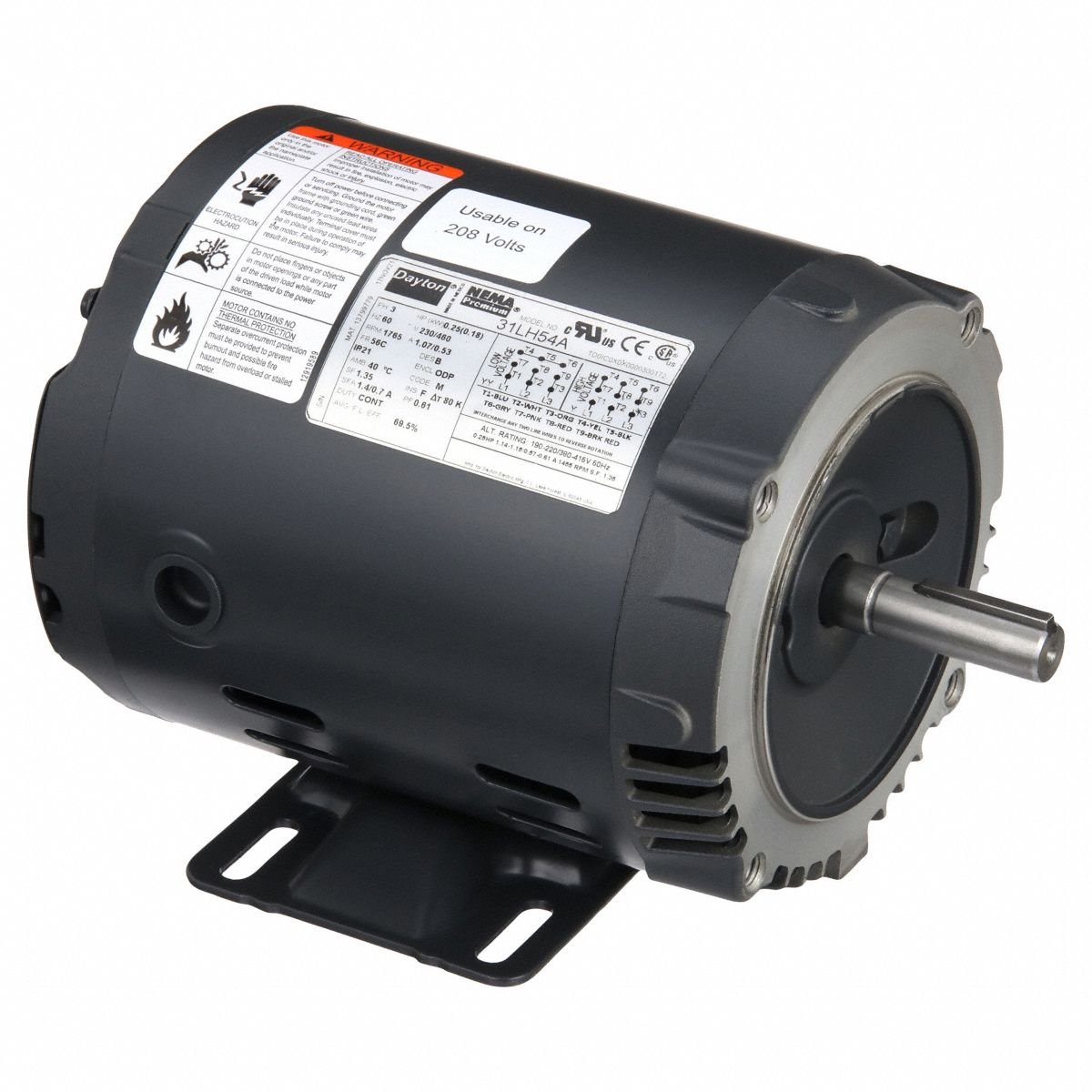

DAYTON General Purpose Motor: C-Face/Rigid Base Mount, Open Drip Proof, 1/4 hp, 230/460V AC

Specifications & Compliance

Brand

DAYTON

Nameplate Horsepower @ 60 Hz

1/4 hp

Nameplate RPM @ 60 Hz

1,720 RPM

Frame Size

56C

Nameplate Voltage @ 60 Hz

230/460V AC

Full Load Current @ 60 Hz

1.0 / 0.50 A

Motor Enclosure

ODP

Motor Thermal Protection

None

Nameplate Service Factor @ 60 Hz

1.15

Output Shaft (Dia x L)

5/8 in x 1-7/8 in

Frame Family

NEMA 56

Motor Enclosure Type

Open Drip Proof

Mounting Type

Rigid Base; C-Face
