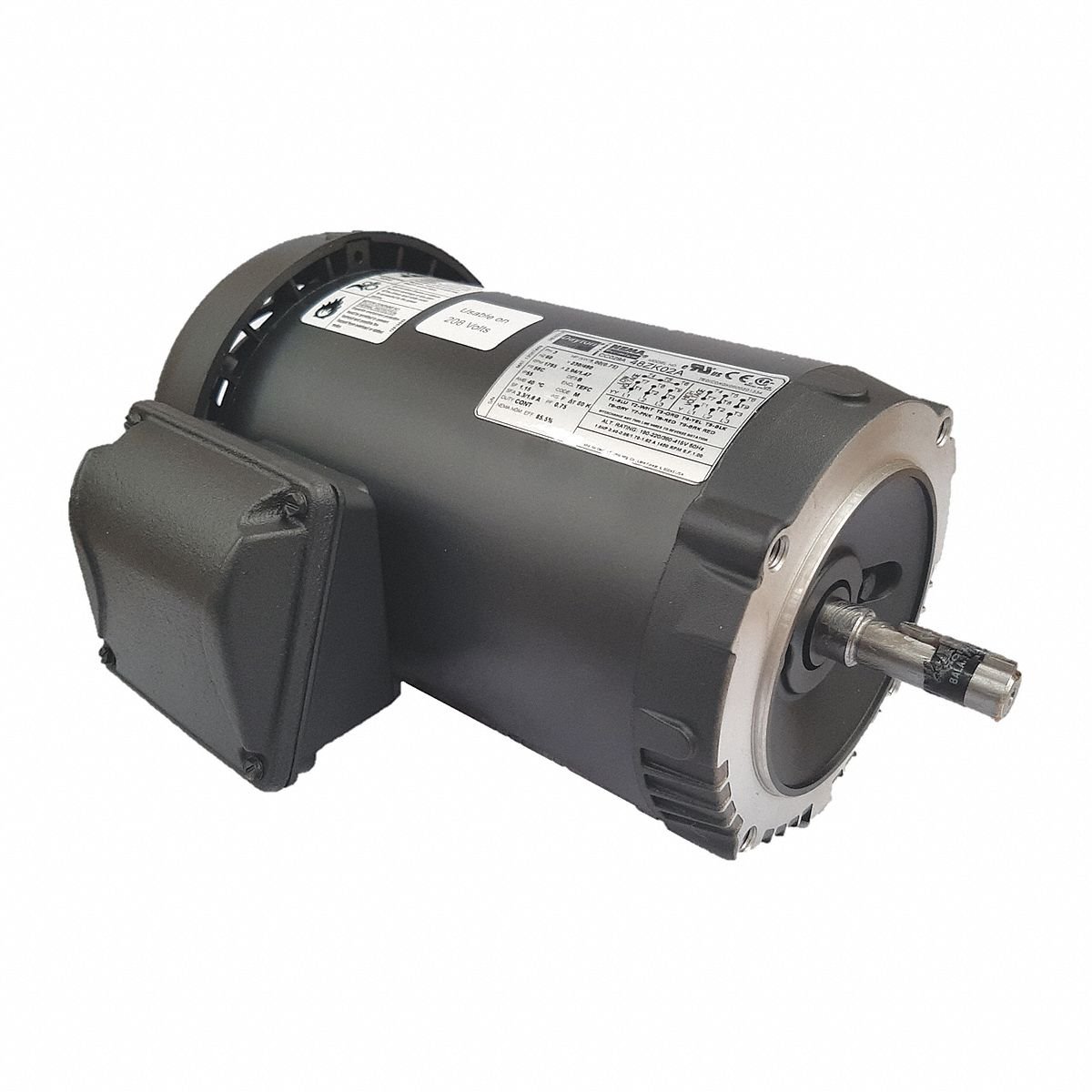

DAYTON General Purpose Motor: C-Face Mount, Totally Enclosed Fan Cooled, 1 hp, 230/460V AC

Specifications & Compliance

Brand

DAYTON

Nameplate Horsepower @ 60 Hz

1 hp

Nameplate RPM @ 60 Hz

1,765 RPM

Frame Size

56C

Nameplate Voltage @ 60 Hz

230/460V AC

Full Load Current @ 60 Hz

2.94/1.47 A

Motor Enclosure

TEFC

Motor Thermal Protection

None

Nameplate Service Factor @ 60 Hz

1.15

Output Shaft (Dia x L)

5/8 in x 1-7/8 in

Frame Family

NEMA 56

Motor Enclosure Type

Totally Enclosed Fan Cooled

Mounting Type

C-Face
