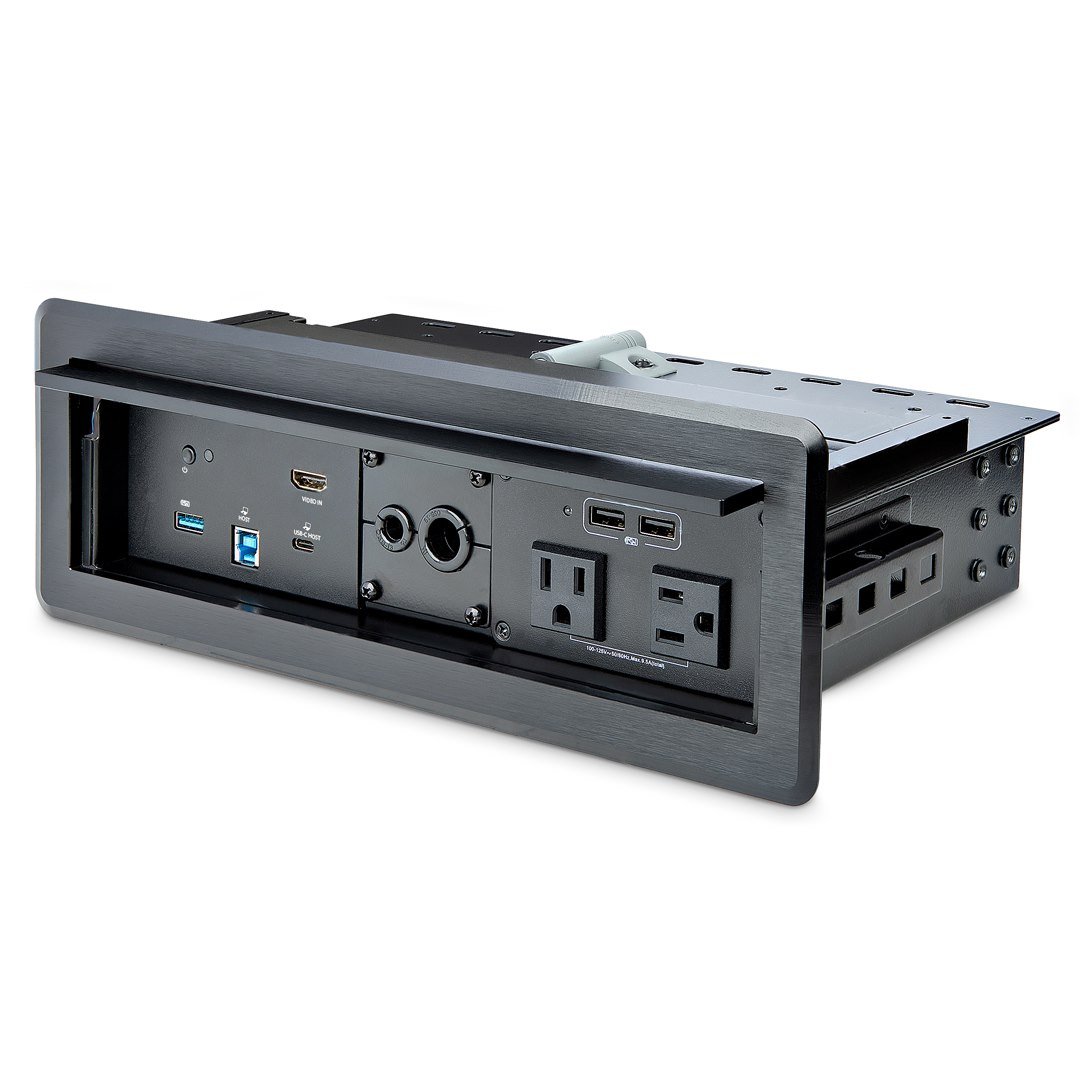

Conference Room Docking Station with Power and Charging; Table Connectivity Box, Universal USB-C Laptop Dock, 60W PD, 4K HDMI, USB Hub, Audio, 2x AC Outlets, 2x USB BC 1.2 Charge Ports - TAA

Specifications & Compliance

Manufacturer #

KITBXDOCKPNA

UPC

065030891158

Brand

StarTech.com

Included in Package

1 - Docking Station Module (MOD4DOCKACPD), 1 - Power Module (MOD4POWERNA), 1 - Modular Table Box (BOX4MODULE), 1 - Universal Power Adapter (MOD4DOCKACPD), 2 - Mounting Brackets (1 - MOD4POWERNA, 1 - MOD4DOCKACPD), 3 - Power Cords (NA, EU, UK) (MOD4DOCKACPD), 1 - USB-A to USB-B Cable (MOD4DOCKACPD), 1 - USB-C Cable (MOD4DOCKACPD), 8 - Mounting Bracket Screws (M5 x 20 mm) (4 - MOD4POWERNA, 4 - MOD4DOCKACPD), 16 - Module Screws (#6-32 x 3/16") (8 - MOD4POWERNA, 8 - MOD4DOCKACPD), 1 - Power Cord (NA) (MOD4POWERNA), 1 - Cable Management Bracket (BOX4MODULE), 2 - Cable Management Top Plates (BOX4MODULE), 4 - Cable Management Plate Screws (#6-32 x 3/8") (BOX4MODULE), 4 - Cable Management Bracket Mounting Screws (#6-32 x 3/8") (BOX4MODULE), 1 - Small Cable Bushing (BOX4MODULE), 1 - Large Cable Bushing (BOX4MODULE), 1 - Lacing Bar (BOX4MODULE), 4 - Lacing Bar Screws (M4 x 4mm) (BOX4MODULE), 2 - Wing Fasteners (BOX4MODULE), 2 - Quick-Start Guides (1 - MOD4POWERNA, 1 - MOD4DOCKACPD), 1 - User Manual (BOX4MODULE)

Shipping (Package) Weight

14.5 lb [6.6 kg]

Weight of Product

6.0 lb [2.7 kg]

Product Length

6.5 in [16.5 cm]

Product Width

12.5 in [31.8 cm]

Product Height

4.3 in [11.0 cm]

Package Depth

15.4 in [39.1 cm]

Package Width

14.1 in [35.8 cm]

Package Height

13.4 in [34 cm]

Color

Black

Warranty

2 Years

Connector 1

HDMI

Connector 1 (Quantity)

3

Package Quantity

1

Connector 2

USB-A (7.5W Power Only)

Connector 2 (Quantity)

1

Operating Temperature

0 to 40℃ (32°F to 104°F) (MOD4DOCKACPD and MOD4POWERNA)

Storage Temperature

-20°C to 65°C (-4°F to 149°F) (MOD4DOCKACPD) <br> -27℃ to 40℃ (-16.6°F to 104°F) (MOD4POWERNA)

Humidity

20~80% RH (MOD4DOCKACPD) <br> 8% to 90% (MOD4POWERNA)

Material

Aluminum, Steel and Plastic

Maximum Data Transfer Rate

5 Gbps (USB 3.0)<br /> 2 Gbps (Ethernet; Full-Duplex)

Industry Standards

USB Power Delivery Specification Rev. 2.0 <br> USB Battery Charging Specification Rev. 1.2 <br> IEEE 802.3, IEEE 802.3u, IEEE 802.3ab <br> USB 3.0 - Backward compatible with USB 2.0 and 1.1

Power Source

AC Adapter Included

Chipset ID

DisplayLink - DL-6950<br>Genesys Logic - GL850G<br>Texas Instruments - TPS65982<br>Parade Technologies - PS176<br>VIA Labs - VL813<br>Realtek - RTL8153

Special Notes

Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode., 4K resolution is supported. A 4K-capable display is required to achieve 4Kx2K resolution, If connected to a USB 2.0 host port, or if using a USB 2.0 host connection cable, performance may be limited (USB 3.0 host cable included), USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps, Cables with ferrites may impact cable maneuverability within the cable hole. If ferrites are required, we recommend using cables with ferrites that are positioned as close to the connector as possible, The dock connects to the USB-C port on your laptop. The dock can also be connected to the USB-A port on laptops using a USB-B to A cable (included), but Power Delivery to charge your laptop is not available through USB-A

Connector 3

USB-A (5Gbps, 4.5W)

Connector 3 (Quantity)

3

LED Indicators

2 - Power (1 - MOD4POWERNA, 1 - MOD4DOCKACPD)

Bus Type

USB-C, USB 3.2 Gen 1 (5Gbps)

Type and Rate

USB 3.0 (5Gbps)

Maximum Digital Resolutions

3840 x 2160p (4K) @ 30Hz

Compatible Networks

10/100/1000 Mbps

Connector 4

3.5mm (3 Conductors, TRS)

Connector 4 (Quantity)

2

General Specifications

(MOD4DOCKACPD) Center Tip Polarity: Positive, (MOD4DOCKACPD) Input Voltage: 100 ~ 240 AC, (MOD4DOCKACPD) Output Current: 6 A, (MOD4DOCKACPD) Output Voltage: 20V DC, (MOD4DOCKACPD) Plug Type: N, (MOD4DOCKACPD) Power Source: AC Adapter Included, (MOD4DOCKACPD) USB Power Delivery: 60W, (MOD4POWERNA) Input Voltage: 110 ~ 240 AC, (MOD4POWERNA) Maximum Output Voltage: 240V<br>, (MOD4POWERNA) Nominal Input Voltage: 110V ~ 240V, (MOD4POWERNA) Nominal Output Voltage: 110V ~ 240V, (MOD4POWERNA) Number of AC Power Outlets: 2, (MOD4POWERNA) Number of USB Power Ports : 2, (MOD4POWERNA) Output Current: 10 A, (MOD4POWERNA) Output Voltage: 5 DC, (MOD4POWERNA) Power Source: Standard 120V Power Cords Included

UASP Support

Yes

Connector 5

RJ-45

Connector 5 (Quantity)

1

Auto MDIX

Yes

Full Duplex Support

Yes

Fast-Charge Port(s)

Yes

Connector 6

USB-C (5Gbps, 4.5W)

Connector 6 (Quantity)

1

Displays Supported

1

4K Support

Yes

Connector 7

USB-B (5Gbps, 4.5W)

Connector 7 (Quantity)

1

Connector 8

NEMA 5-15 (125V AC, 15A)

Connector 8 (Quantity)

1

Connector 9 (Quantity)

1

Connector 10

IEC C13 (250V AC, 10A)

Connector 10 (Quantity)

2
