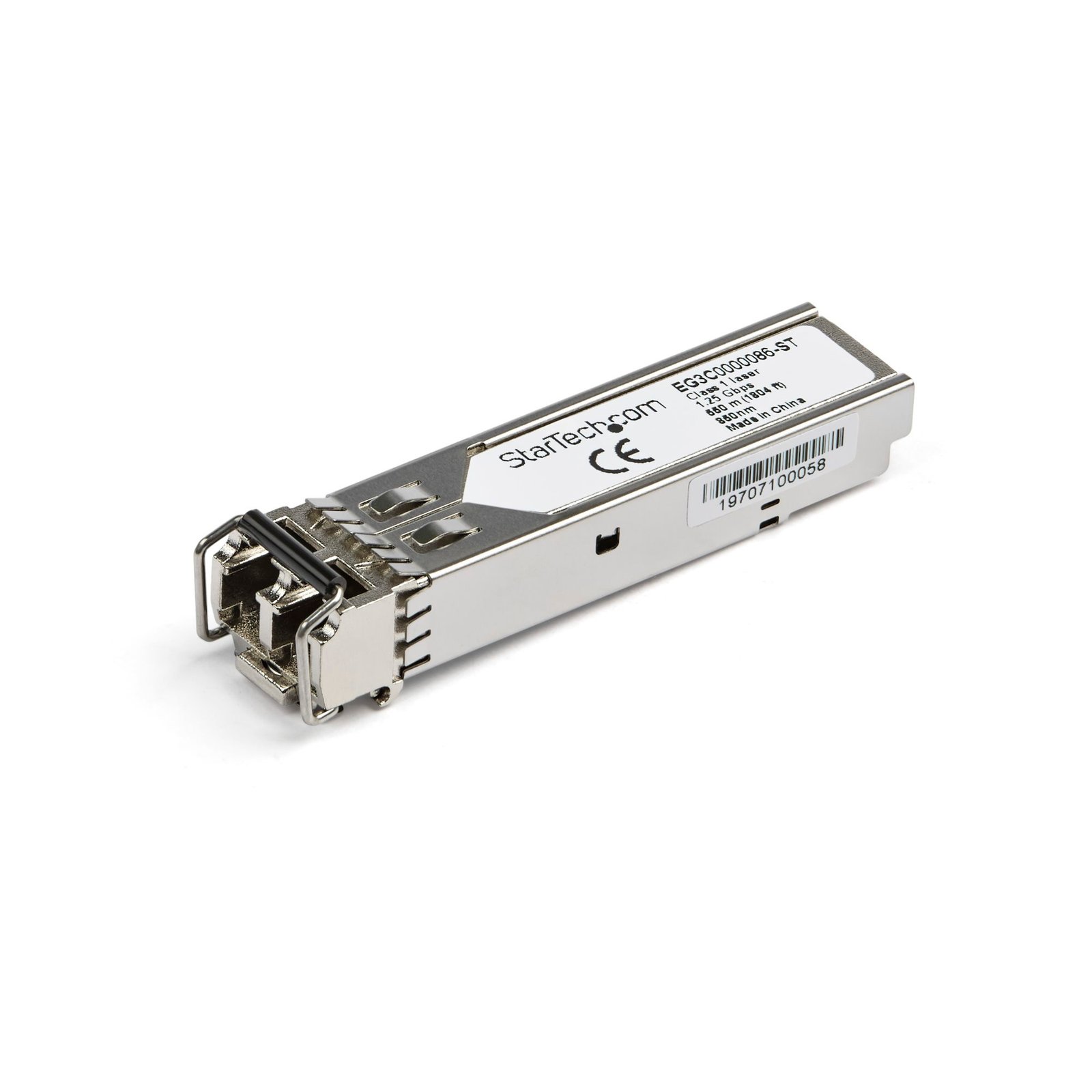

Citrix EG3C0000086 Compatible SFP Module - 1000BASE-SX - 1GbE Multimode Fiber MMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m

Citrix EG3C0000086 Compatible SFP Module - 1000BASE-SX - 1GbE Multimode Fiber MMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM

$12.99

1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty

SKU: EG3C0000086-ST Category:

Specifications & Compliance

UPC
065030885706
Brand
StarTech.com
Included in Package
1 - SFP Transceiver
Shipping (Package) Weight
1.7 oz [48 g]
Weight of Product
0.6 oz [16 g]
Product Length
0.5 in [13.7 mm]
Product Width
2.2 in [56.6 mm]
Product Height
0.5 in [12.5 mm]
Package Depth
3.7 in [94 mm]
Package Width
4.4 in [11.2 cm]
Package Height
1.3 in [32 mm]
Warranty
Lifetime
Connector 1
SFP Slot
Connector 1 (Quantity)
1
Package Quantity
1
Connector 2
LC Duplex Fiber
Connector 2 (Quantity)
1
Material
Steel
Maximum Data Transfer Rate
1.25 Gbps
Industry Standards
IEEE 802.3z 1000BASE-SX
Output Voltage
3.3V DC
MTBF
629,953,711 hours
Compatible Networks
1000 Mbps (1 Gbps)
Fiber Type
Multi Mode
Wavelength
850nm
Compatible Brand
Citrix
Max Transfer Distance
550m [1804ft]
Fiber Operating Mode
Full-Duplex
Digitial Diagnostics Monitoring Support
Yes
OEM Part Number
EG3C0000086

Questions & Answers

Why is my SFP Transceiver not working with my Network Device?
Ensure the Network Device is running a compatible Firmware Version on a compatible Operating System . Please consult the manufacturer of the Network Device for more information regarding the minimum required or recommended system software.

What is the difference between UPC and APC fiber connectors, and which type do StarTech.com fiber products use?
UPC and APC connectors differ in their end-face polish, and StarTech.com fiber products use UPC connectors. Explanation: UPC (Ultra Physical Contact) and APC (Angled Physical Contact) are fiber connector types that differ in how the fiber end face is polished: UPC connectors: The fiber end face is polished flat with a slight dome shape to ensure direct core contact and low insertion loss. APC connectors: The fiber end face is polished at an 8-degree angle to reduce back reflection in high-performance applications. UPC and APC connectors are not compatible and should not be mated. The angled surface of an APC connector prevents proper alignment with a UPC connector, which can result in high signal loss or a failed connection. StarTech.com fiber products use UPC connectors, so they must be connected to other UPC-compatible fiber interfaces to ensure proper operation.
