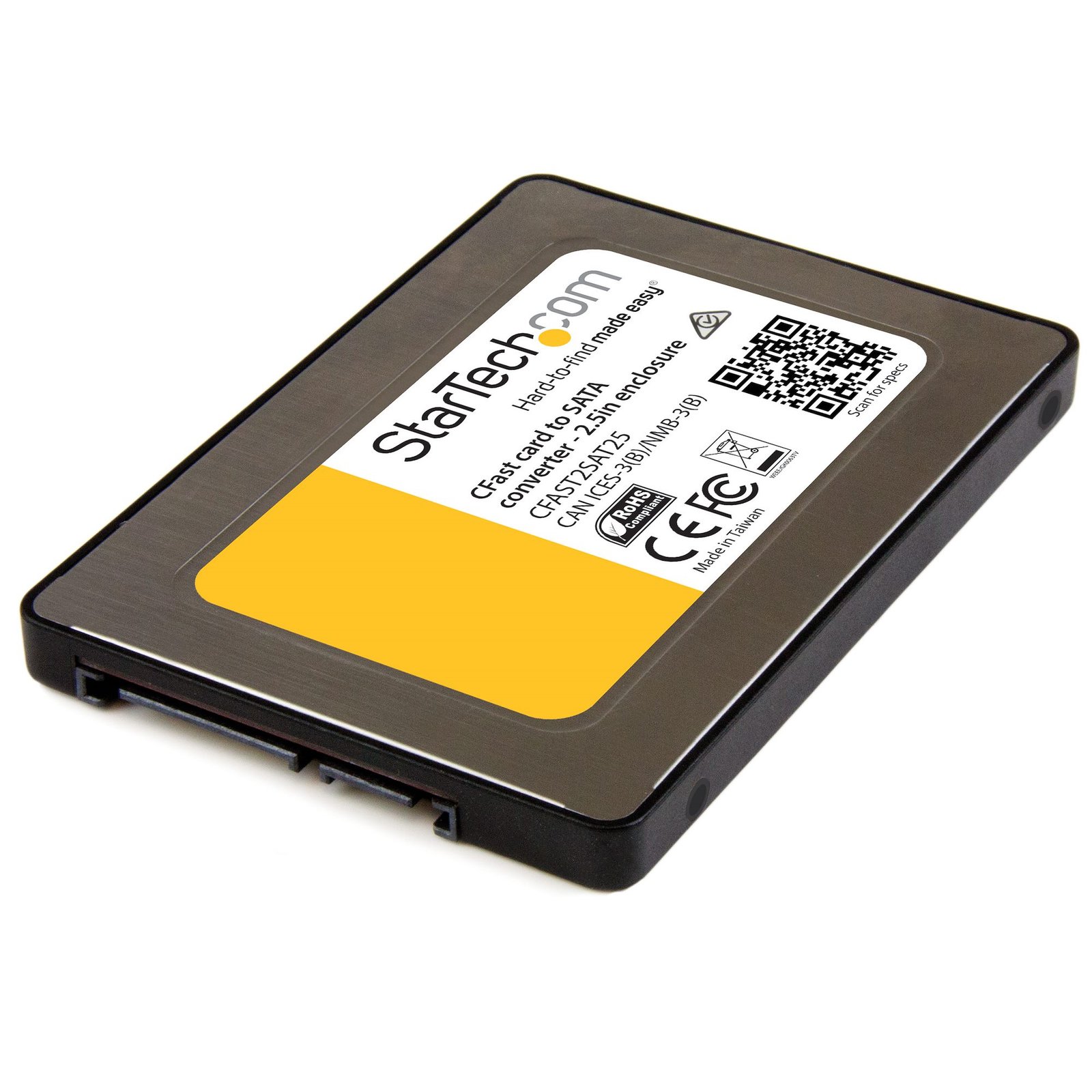

CFast Card to SATA Adapter with 2.5" Housing - TAA

Specifications & Compliance

UPC

065030861212

Brand

StarTech.com

Included in Package

1 - CFast card to SATA converter, 1 - Assembly screw kit, 1 - Quick install guide

Shipping (Package) Weight

3.7 oz [106 g]

Weight of Product

1.9 oz [54 g]

Product Length

3.9 in [99 mm]

Product Width

2.7 in [69 mm]

Product Height

0.4 in [9.9 mm]

Package Depth

5.2 in [13.1 cm]

Package Width

6.4 in [16.3 cm]

Package Height

1.3 in [33 mm]

Color

Black & Silver

Warranty

2 Years

Connector 1

CFast Slot (7-Pin + 17-Pin)

Connector 1 (Quantity)

1

Package Quantity

1

Operating Temperature

0°C to 75°C (32°F to 167°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Humidity

5%~95% RH

Material

Steel and Plastic

Maximum Data Transfer Rate

6 Gbps

Input Voltage

5V DC

Output Voltage

5 DC

MTBF

50,000

Interface

SATA

Host Connector 1

SATA (7-Pin + 15-Pin)

Host Connector 1 (Quantity)

1

SATA Type and Rate

SATA III (6 Gbps)

Compatible Drive Types

CFAST 2.0, 1.0

Number of Drives

1

Drive Size

CFast (I/II Card)

RAID

No

Insertion Rating

10,000

Supported Drive Height(s)

3.3mm, 5mm

Memory Media Type

CFast (I/II Card)
