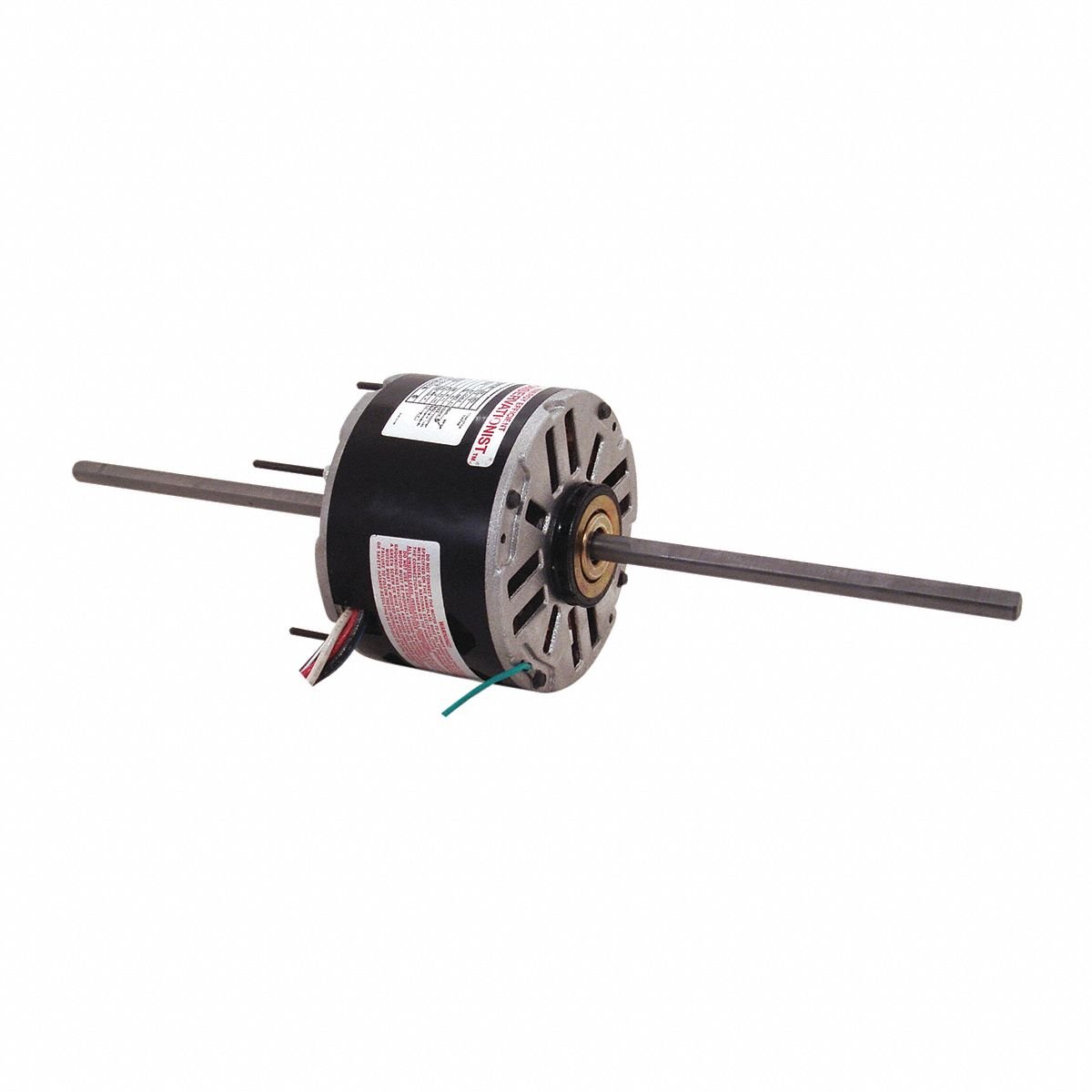

CENTURY Room Air Conditioner Motor: Resilient Ring/Stud Mount, Permanent Split Capacitor, 2.0 A

Specifications & Compliance

Manufacturer #

RA1034

Brand

CENTURY

Nameplate Horsepower @ 60 Hz

1/3 hp

Nameplate RPM @ 60 Hz

1,625 RPM

Frame Size

48Y

Nameplate Voltage @ 60 Hz

208-230V AC

Full Load Amps @ 60 Hz

2.0 A

Motor Thermal Protection

Auto

Nameplate Service Factor @ 60 Hz

1

Output Shaft (Dia x L)

1/2 in x 7-13/32 in

Mounting Type

Resilient Ring; Stud

Motor Design

Permanent Split Capacitor

Body Diameter

5.6 in

Shaft Diameter

1/2 in

Shaft Length

7-13/32 in

Frequency

60 Hz

Usable @ 208V

Usable at 208V

Motor Shaft Rotation

CCWLE
