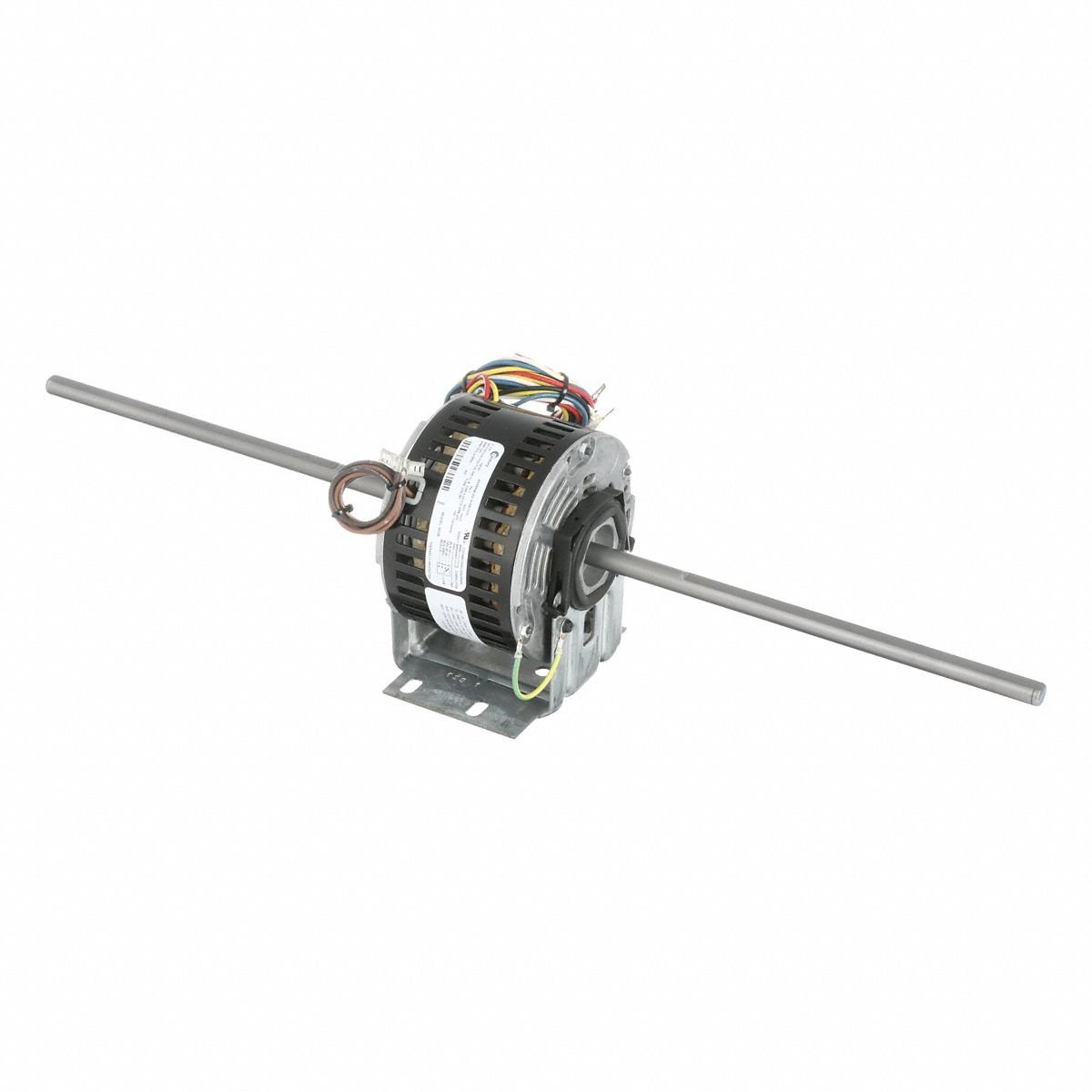

CENTURY Room Air Conditioner Motor: Cradle Base Mount, Permanent Split Capacitor, 1,075 RPM RPM

Specifications & Compliance

Manufacturer #

362B

Brand

CENTURY

Nameplate Horsepower @ 60 Hz

1/35 hp; 1/25 hp; 1/15 hp; 1/10 hp

Nameplate RPM @ 60 Hz

1,075 RPM

Frame Size

42

Nameplate Voltage @ 60 Hz

115V AC

Full Load Amps @ 60 Hz

1.83 A

Motor Enclosure

OAO

Motor Thermal Protection

Auto

Nameplate Service Factor @ 60 Hz

1

Output Shaft (Dia x L)

1/2 in x 10-5/8 in

Mounting Type

Cradle Base

Motor Design

Permanent Split Capacitor

Body Diameter

5 in

Motor Enclosure Type

Open Air Over

Shaft Diameter

1/2 in

Shaft Length

10-5/8 in

Frequency

60 Hz

Usable @ 208V

Not Usable at 208V

Motor Shaft Rotation

CCWSE
