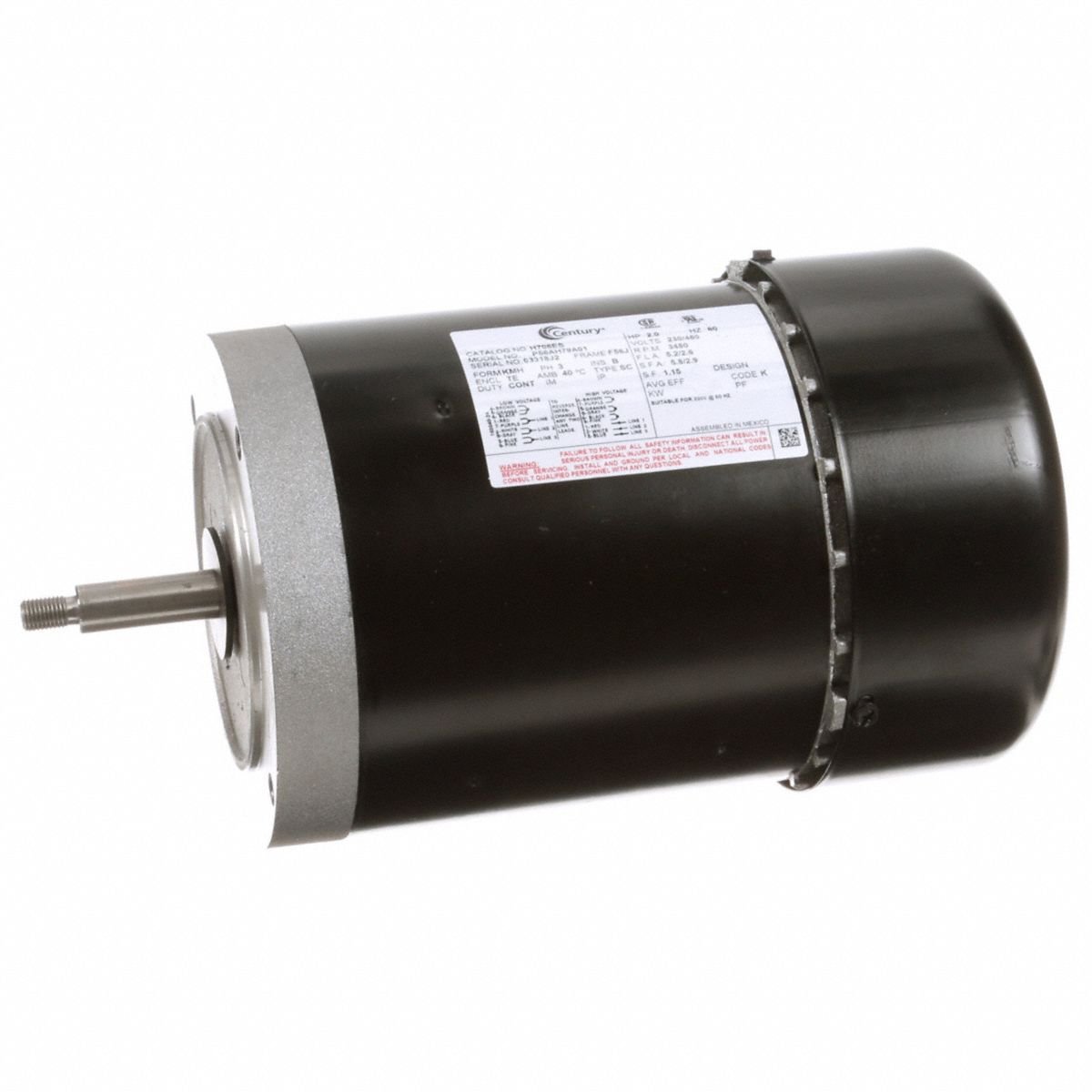

CENTURY General Purpose Pump Motor: 56J Frame Size, C-Face, Totally Enclosed Fan Cooled, Three-Phase

Specifications & Compliance

Manufacturer #

H706ES

Brand

CENTURY

Nameplate Horsepower @ 60 Hz

2 hp

Nameplate RPM @ 60 Hz

3,450 RPM

Frame Size

56J

Nameplate Voltage @ 60 Hz

230/460V AC

Full Load Amps @ 60 Hz

5.2/2.6 A

Motor Enclosure

TEFC

Motor Thermal Protection

None

Nameplate Service Factor @ 60 Hz

1.2

Output Shaft (Dia x L)

5/8 in x 2-5/8 in

Motor Design

Three-Phase

Mounting Type

C-Face

Motor Shaft Rotation

CW/CCW
