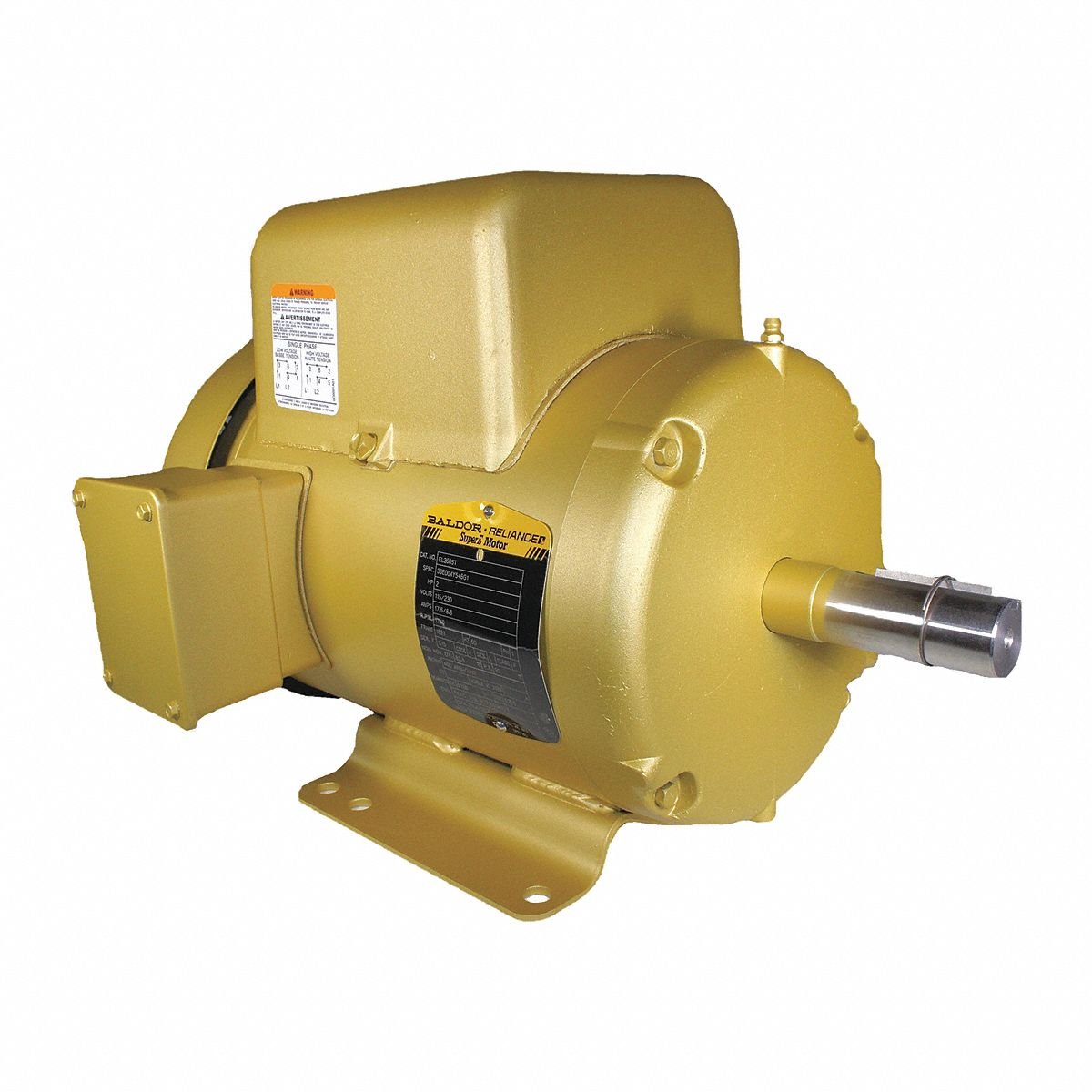

BALDOR General Purpose Motor: Single Phase, 2 hp, 115/230V AC, 182T Frame Size, 1 1/8 in x 2 3/4 in

Specifications & Compliance

Manufacturer #

EL3605T

Brand

BALDOR

Nameplate Horsepower @ 60 Hz

2 hp

Nameplate RPM @ 60 Hz

1,800 RPM

Frame Size

182T

Nameplate Voltage @ 60 Hz

115/230V AC

Full Load Amps @ 60 Hz

8.8 A

Motor Enclosure Type(Abbreviated)

TEFC

Motor Thermal Protection

None

Nameplate Service Factor @ 60 Hz

1.15

Output Shaft (Dia x L)

1-1/8 in x 2-3/4 in

Phase

Single

Frequency

60 Hz

Insulation Class

F

Shaft Diameter

1-1/8 in

Shaft Length

2-3/4 in

Motor Design

Capacitor-Start/Run

Mounting Type

Rigid Base

Motor Enclosure Type

Totally Enclosed Fan Cooled

Motor Shaft Rotation

CW/CCW

Nominal Efficiency

83 %

Number of Speeds

1

Efficiency Rating

High Efficiency (IE2)
