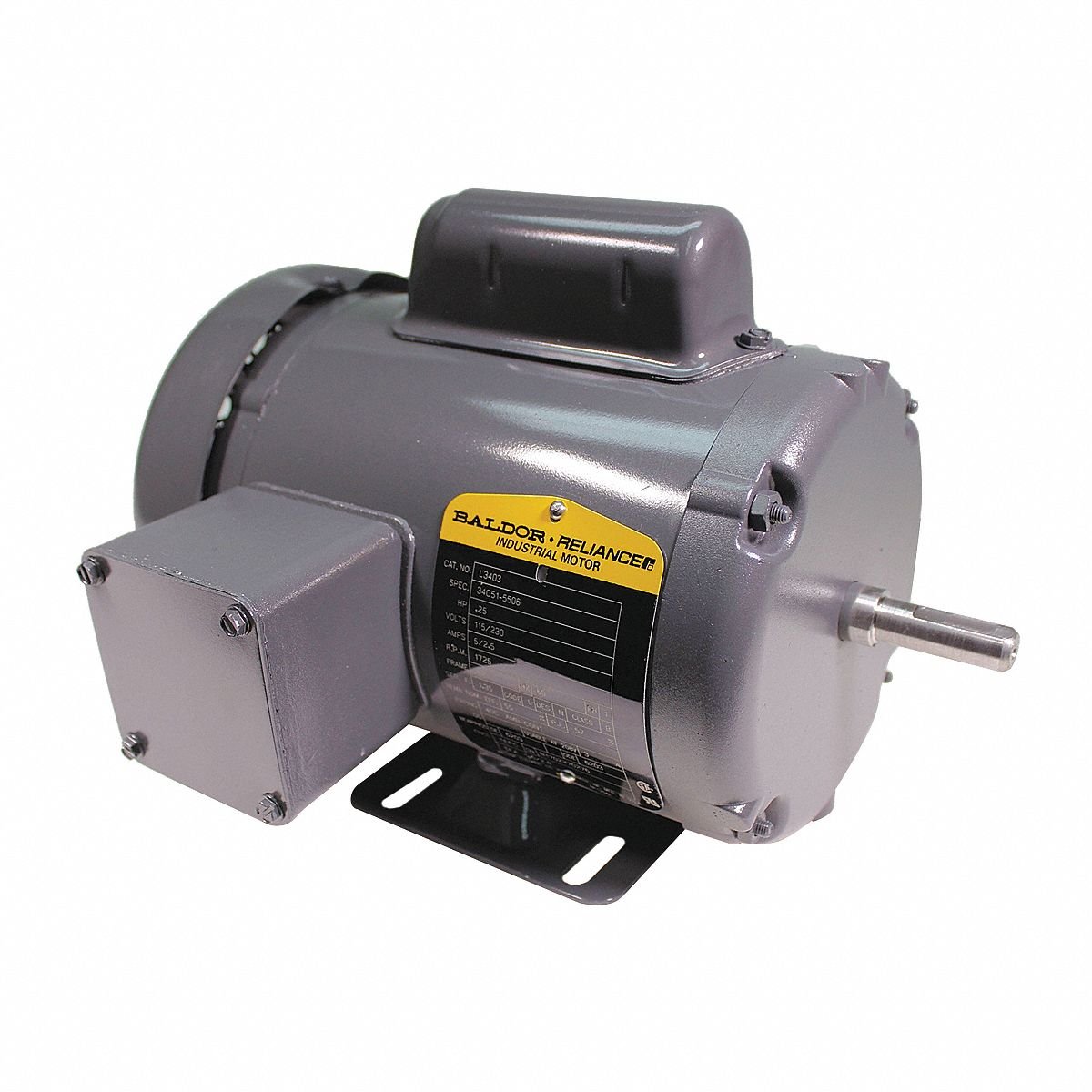

BALDOR General Purpose Motor: Single Phase, 1/4 hp, 115/230V AC, 48 Frame Size, 1/2 in x 1 1/2 in, B

Specifications & Compliance

Manufacturer #

L3403

Brand

BALDOR

Nameplate Horsepower @ 60 Hz

1/4 hp

Nameplate RPM @ 60 Hz

1,800 RPM

Frame Size

48

Nameplate Voltage @ 60 Hz

115/230V AC

Full Load Amps @ 60 Hz

2.5 A

Motor Enclosure Type(Abbreviated)

TEFC

Motor Thermal Protection

None

Nameplate Service Factor @ 60 Hz

1.35

Output Shaft (Dia x L)

1/2 in x 1-1/2 in

Phase

Single

Frequency

60 Hz

Insulation Class

B

Shaft Diameter

1/2 in

Shaft Length

1-1/2 in

Motor Design

Capacitor-Start/Run

Mounting Type

Rigid Base

Motor Enclosure Type

Totally Enclosed Fan Cooled

Motor Shaft Rotation

CW/CCW

Nominal Efficiency

55 %

Number of Speeds

1

Efficiency Rating

High Efficiency (IE2)
