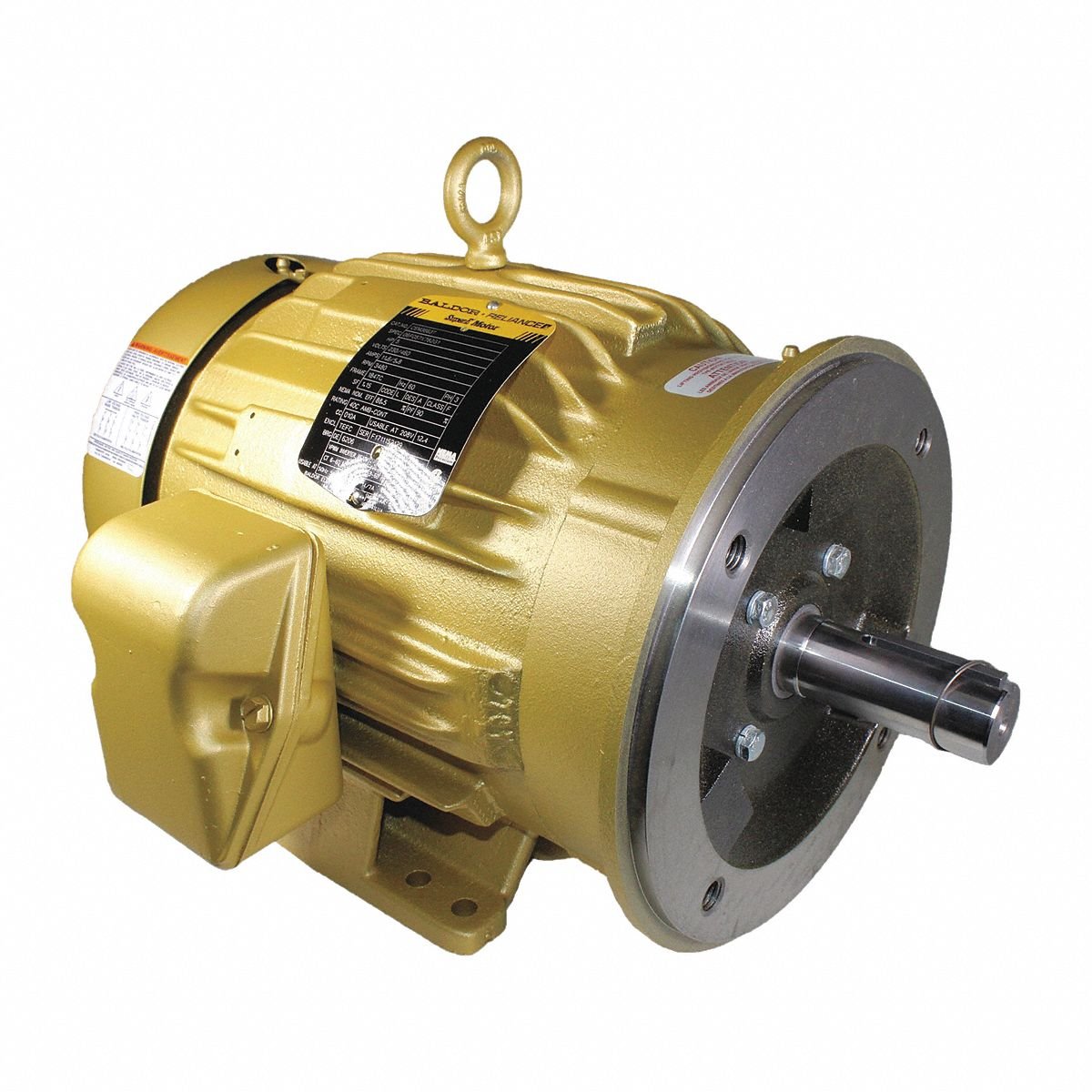

BALDOR General Purpose Motor: C-Face Mount, Totally Enclosed Fan Cooled, 5 hp, 208-230/460V AC

Specifications & Compliance

Manufacturer #

CEM3663T

Brand

BALDOR

Nameplate Horsepower @ 60 Hz

5 hp

Nameplate RPM @ 60 Hz

3,600 RPM

Frame Size

184TC

Nameplate Voltage @ 60 Hz

208-230/460V AC

Full Load Current @ 60 Hz

11.6/5.8 A

Motor Enclosure

TEFC

Motor Thermal Protection

None

Nameplate Service Factor @ 60 Hz

1.15

Output Shaft (Dia x L)

1-1/8 in x 2-3/4 in

Frame Family

NEMA 180

Motor Enclosure Type

Totally Enclosed Fan Cooled

Mounting Type

C-Face
