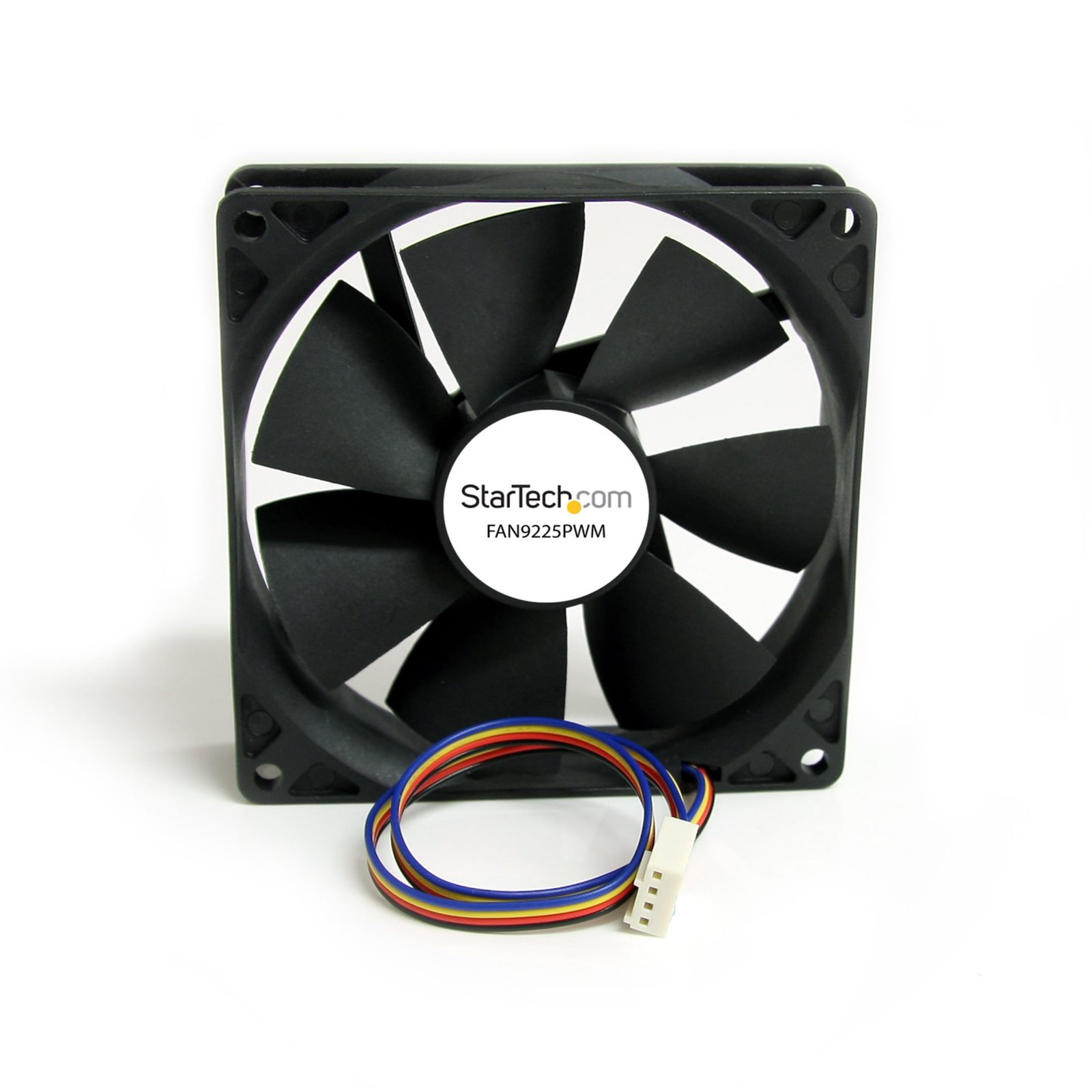

92x25mm Computer Case Fan with PWM – Pulse Width Modulation Connector

Specifications & Compliance

UPC

065030845328

Brand

StarTech.com

Included in Package

1 - 92mm Case Fan, 1 - 9 inch PWM Y-Cable

Shipping (Package) Weight

4.1 oz [115 g]

Weight of Product

3.4 oz [96 g]

Product Length

3.6 in [92 mm]

Product Height

1.0 in [25 mm]

Package Depth

1.2 in [30 mm]

Package Width

3.7 in [95 mm]

Package Height

5.6 in [14.2 cm]

Color

Black

Cable Length

11.6 in [29.5 cm]

Warranty

2 Years

Connector 1

LP4 / Molex Power (4-Pin, 5V / 12V)

Connector 1 (Quantity)

1

Operating Temperature

-10°C to 70°C (14°F to 158°F)

Storage Temperature

-20°C to 70°C (-4°F to 158°F)

Humidity

0 ~ 65% RH

Material

Plastic

Number of Conductors

4

Input Voltage

12V DC

MTBF

40,000 Hours

Input Current

160 mA

System and Cable Requirements

4-pin PWM fan connector (male)

Fan Bearing Type

Ever Lubricate Bearing

Noise Level

< 10 ~ 25 dBA

Air Flow Rate

12.78 ~ 39.35 CFM

Fan RPM

700 ~ 2200 RPM
