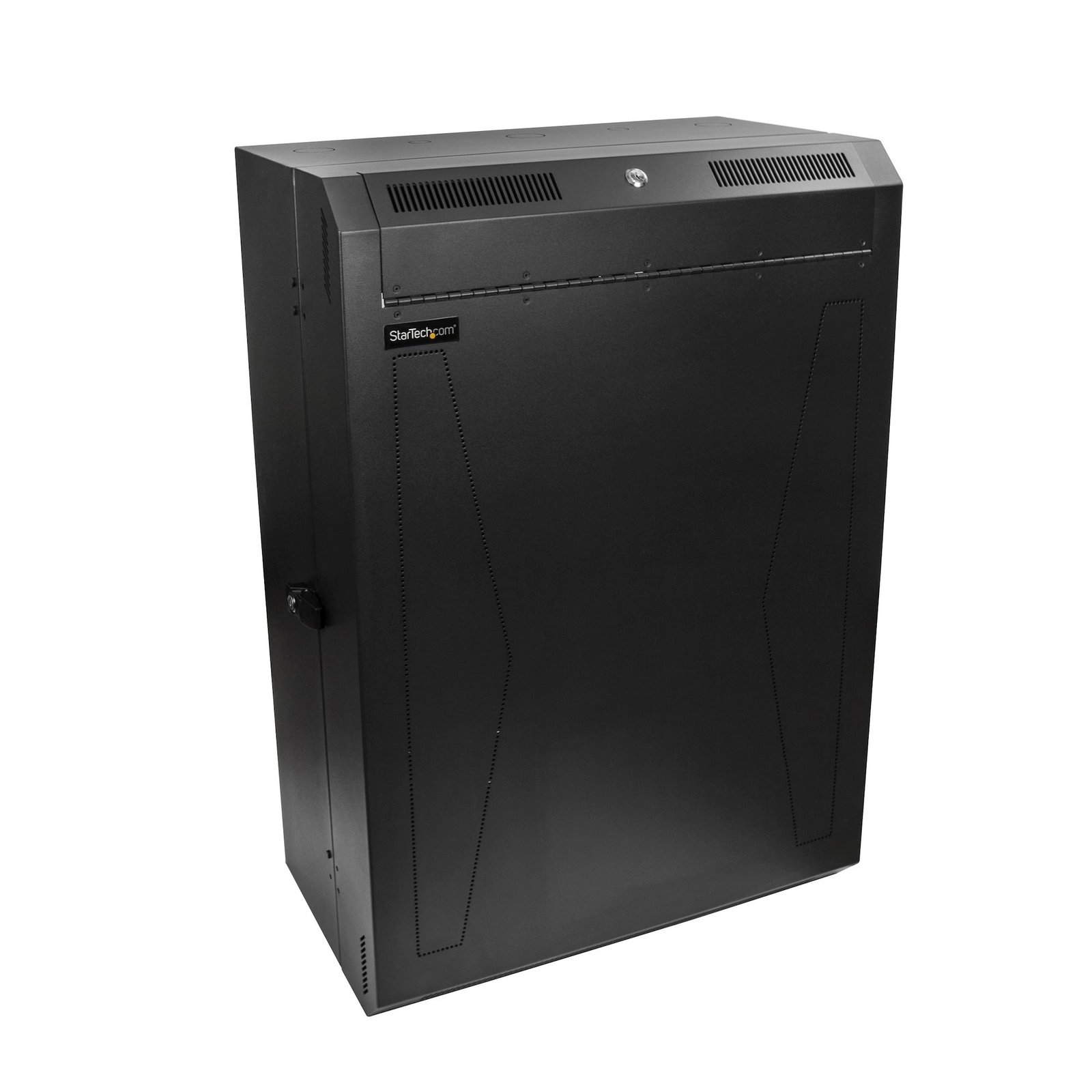

8U 19" Vertical Wall Mount Server Rack Cabinet - Low Profile (15") - 30" Deep Locking Network Enclosure w/2U for Switch Patch Panel Router

8U 19" Vertical Wall Mount Server Rack Cabinet - Low Profile (15") - 30" Deep Locking Network Enclosure w/2U for Switch Patch Panel Router Mounting IT/Data Cabinet Assembled

$620.11

Vertically wall-mount your server or networking equipment in this 8U network cabinet

SKU: RK830WALVS Category:

Specifications & Compliance

UPC
065030870054
Brand
StarTech.com
Included in Package
1 - wall-mount rack, 2 - door keys, 2 - front-panel keys, 32 - 12-24 screws, 32 - plastic washers, 1 - instruction manual
Shipping (Package) Weight
84.0 lb [38.1 kg]
Weight of Product
80.5 lb [36.5 kg]
Product Length
15.0 in [38.1 cm]
Product Width
25.3 in [64.3 cm]
Product Height
37.0 in [93.9 cm]
Package Depth
28.7 in [73 cm]
Package Width
18.5 in [47 cm]
Package Height
3.4 ft [1.0 m]
Color
Black
Warranty
5 Years
Package Quantity
1
Material
Steel
Industry Standards
EIA/ECA-310-E
U Height
8U
Wallmountable
Yes
Frame Type
Enclosed Cabinet
Maximum Mounting Depth
29.9 in [76 cm]
Rack Type
2-Post
Flat Pack (Assembly Required)
No
Mounting Hole Types
Threaded Hole
Mounting Rail Profile
C-Shape
Special Features
Adjustable Mounting Rails, Lockable Top Hatch, Ships Fully Assembled, Wall-Mountable
Internal Width
25.3 in [64.2 cm]
Internal Depth
14.8 in [37.6 cm]
Weight Capacity (No Casters)
198.5 lb [90 kg]
Front Door Construction
Steel
Front Door Features
Secure Key Lock with Reversible and Removable Front Door
Side Panel Construction
Steel
Fan Options
Two Optional Fans: 120 mm

Questions & Answers

How do I check if a StarTech.com shelf is compatible with my server rack?
A StarTech.com shelf will fit a server rack if the rack supports 19-inch standard mounting and the shelf depth is within the rack’s supported mounting depth range. Explanation: StarTech.com server racks use the industry-standard 19-inch width, so most shelves designed for 19-inch racks are physically compatible in width. However, compatibility depends primarily on mounting depth and mounting type. Mounting depth compatibility: For shelves that mount on all four posts (4-post racks or cabinet racks), the shelf depth must fall within the rack’s minimum and maximum mounting depth. Both values are listed in the Technical Specifications of the rack and shelf product pages. If the shelf depth exceeds or does not reach the supported range, the shelf cannot be installed. Front-mount shelves: For shelves that mount only on the front posts (2-post mounting), mounting depth is not a constraint. However, there must be sufficient rear clearance in the rack to accommodate the full depth of the shelf and any installed equipment. Accessory validation: If a shelf is listed under the “Accessories” tab on a specific StarTech.com server rack product page, it has been verified as compatible with that rack model.
