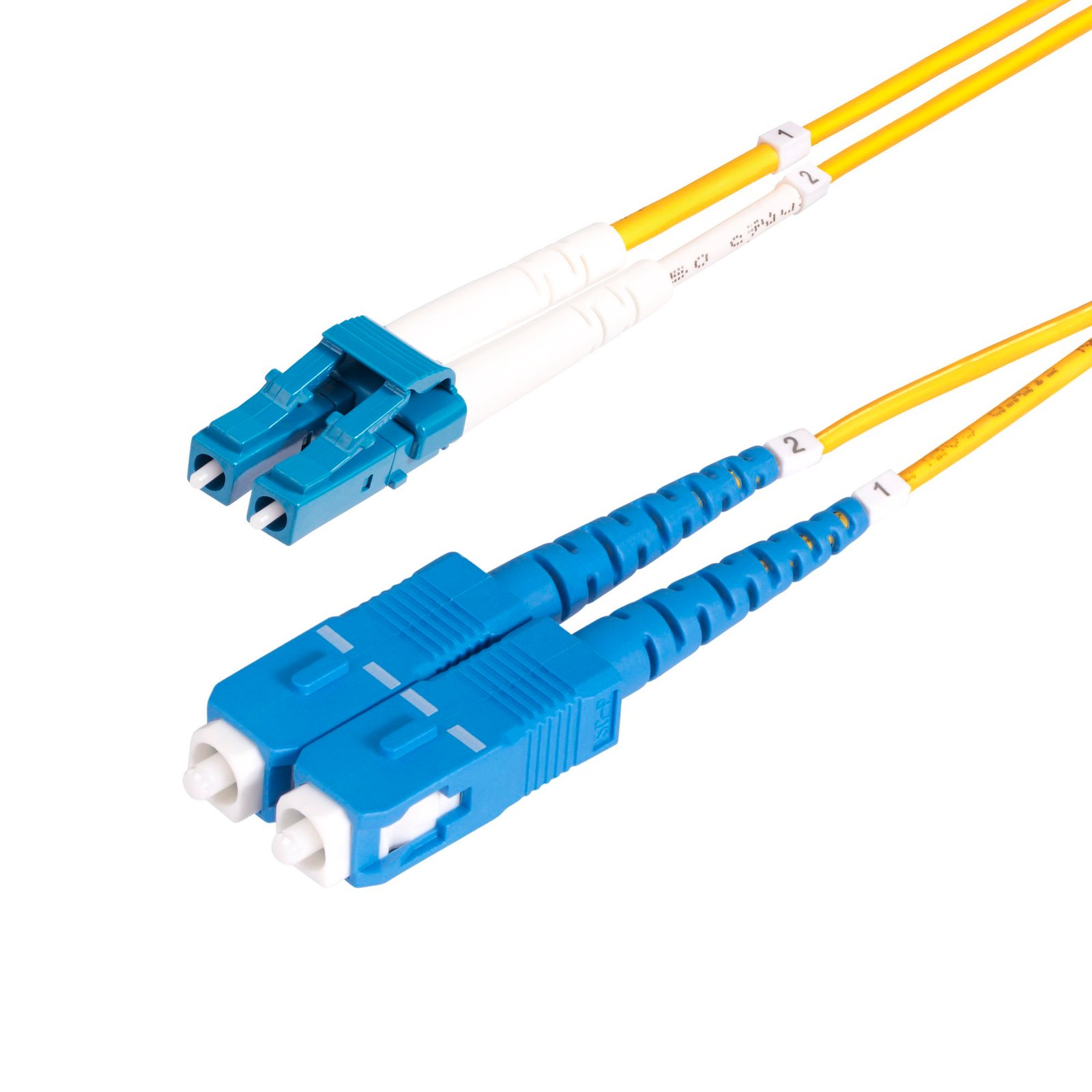

7m (22.9ft) LC to SC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125µm, 100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord

Specifications & Compliance

UPC

065030903301

Brand

StarTech.com

Included in Package

1 - 7m OS2 Single Mode Fiber Optic Cable - LC to SC, 1 - Test Report

Shipping (Package) Weight

2.5 oz [70 g]

Weight of Product

2.0 oz [58.0 g]

Product Length

23.0 ft [7.0 m]

Product Width

1.0 in [25.0 mm]

Product Height

0.4 in [9.9 mm]

Package Depth

7.9 in [20 cm]

Package Width

8.1 in [20.6 cm]

Package Height

1.1 in [28 mm]

Color

Yellow

Cable Length

23.0 ft [7 m]

Warranty

Lifetime

Connector 1

LC Duplex Fiber

Connector 1 (Quantity)

1

Connector 2

SC Duplex Fiber

Connector 2 (Quantity)

1

Operating Temperature

-20°C - 60°C (-4°F - 140°F)

Humidity

40% - 70%

Material

Polypropylene (PP)

Cable Jacket Material

Low Smoke Zero Halogen

Maximum Data Transfer Rate

100Gbps

Fire Rating

LSZH Rated (Low Smoke Zero Halogen)

Cable Rating

10Gbps / 40Gbps / 100Gbps

Cable OD

0.1 in [2 mm]

Connector Style

Straight

Fiber Type

Single Mode

General Specifications

Insertion Loss: ≤ 0.3dB <br> Return Loss: ≥ 55dB </br>

Active or Passive Adapter

Passive

Wavelength

1260nm to 1625nm

Fiber Size

9/125

Fiber Classification

OS2

Fiber Cable Type

Duplex
