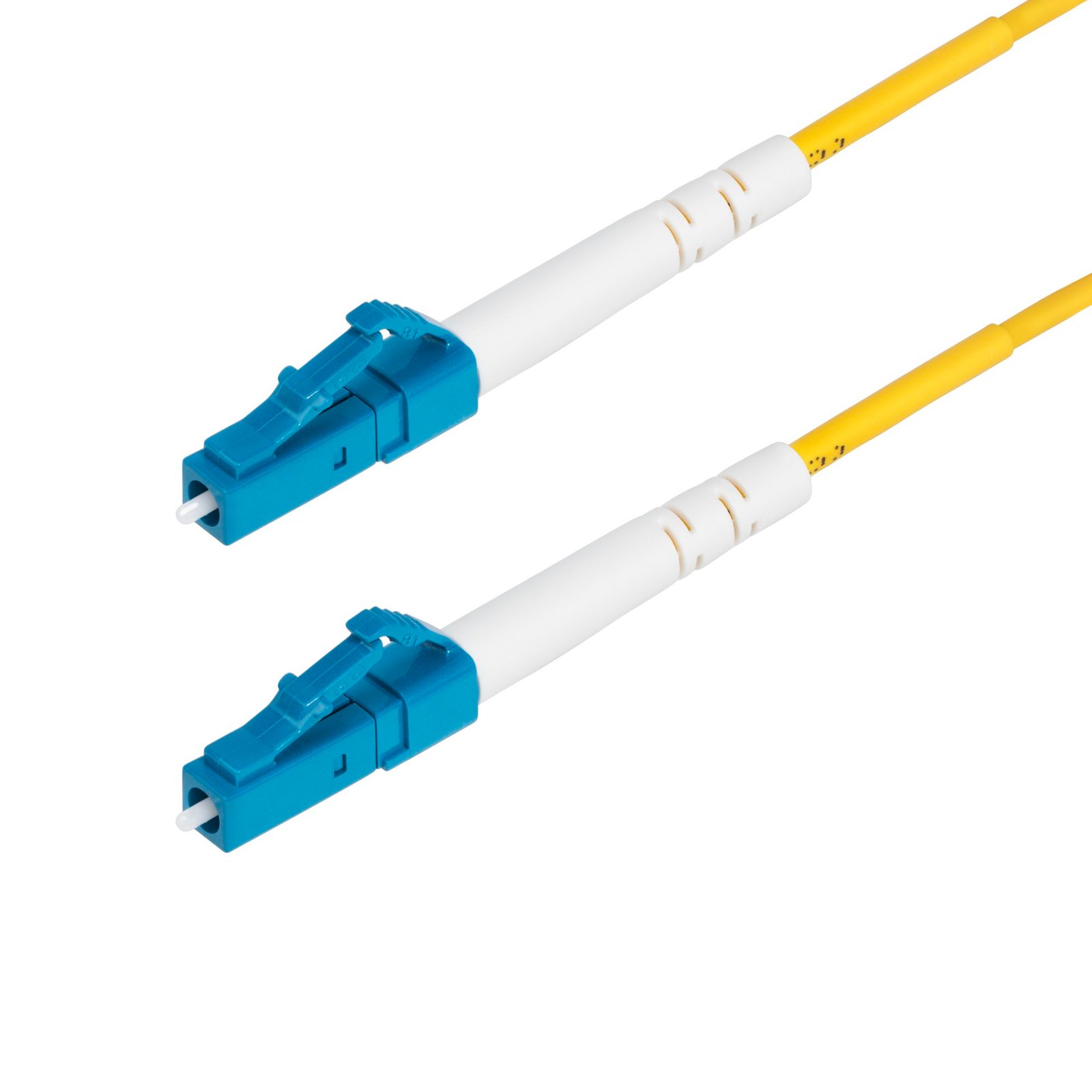

5m (16.4ft) LC to LC (UPC) OS2 Single Mode Simplex Fiber Optic Cable, 9/125µm, 40G/100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord

Specifications & Compliance

UPC

065030906678

Brand

StarTech.com

Included in Package

1 - Single Mode Fiber Cable - LC to LC, 1 - Test Report

Shipping (Package) Weight

1.1 oz [30 g]

Weight of Product

2.5 oz [71 g]

Product Length

16.4 ft [5.0 m]

Product Width

0.2 in [4.6 mm]

Product Height

0.4 in [9.1 mm]

Package Depth

6.5 in [16.4 cm]

Package Width

6.5 in [16.6 cm]

Package Height

0.6 in [15 mm]

Color

Yellow

Cable Length

16.4 ft [5 m]

Warranty

Lifetime

Connector 1

LC Simplex Fiber

Connector 1 (Quantity)

1

Connector 2

LC Simplex Fiber

Connector 2 (Quantity)

1

Operating Temperature

-20°C - 60°C (-4°F - 140°F)

Humidity

40% - 70%

Material

Polypropylene (PP)

Cable Jacket Material

Low Smoke Zero Halogen

Maximum Data Transfer Rate

100Gbps

Fire Rating

LSZH Rated (Low Smoke Zero Halogen)

Cable Rating

1Gbps / 10Gbps / 40Gbps / 100Gbps

Cable OD

0.1 in [2 mm]

Connector Style

Straight

Fiber Type

Single Mode

General Specifications

Insertion Loss: ≤ 0.3dB <br> Return Loss: ≥ 55dB </br>

Active or Passive Adapter

Passive

Wavelength

1260nm to 1625nm

Fiber Size

9/125

Fiber Classification

OS2

Fiber Cable Type

Simplex
