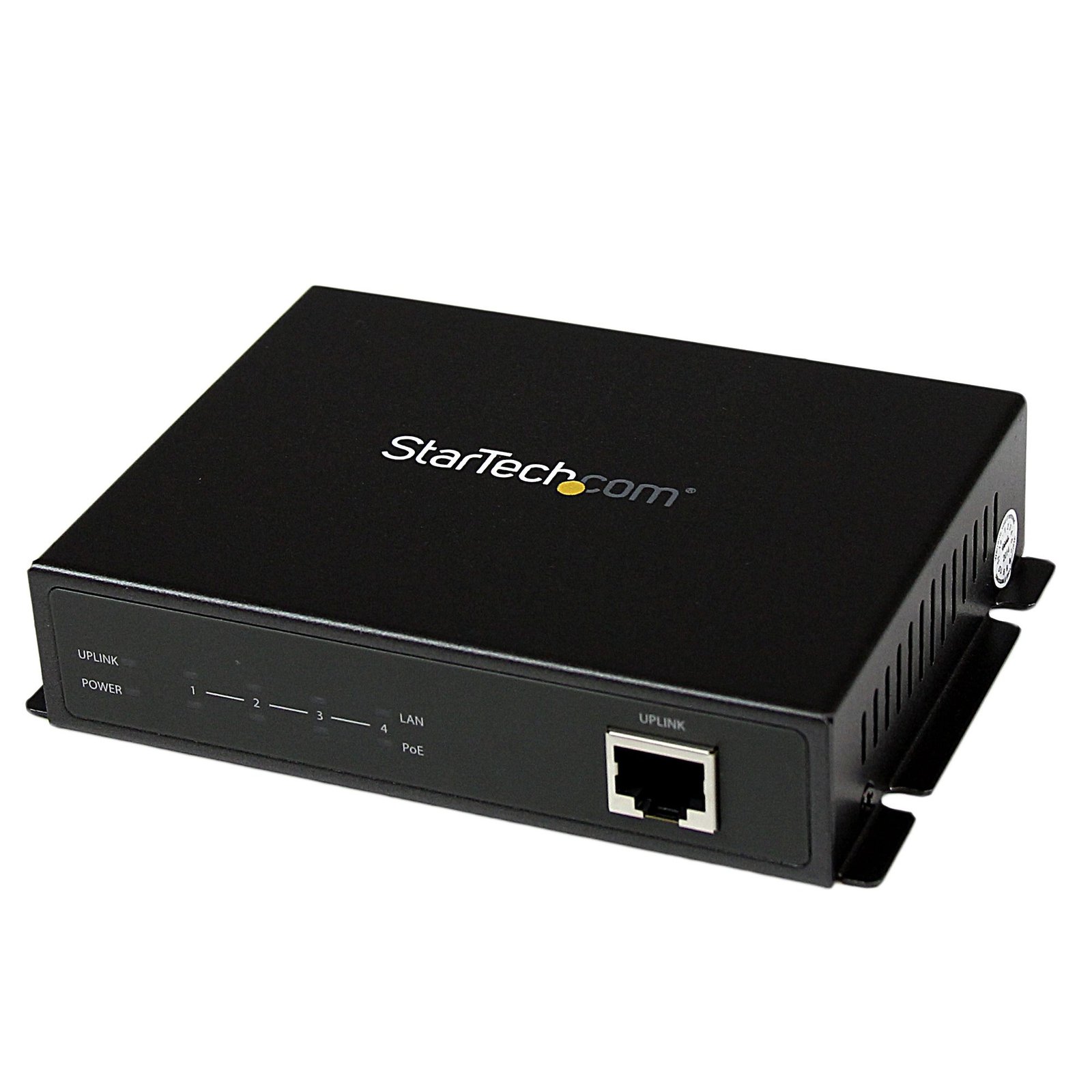

5 Port Unmanaged Industrial Gigabit PoE Switch with 4 Power over Ethernet ports

5 Port Unmanaged Industrial Gigabit PoE Switch with 4 Power over Ethernet ports

$320.99

Connect Gigabit Ethernet and power to 4 PoE-enabled devices, with 15.4W per-port output

SKU: IES51000POE Category:

Specifications & Compliance

UPC
065030851916
Brand
StarTech.com
Included in Package
1 - Gigabit Ethernet PoE Switch, 4 - Mounting Screws, 1 - Set, Rubber Feet, 1 - Universal Power Adapter, 3 - Power Cords (NA, EU, UK, ANZ), 1 - Instruction Manual
Shipping (Package) Weight
3.1 lb [1.4 kg]
Weight of Product
12.9 oz [366.0 g]
Product Length
5.1 in [13.0 cm]
Product Width
3.5 in [90.0 mm]
Product Height
1.1 in [28.0 mm]
Package Depth
7.9 in [20.1 cm]
Package Width
14.6 in [37 cm]
Package Height
2.9 in [74 mm]
Color
Black
Warranty
2 Years
Connector 1
RJ-45
Connector 1 (Quantity)
5
Package Quantity
1
Operating Temperature
0°C to 50°C (32°F to 122°F)
Humidity
10~90% RH (Non-Condensing)
Material
Steel
Maximum Data Transfer Rate
2 Gbps (Full-Duplex)
Industry Standards
IEEE 802.3af Power Over Ethernet, IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX/FX, IEEE 802.3ab 1000BASE-TX, IEEE 802.3x
Power Source
AC Adapter Included
Chipset ID
Realtek - RTL8370
Input Voltage
100 - 240 AC
Output Voltage
48 DC
Power Consumption
62
LED Indicators
1 - Power, 1 - Uplink, 4 - LAN, 4 - PoE
Number of Ports
5
Input Current
2 A
Output Current
1.35
Plug Type
M
Compatible Networks
10/100/1000 Mbps
Center Tip Polarity
Positive
Auto MDIX
Yes
Full Duplex Support
Yes
Flow Control
Half-duplex back-pressure and IEEE802.3x full-duplex
Buffer Size
104 KB
Patents and Licenses
The following patents are licensed for this product. This list might not be all inclusive.<br> • United States Patent No. 5,406,260 (expired)<br> • United States Patent No. 6,650,622<br> • United States Patent No. 7,457,250<br> • United States Patent No. 8,155,012<br> • United States Patent No. 8,902,760<br> • United States Patent No. 8,942,107<br> • United States Patent No. 9,019,838<br> • United States Patent No. 9,049,019<br> • United States Patent Application No. 14/695,456<br> • United States Patent Application No. 14/726,940
Switching Architecture
Store-and-Forward

Questions & Answers

What DC barrel connector power plug types do StarTech.com products use, and what are their dimensions?
StarTech.com DC barrel connector plug types are defined in the “Plug Type” field of the technical specifications, using a letter code that specifies the connector’s outer diameter (OD) and inner diameter (ID) in millimeters for power adapter compatibility. Explanation: In StarTech.com technical specifications, the “Plug Type” field is a standardized identifier for the exact DC barrel connector size required to power a product. Each plug type is assigned a letter code that corresponds to a specific combination of outer diameter (OD) and inner diameter (ID), measured in millimeters. Common DC barrel plug type dimensions Plug Type OD ID A 2.35 mm 0.7 mm B 4.0 mm 1.7 mm C 4.75 mm 1.7 mm H 3.4 mm 1.3 mm L 5.0 mm 2.5 mm M 5.5 mm 2.1 mm N 5.5 mm 2.5 mm The DC barrel connector plug type must match both the outer diameter and inner diameter exactly. A mismatch between the StarTech.com product requirement and the power adapter connector can prevent proper fit or stable power delivery, which may result in device startup failure or intermittent operation. The plug type defines only the physical connector size. The plug type does not define electrical power requirements such as voltage, current, or polarity. The power adapter used with a StarTech.com product must match the product’s specified electrical requirements. Using an incompatible power adapter can cause device malfunction or permanent damage. This standardized DC barrel connector plug type system enables IT professionals and procurement teams to verify connector dimensions, ensure power adapter compatibility, standardize hardware deployments, and identify the correct replacement power supply for StarTech.com products.
