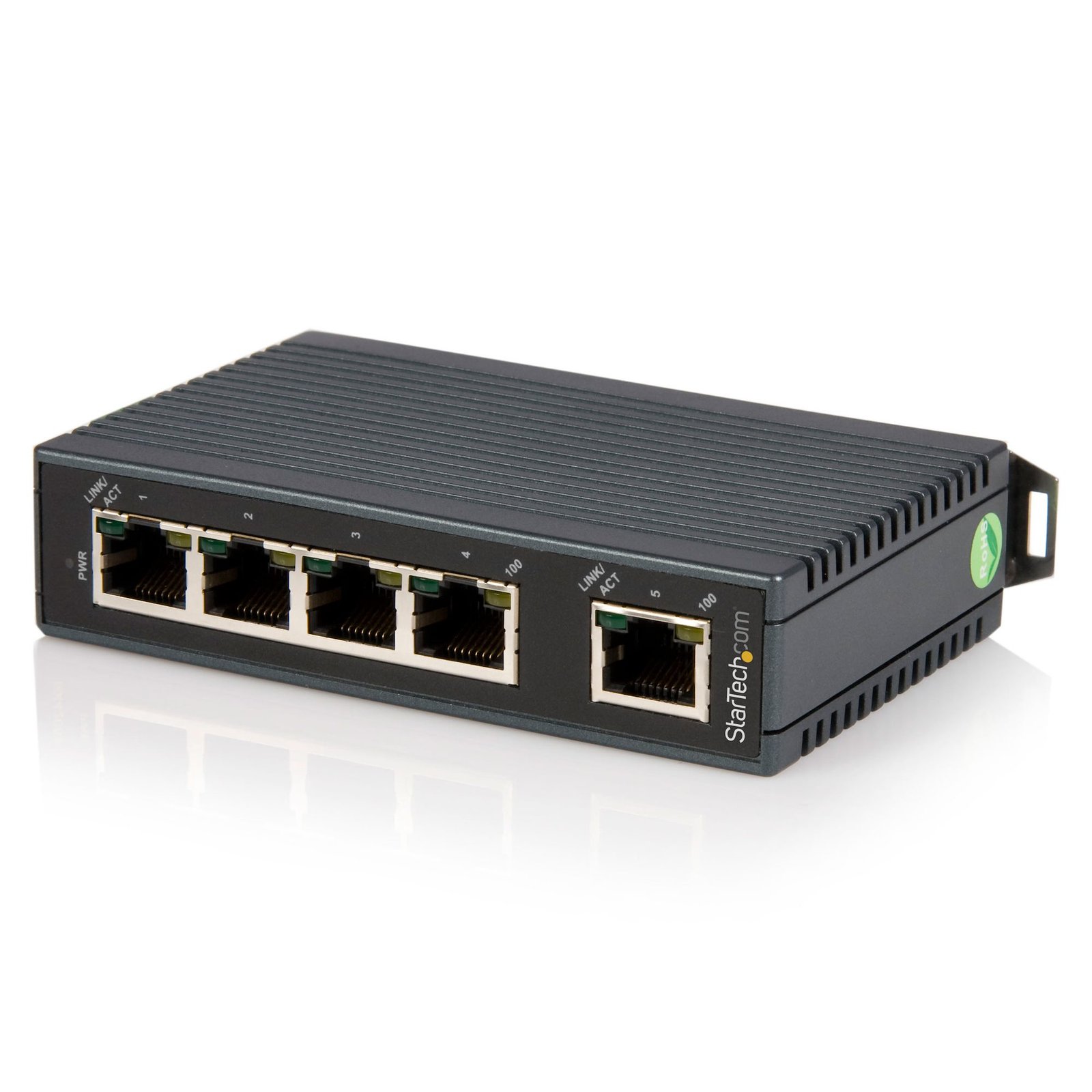

5-Port Industrial Ethernet Switch - DIN Rail Mountable - TAA

Specifications & Compliance

UPC

065030859745

Brand

StarTech.com

Included in Package

1 - 5 Port Ethernet Switch (w/ Attached DIN Rail Bracket), 1 - Terminal Block, 1 - Instruction Manual CD

Shipping (Package) Weight

10.1 oz [286 g]

Weight of Product

5.3 oz [150 g]

Product Length

2.8 in [70 mm]

Product Width

1.0 in [25 mm]

Product Height

4.3 in [11 cm]

Package Depth

7.0 in [17.7 cm]

Package Width

7.9 in [20.1 cm]

Package Height

3.2 in [81 mm]

Color

Black

Warranty

2 Years

Connector 1

RJ-45

Connector 1 (Quantity)

5

Package Quantity

1

Connector 2

Terminal Block (3 Wire)

Connector 2 (Quantity)

1

Operating Temperature

-10°C to 60°C (14°F to 140°F)

Storage Temperature

-25°C to 85°C (-13°F to 185°F)

Humidity

5~95% RH (Non-Condensing)

Material

Plastic

Maximum Data Transfer Rate

200 Mbps (Full-Duplex)

Industry Standards

IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3az (Energy-Efficient Ethernet), IEEE 802.1P Quality of Service (QoS)

Power Source

Terminal Block

Input Voltage

12 ~ 48 DC

Output Voltage

12V DC

Power Consumption

2.12W Max

MTBF

1,179,133 Hours

LED Indicators

1 - Power, 5 - Link/Activity, 5 - Activity (100 Mbps)

Number of Ports

5

Interface

RJ45 (10/100 Ethernet)

Compatible Networks

10/100 Mbps

Maximum Cable Length

328.1 ft [100 m]

Auto MDIX

Yes

Full Duplex Support

Yes

Jumbo Frame Support

No

Flow Control

IEEE 802.3x Full-Duplex

Surge Protection

ESD: EN61000-4-2 <br/> Surge: EN61000-4-5

Buffer Size

56 KB

Regulatory Approvals

EN61000-6-2<br/> EN61000-6-4<br/> EN61000-4-3 (Radiated RFI Standards) <br/> EN61000-4-4 (Burst Standards)<br/> EN61000-4-6 (Induced RFI Standards)<br/> EN61000-4-8 (Magnetic Field Standards)<br/> IEC60068-2-6 Fc (Vibration)<br/> IEC60068-2-27 Ea (Shock)<br/>

Switching Architecture

Store-and-Forward <br />

Auto-Negotiation

Yes
