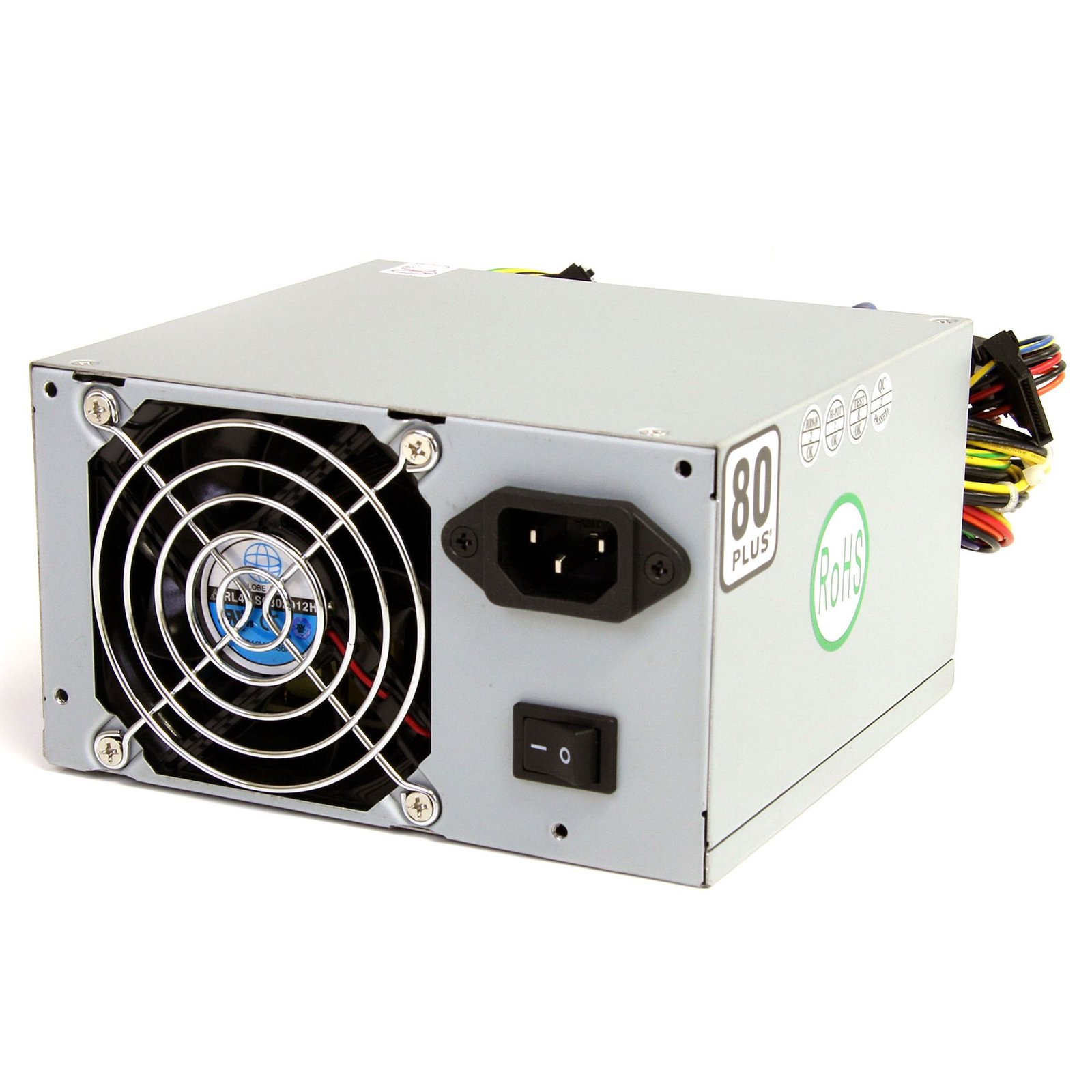

430 Watt ATX12V 2.3 80 Plus Computer Power Supply Active PFC

Specifications & Compliance

UPC

065030839303

Brand

StarTech.com

Included in Package

1 - 430 Watt ATX Power Supply, 2 - Power Cords - (NA/UK), 1 - Instruction Manual

Shipping (Package) Weight

5.1 lb [2.3 kg]

Weight of Product

3.8 lb [1.7 kg]

Product Length

5.5 in [14 cm]

Product Width

5.9 in [15 cm]

Product Height

3.4 in [86 mm]

Package Depth

4.0 in [10.2 cm]

Package Width

9.4 in [23.9 cm]

Package Height

8.7 in [22 cm]

Color

Gray

Warranty

3 Years

Connector 1

ATX Power (24-Pin, 3.3V / 5V / 12V)

Connector 1 (Quantity)

1

Connector 2

ATX 12V EPS Power (4+4 pin)

Connector 2 (Quantity)

1

Operating Temperature

0°C to 40°C (32°F to 104°F) @ 90% Load

Storage Temperature

-20°C to 80°C (-4°F to 176°F)

Humidity

5~90% RH

Material

Zinc-Plated Casing

Input Voltage

110V-240V AC

Connector 3

PCIe Power (6-Pin, 12V, 75W)

Connector 3 (Quantity)

2

MTBF

100,000 Hrs

Input Current

10A @ 115VAC / 5A @ 230VAC

Connector 4

SATA (15-Pin)

Connector 4 (Quantity)

5

Connector 5

LP4 / Molex Power (4-Pin, 5V / 12V)

Connector 5 (Quantity)

3

Connector 6

SP4 / Floppy Power (4-Pin, 5V / 12V)

Connector 6 (Quantity)

1

Fan Bearing Type

Sleeve Bearing

Fans

1 - 80 mm

Noise Level

31.3 dBa

Air Flow Rate

43.94 CFM

Fan RPM

3000 RPM +/-10%
