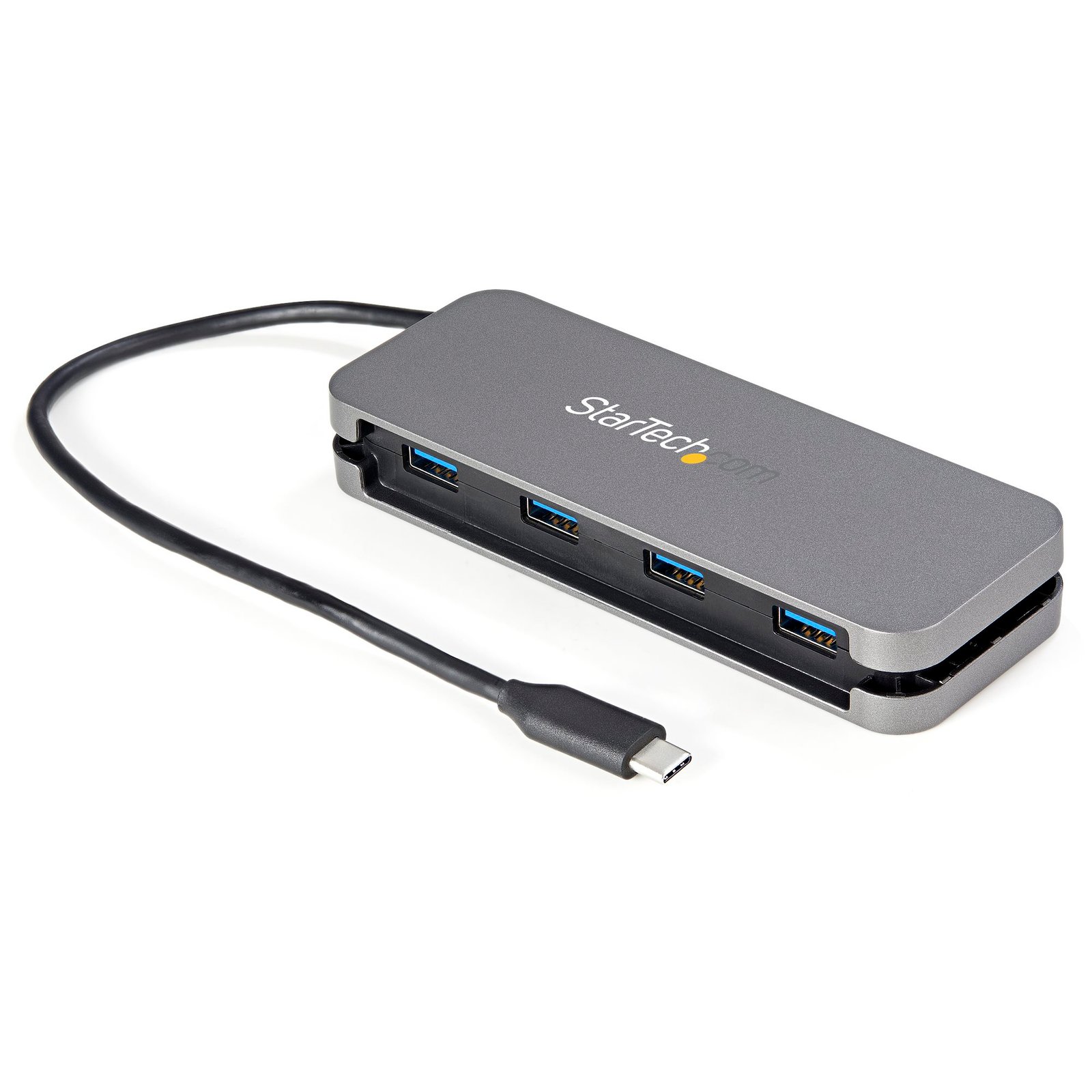

4 Port USB C Hub - 4x USB-A - USB 3.0 Type-C Hub - USB 3.2 Gen 1 (5Gbps) - Bus Powered Portable USB-C to USB-A Adapter Laptop Hub - 11.2"

4 Port USB C Hub - 4x USB-A - USB 3.0 Type-C Hub - USB 3.2 Gen 1 (5Gbps) - Bus Powered Portable USB-C to USB-A Adapter Laptop Hub - 11.2" (28.5cm) Cable w/ Cable Management

$42.01

USB C to USB Hub | SuperSpeed USB 5Gbps (USB 3.2 Gen 1) | Built-in 11" Host Cable

SKU: HB30CM4AB Category:

Specifications & Compliance

UPC
065030883450
Brand
StarTech.com
Included in Package
1 - USB-C Hub
Shipping (Package) Weight
5.2 oz [146 g]
Weight of Product
2.6 oz [73.0 g]
Product Length
5.3 in [13.5 cm]
Product Width
2.0 in [50.0 mm]
Product Height
0.8 in [20.0 mm]
Package Depth
6.8 in [17.2 cm]
Package Width
5.7 in [14.5 cm]
Package Height
1.3 in [33 mm]
Color
Black & Space Gray
Cable Length
11.0 in [28 cm]
Warranty
2 Years
Connector 1
USB-C (5Gbps, 4.5W)
Connector 1 (Quantity)
1
Package Quantity
1
Connector 2
USB-A (5Gbps, 4.5W)
Connector 2 (Quantity)
4
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Humidity
0% to 95% (non-condensing) at 25°C (77°F)
Material
Plastic
Maximum Data Transfer Rate
5 Gbps (USB 3.2 Gen 1)
Industry Standards
USB 3.2 - Backward compatible with USB 3.0, 2.0 and 1.1
Power Source
Bus Powered
Chipset ID
Realtek - RTS5411E
Power Delivery
No PD Pass-Through
Input Voltage
5V DC
Output Voltage
5 DC
Number of Ports
4
Interface
USB 3.2 Gen 1
Bus Type
USB 3.2 Gen 1 (5 Gbps)
Type and Rate
USB 5Gbps
UASP Support
Yes
Fast-Charge Port(s)
No
Form Factor
Compact
USB-C Host Connection
Yes
USB-C Device Port(s)
No
Total Available Power Output
Up to 15W<br> <i>Total available power is dependent on the source</i>

Questions & Answers

Why are my USB peripherals disconnecting on high power draw?
This product features Overcurrent Protection on the downstream USB ports and the device may cut power to peripherals connected to the ports if they exceed the maximum allotted current. The USB ports support the respective rated current in Table A below, however the overall device power output is limited by the host or (if included) power connection. Table A. USB port voltage and current ratings. Specification Connector Output Voltage (VDC) Rated Current (mA) USB 1.1 USB-A 4.40 - 5.25 500 USB 2.0 USB-A 4.40 - 5.25 500 USB 3.2 (1 lane) USB-A; USB-C* 4.75 - 5.50 900 USB 3.2 (2 lanes) USB-A; USB-C* 4.75 - 5.50 1500 BC 1.2 USB-A; USB-C* 4.75 - 5.50 1500 USB-C (1.5A) USB-C* 4.75 - 5.50 1500 USB-C (3A) USB-C* 4.75 - 5.50 3000 *USB-C spec supersedes the USB 3.2 spec for current limitations. If Overcurrent Protection is activated but then the current draw on the downstream device drops back below an acceptable level, the USB device will reconnect. This may result in a continuous connection/disconnection cycle. To stop the cycle, disconnect the device from the product for 15-20 seconds and then reconnect it to a different USB port. If the connection/disconnection cycle occurs again, even when device is connected to a different or higher powered USB port on the product, then the USB device is not compatible with this product.
