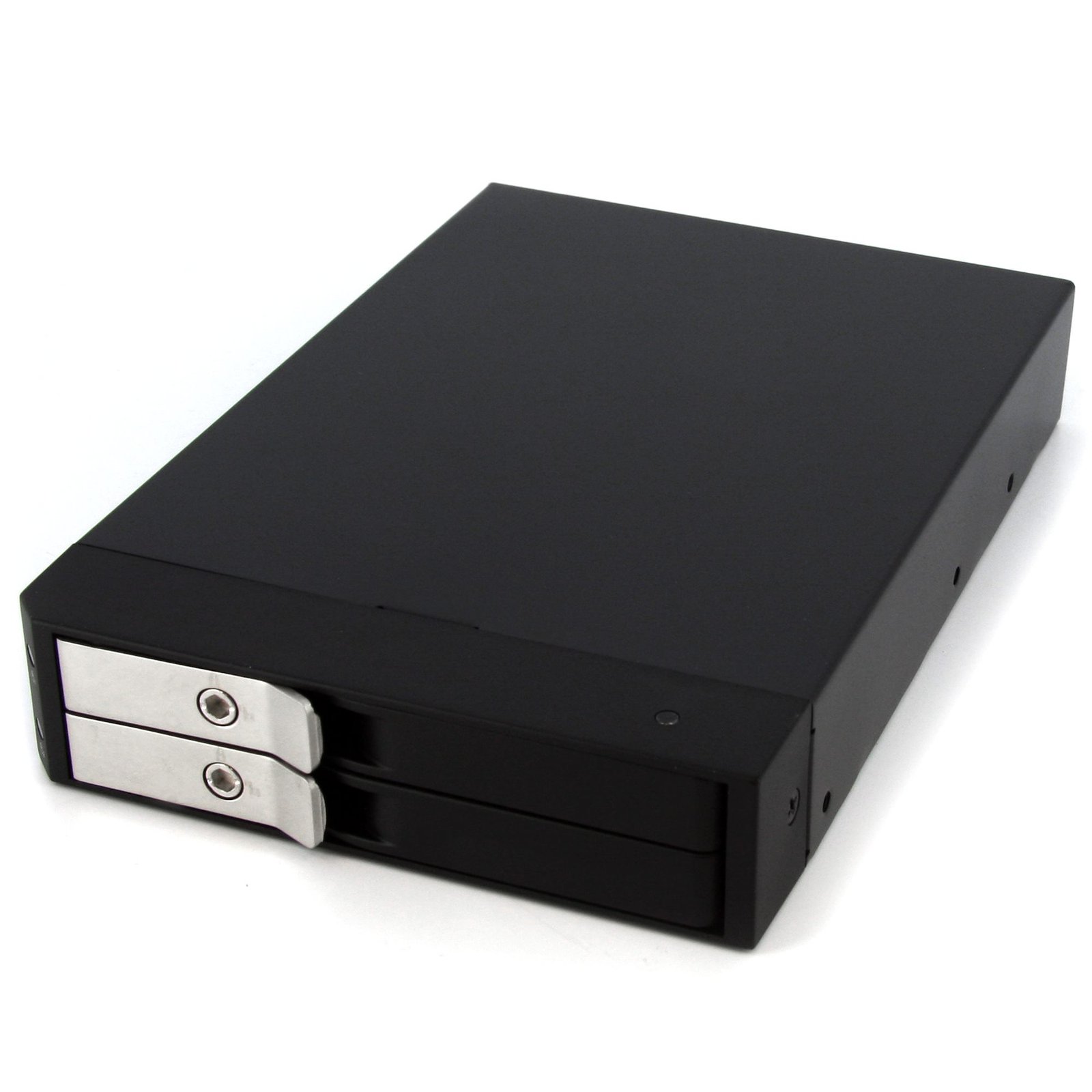

3.5in Trayless Hot Swap SATA Mobile Rack for Dual 2.5in Hard Drives
$52.99
Easily connect and swap two 2.5in SATA hard drives or SSDs through a single 3.5in front bay
Specifications & Compliance
- UPC
- 065030848466
- Brand
- StarTech.com
- Included in Package
- 1 - Dual 2.5in Mobile Rack, 2 - SATA data cables, 2 - Keys, 1 - Screw Kit, 1 - Instruction Manual
- Shipping (Package) Weight
- 12.1 oz [344 g]
- Weight of Product
- 8.8 oz [250 g]
- Product Length
- 5.9 in [15 cm]
- Product Width
- 3.9 in [100 mm]
- Product Height
- 1.0 in [25 mm]
- Package Depth
- 6.5 in [16.5 cm]
- Package Width
- 5.5 in [14 cm]
- Package Height
- 1.4 in [36 mm]
- Color
- Black
- Warranty
- 2 Years
- Connector 1
- SATA (7-Pin + 15-Pin)
- Connector 1 (Quantity)
- 2
- Package Quantity
- 1
- Operating Temperature
- 5°C to 70°C (41°F to 158°F)
- Storage Temperature
- -40°C to 80°C (-40°F to 176°F)
- Humidity
- 8~90% RH
- Material
- Steel and Plastic
- LED Indicators
- 2 - Drive Power/Activity (Blue-Power, Red-Activity)
- System and Cable Requirements
- Available 3.5 inch front bay, 2 x SATA data ports, 1 x SATA power from system PSU
- Host Connector 1
- SATA (7-Pin)
- Host Connector 1 (Quantity)
- 1
- Host Connector 2 (Quantity)
- 1
- Compatible Drive Types
- SATA
- Number of Drives
- 2
- Drive Size
- 2.5in
- Insertion Rating
- 15,000 Cycles
- Hot Swap Capability
- Yes
- Max Drive Height
- 0.4 in [9.5 mm]
- Front Door Key Lock
- Yes
- Regulatory Approvals
- UL94 V-0 Rated Plastic
Questions & Answers
Everything is hooked up, but nothing is working. What do I do?
When you troubleshoot issues with a hard drive rack, there are some quick tests that you can complete to rule out potential problems. You can test to make sure that the following components are working correctly and are not the source of the issue: SATA and SAS cables Hard drives Hard drive rack To test your setup components, try the following: Use the cables, hard drives, and hard drive rack in another setup to see if the problem is with the components or the setup. Use a different cable, hard drive, and hard drive rack in your setup to see if the problem persists. Ideally, you should test a component that you know works in another setup. When you test the hard drive and hard drive rack, it is recommended that you do the following: To check Disk Management , press the Windows key + R , type diskmgmt.msc , and press Enter . Check to see if your hard drive is listed. If the hard drive is listed with unallocated space, it needs to be formatted. Right-click unallocated and click New Simple Volume . Follow the on-screen instructions to complete the reformatting. Note: Formatting a hard drive erases all of the data on it. Make sure that you back up all of your data before you reformat the hard drive. If the hard drive is listed as healthy but does not have a drive letter assigned to it, for example, C:, right-click healthy and click Change Drive Letter and Paths . Click Add , assign a drive letter, and click OK . Note: A formatted hard drive will not show up in Computer or My Computer until it has a drive letter assigned to it.
Can I hot-swap SATA drives with this mobile rack?
Yes, this mobile rack does support hot-swapping of SATA drives. To use this feature, it is required that the SATA port is set to Advanced Host Controller Interface (AHCI) mode and hot-swapping is enabled. On most motherboards, this is performed within the Basic Input/Output System (BIOS) or the Unified Extensible Firmware Interface (UEFI). If you are using a SATA controller card, consult the motherboard manufacturer's technical documentation for the correct steps to accomplish this.
