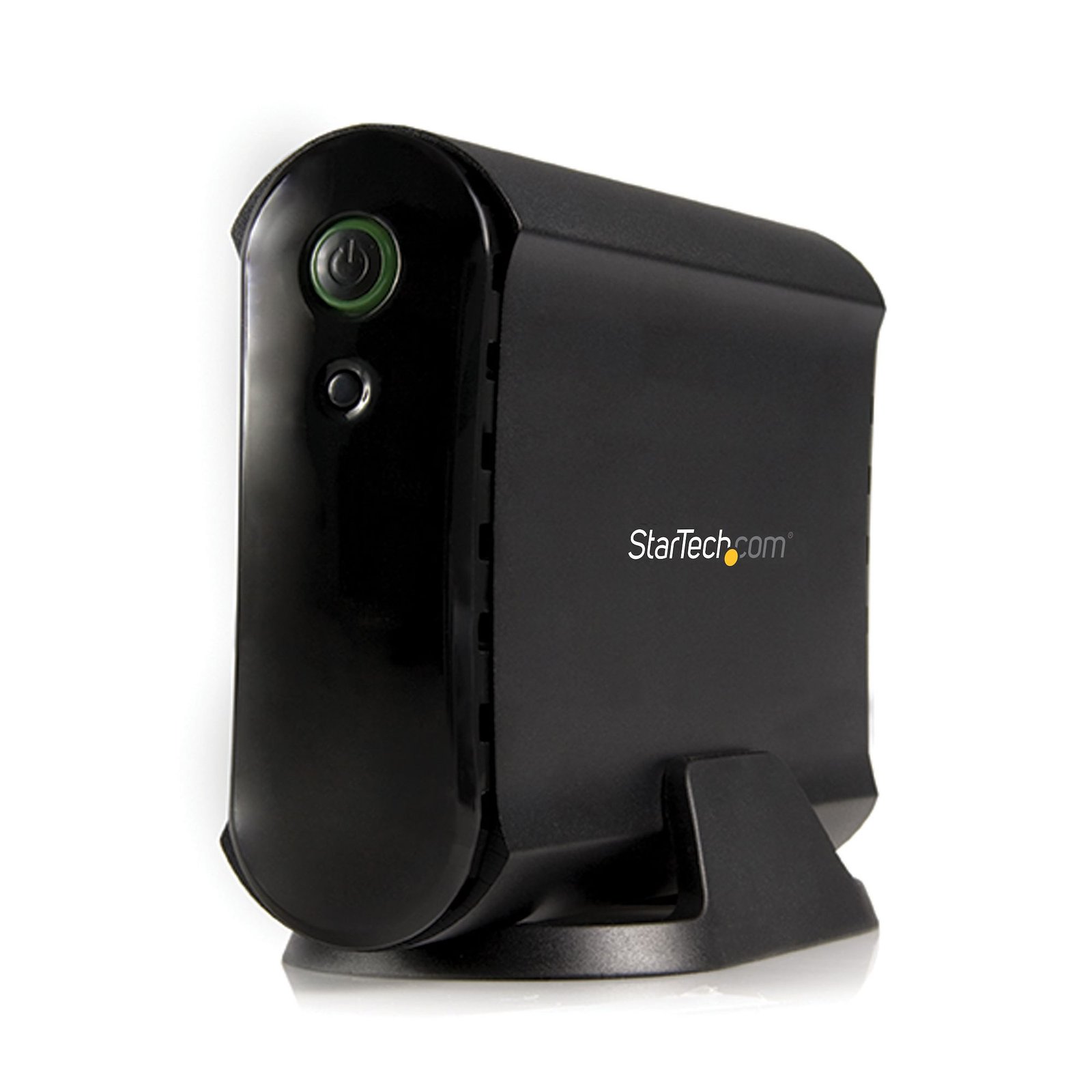

3.5in Black eSATA USB 2.0 to IDE SATA External Hard Drive Enclosure

Questions & Answers

My hard drive accessory is not detecting my IDE hard drive. What do I do?
Note: If you are using an IDE hard drive 1 Gigabyte in size or smaller, refer to the following FAQ: http://www.startech.com/faq/hard_drive_accessories_minimum_ide_hard_drive_size If you are unable to detect your IDE (PATA) drive using a StarTech.com product, you may need to change the jumper settings on your drive. The jumpers switch the drive between Master, Slave, and Cable Select for most drives. A jumper is a small plastic piece that slides on top of two pins to electrically short them together. When it does not mention what IDE drive configuration is required or if there is only one drive in the setup, the drive should be configured as Master . If Master is not working, try using the drive in Cable Select . There is no standard position for the jumpers on IDE drives. On some drives, the jumper diagram is on the label that is on the top of the drive. On other drives, there are markings on the circuit board for CS , MA , and SL , which means a jumper shorts the pins vertically in that position. For more information, refer to the documentation provided by the manufacturer.

Everything is hooked up, but nothing is working. What do I do?
When you troubleshoot issues with a hard drive enclosure, there are some quick tests that you can complete to rule out potential problems. You can test to make sure that the following components are working correctly and are not the source of the issue: Cables Hard drives Hard drive enclosure To test your setup components, try the following: Use the cables, hard drives, and hard drive enclosure in another setup to see if the problem is with the components or the setup. Use a different cable, hard drive, and hard drive enclosure in your setup to see if the problem persists. Ideally, you should test a component that you know works in another setup. When you test the hard drive and hard drive enclosure, it is recommended that you do the following: To check Disk Management , press the Windows key + R , type diskmgmt.msc , and press Enter . Check to see if your hard drive is listed. If the hard drive is listed with unallocated space, the hard drive needs to be reformatted. Right-click unallocated and click New Simple Volume . Follow the on-screen instructions to complete the reformatting.​ Note: Formatting a hard drive erases all of the data on it. Make sure that you back up all of your data before you reformat the hard drive.​ If the hard drive is listed as healthy but does not have a drive letter, for example, C:, right-click healthy and click Change Drive Letter and Paths . Click Add , assign a drive letter, and click OK . Note: A formatted hard drive will not show up in Computer or My Computer until it has a drive letter assigned to it.

How can I check if my USB device is properly detected by Mac OS?
To confirm that the Mac OS detects your USB device, complete the following: Click the Apple icon. Click About This Mac . Click More Info or System Report . Under the appropriate heading, confirm that your USB device is listed and that there isn't an error. For example, a network card would be under Ethernet Cards . You may need to refresh the System Information page after you plug in your device. To do so, press Command + R with the System Information page open. Your USB device is listed according to the name of the chipset. To determine the name of the chipset of your USB device, navigate to www.StarTech.com and look on the Technical Specifications tab for your product.

Is there a minimum supported size or type of IDE hard drive for this hard drive accessory?
Yes, this hard drive accessory does not support older IDE hard drives, typically those with capacities under 1 GB or manufactured before the mid‑to‑late 1990s. Explanation: This hard drive accessory is not compatible with certain legacy IDE hard drives due to outdated hardware and interface standards. Unsupported drives are generally those under 1 GB in capacity or produced before the mid‑to‑late 1990s. These drives may not be detected for several reasons, including: The drive operates in PIO (Programmed Input/Output) mode instead of DMA (Direct Memory Access). The drive is non‑ATA or uses an ATA standard earlier than ATA‑4, which is not supported by modern chipsets. The drive uses a sector size other than the standard 512 bytes. There is no workaround to enable compatibility with these older drives. Accessing them requires legacy hardware, such as an older system or an IDE controller card that supports these standards. For additional guidance on IDE drive detection, please refer to: http://www.startech.com/faq/hard_drive_accessories_ide_detection

How do I initialize a brand new hard drive in Windows or Mac OS?
Windows 10 Before you can access a new or formatted drive in your operating system, you need to initialize it first and then create a partition on the drive. A partition defines an area of the drive to use for storing data. The partition uses a file system (for example, ex-FAT, NTFS, and so on). Initialize a drive Note: You typically only need to initialize a drive if the drive is new. If you cannot find an uninitialized drive in Disk Management, skip the following steps and try to partition your device. Press the Windows key + R , type compmgmt.msc , and click Run to open Computer Management . Navigate to Disk Management . When prompted to, initialize your disk(s). If you are running Windows ® 7 or later and are using a drive larger than 2TB, initialize the disk(s) with GPT. If you are running an earlier version of Windows, initialize the disk(s) with MBR. For more information, visit the following FAQ: https://www.startech.com/en-us/support/faqs/technical?topic=harddrives#mbr-vs-gpt . Click OK . Create a partition in a drive Note: The following steps create an NTFS partition that uses the entire drive space. To use a different file system, select a different option in step 6. Right-click Unallocated or RAW volume , and select New Simple Volume . In the New Partition Wizard , click Next . Select Primary partition . Leave the partition size set to default , and click Next . Assign a drive letter or leave it set to the default, and click Next . Enter the following settings to format the partition: In the File System field, enter NTFS . Set the Allocation unit size to Default . In the Volume label field, enter < your name/reference >. Select the Perform a quick format check box. Clear the Enable file and folder compression check box. Click Next > Finish . The new drive should appear in Windows Explorer. Mac OS Before you can access a new or formatted drive in your operating system, you need to initialize it first and then create a partition on the drive. A partition defines an area of the drive to use for storing data. The partition uses a file system (for example, HFS+, ex-FAT, NTFS, and so on). Initialize a drive Mac OSX detects a drive that needs to be initialized and automatically prompts you to initialize the drive. If you are prompted to initialize the drive, click Initialize . If you are not prompted to initialize the drive and you cannot find the drive in Finder , you will need to create a partition on the drive. Create a partition on a drive Note: The following steps create an HFS+ (Mac OS Extended (Journaled)) partition that uses the entire drive space. To create a partition on a new drive, complete the following: Open Finder . Navigate to Applications and click Utilities . Open Disk Utility . Select the new drive and click the Partition tab. Click Options and verify that it is set to GUID Partition Table . Enter a name for the partition. Click Partition . The drive should now be accessible in Finder. For products related to this article, click here .

What is the difference between initializing, partitioning, and formatting a hard drive?
A hard drive needs to be initialized by the operating system before it can be used. The process of initializing the hard drive involves setting the partition style; this will define how the hard drive will store the partition information so that the operating system knows which sectors belong to each partition, and which partition is bootable. The options are MBR (Master Boot Record), and GPT (GUID Partition Table), with GPT being used more commonly with newer, larger capacity hard drives. A hard drive needs to be partitioned so that the operating system knows how the data on the hard drive will be arranged. It is common to create one large partition on a hard drive for all of the data (often identified as C: ). You can create multiple partitions on a hard drive, and each will be assigned a drive letter in Windows or a name in Mac OS. Formatting a hard drive is necessary to apply a file system. A file system is used to control how data is stored and retrieved. In Windows, the most commonly used file system is NTFS, and for Mac OS it is Mac OS Extended (also referred to as HFS Plus). Note: Formatting a hard drive will erase all data on the hard drive. Make sure you have any data backed up before continuing.

How do I format a hard drive?
Note: Formatting a hard drive will erase all data on the hard drive. Make sure you have any data backed up before continuing. Windows A hard drive can be formatted in Windows using Disk Management. To open Disk Management, complete the following: Windows 8 and 10 Right-click the Windows icon . Click Disk Management . Windows 7 Click Start . Right-click Computer . Click Manage . Click Disk Management . In Disk Management, if the connected hard drive is not yet partitioned, it will show up with solid black bars and the label “Unallocated”. For more information on how to partition a hard drive and why you may want to, refer to the following FAQ: https://www.startech.com/faq/hard-drives-general-partition . If the hard drive has already been partitioned but not formatted, it will show up in Disk Management with a blue bar, but without a file system associated. To format a hard drive, complete the following: Right-click on the blue bar . Select Format . Enter a name for the partition under Volume Label . Under File System , choose your preferred option. Note: If you are unsure which option to choose, NTFS is commonly used. Click OK . Mac OS A hard drive can be formatted with the Mac OS Extended file system by using Disk Utility. To format the hard drive, complete the following: Click Finder . Click Applications . Click Utilities . On the left side of the window, click the drive name. Click Erase . Click Mac OS Extended (Journaled) under Format . Enter a name for the drive. Click Erase . Click Erase again to confirm.

How do I assign or change a drive letter in Windows?
A drive letter can be assigned or changed in Windows using Disk Management. To open Disk Management, complete the following: Windows 8 and 10 Right-click the Windows icon . Click Disk Management . Windows 7 Click Start . Right-click Computer . Click Manage . Click Disk Management . To assign a drive letter in Disk Management, complete the following: Right-click the drive you would like to change. Click Change Drive Letter and Paths . Click Add . Click the letter you want to use. Click OK . To change a driver letter in Disk Management, complete the following: Right-click the drive you would like to change. Click Change Drive Letter and Paths . Click Change . Click Assign the following drive letter . Click the letter you want to use. Click OK .

How do I rename my hard drive in Mac OS?
To rename a hard drive in Mac OS, complete the following: Click Finder . Under Devices , click on the hard drive. Below the icon of the hard drive, click and hold on the name of the hard drive, until a field opens. Enter the new name for the hard drive. Press Return .

What is ATAPI?
Advanced Technology Attachment Packet Interface (ATAPI) is a protocol that allows a greater variety of devices to be connected to a computer than ATA (PATA / IDE and SATA) on its own would allow. ATAPI allows IDE and SATA controllers to support optical drives. ATA on its own doesn't allow for specific functions required by optical drives, such as a "media eject" command or a way for the controller to determine whether media is present in the optical drive. Optical drives include CD-ROM drives, DVD-ROM drives, and Blu-ray players.
