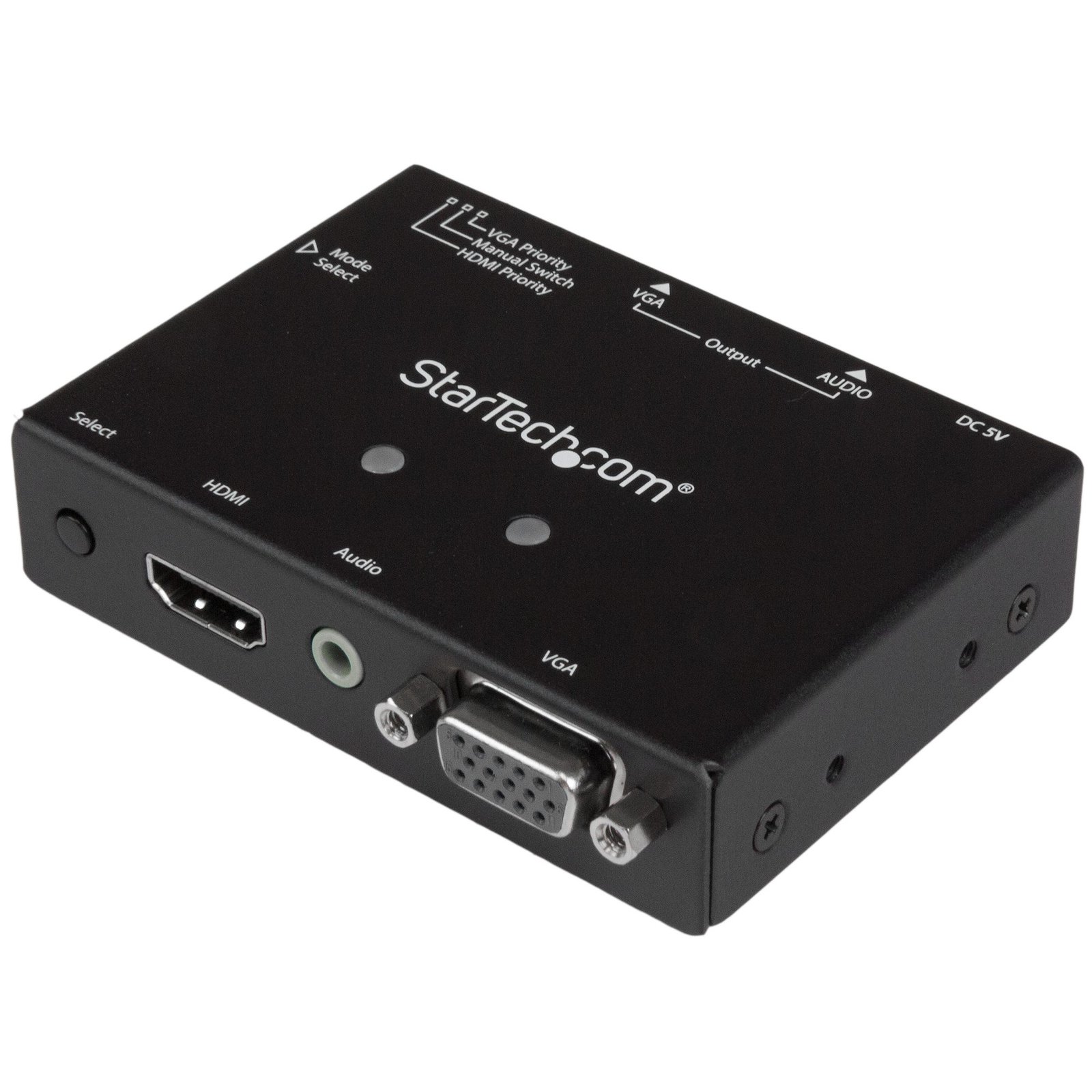

2x1 VGA + HDMI to VGA Converter Switch with Priority Switching - 1080p - TAA

Specifications & Compliance

UPC

065030858410

Brand

StarTech.com

Included in Package

1 - VGA+HDMI to VGA converter switch, 1 - mounting brackets, 1 - universal power adapter (NA, EU, UK, ANZ), 1 - instruction manual

Shipping (Package) Weight

20.0 oz [566 g]

Weight of Product

6.1 oz [172.0 g]

Product Length

3.3 in [84.0 mm]

Product Width

2.3 in [59.0 mm]

Product Height

0.8 in [20.0 mm]

Package Depth

6.2 in [15.8 cm]

Package Width

9.3 in [23.7 cm]

Package Height

2.6 in [65 mm]

Color

Black

Warranty

2 Years

Connector 1

VGA

Connector 1 (Quantity)

1

Package Quantity

1

Connector 2

HDMI

Connector 2 (Quantity)

1

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-20°C to 60°C (-4°F to 140°F)

Humidity

0%~80%

Material

Steel

Power Source

AC Adapter Included

Special Notes

Digitally encrypted content from the HDMI video source will not be displayed on the VGA display

Input Voltage

100 - 240 AC

Output Voltage

5 DC

Connector 3

VGA

Connector 3 (Quantity)

1

Power Consumption

10

LED Indicators

1 - VGA Port Selected, 1 - HDMI Port Selected

Number of Ports

2

Input Current

0.4 A

Output Current

2

Maximum Digital Resolutions

1920x1200

Audio

Yes

AV Input

HDMI, VGA

AV Output

VGA

Wide Screen Supported

Yes

Supported Resolutions

Supports resolutions up to 1920x1200 / 1080p
