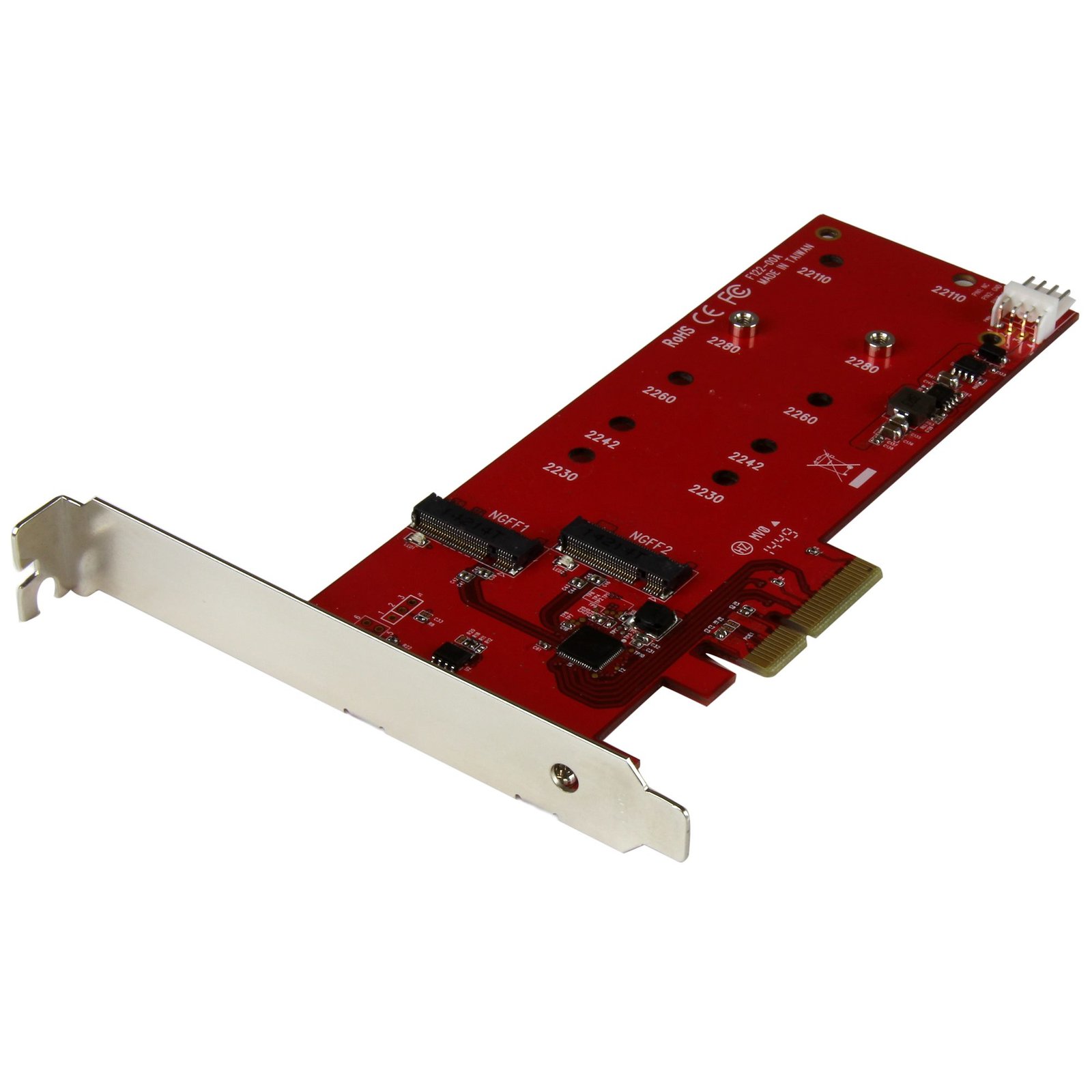

2x M.2 SATA SSD Controller Card - PCIe - TAA

2x M.2 SATA SSD Controller Card - PCIe - TAA

$35.99

Add two Next Generation Form Factor (NGFF) M.2 SATA SSDs to your computer through PCI Express

SKU: PEX2M2 Category:

Specifications & Compliance

UPC
065030863049
Brand
StarTech.com
Included in Package
1 - M.2 SATA SSD controller card, 1 - low-profile bracket, 2 - M.2 mounting screws
Shipping (Package) Weight
5.9 oz [168 g]
Weight of Product
2.2 oz [62 g]
Product Length
7.1 in [18 cm]
Product Width
0.8 in [20 mm]
Product Height
4.7 in [12 cm]
Package Depth
6.3 in [15.9 cm]
Package Width
8.6 in [21.9 cm]
Package Height
1.9 in [48 mm]
Color
Red
Warranty
2 Years
Connector 1
PCI Express x4
Connector 1 (Quantity)
1
Package Quantity
1
Connector 2
M.2 B-Key (SATA, AHCI)
Connector 2 (Quantity)
2
Operating Temperature
5°C to 50°C (41°F to 122°F)
Storage Temperature
-25°C to 70°C (-13°F to 158°F)
Humidity
20%~80% RH (Non-condensing)
Material
Steel
Industry Standards
Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps), PCI Express 2.0
Chipset ID
ASMedia - ASM1062
Special Notes
The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5Gbps per lane. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5Gbps per lane.
Connector 3
SP4 / Floppy Power (4-Pin, 5V / 12V)
Connector 3 (Quantity)
1
Number of Ports
2
Interface
M.2 SATA
Bus Type
PCI Express
System and Cable Requirements
PCI Express x4 slot (backward compatible with x8, and x16 slots)
Card Type
Standard Profile (LP bracket incl.)
SATA Type and Rate
SATA III (6 Gbps)
Port Style
Integrated on Card
RAID
No
Port Multiplier
No

Questions & Answers

Does this hard drive controller card support starting an operating system from a connected hard drive?
No, this hard drive controller card does not support starting an operating system from a connected hard drive. For a list of hard drive controller cards that support this feature and instructions on how to configure them, refer to the following FAQ: https://www.startech.com/faq/hard_drive_controllers_os_install_on_controller .

Which M.2 SSD types are compatible with this hard drive adapter?
This hard drive adapter supports only M.2 SATA SSDs with a B‑key (NGFF). PCIe‑based M.2 SSDs and other M.2 key types are not compatible. Explanation: This device is specifically designed to adapt M.2 SATA SSDs to standard SATA connections. It does not support PCIe (NVMe) M.2 SSDs, as SATA and PCIe use different communication protocols that are not interchangeable. M.2 keying determines both physical and electrical compatibility. While a B‑keyed M.2 SSD may support either SATA or PCIe x2, users must confirm that the specific drive supports SATA operation. M.2 SSDs with other key types, such as M‑key PCIe/NVMe drives, or drives that are PCIe‑only, will not function with this adapter.

Is this SATA controller card compatible with Serial Attached SCSI (SAS) drives?
No, this SATA controller card is not compatible with SAS drives. Explanation: Serial Attached SCSI (SAS) drives require a controller that supports the SAS command set. SATA controllers only support the SATA command set and cannot process SAS commands. Although a SAS drive may be physically connected to a SATA controller using an adapter, the SATA controller cannot communicate with the SAS drive. As a result, SAS drive compatibility is not supported on this SATA controller card.

Is this device compatible with optical drives such as CD-ROM, DVD-ROM, or Blu-ray drives?
No, this device is not compatible with optical drives. Explanation: Optical drive compatibility requires support for the ATA Packet Interface (ATAPI) protocol. CD-ROM, DVD-ROM, and Blu-ray drives all rely on ATAPI for communication. This device does not support the ATAPI protocol and therefore cannot communicate with optical drives. As a result, optical drives are not supported over IDE, SATA, or eSATA connections on this device. For a list of products that support ATAPI and optical drive compatibility, refer to: https://www.startech.com/en-us/faq/hard-drive-controllers-atapi-support .
