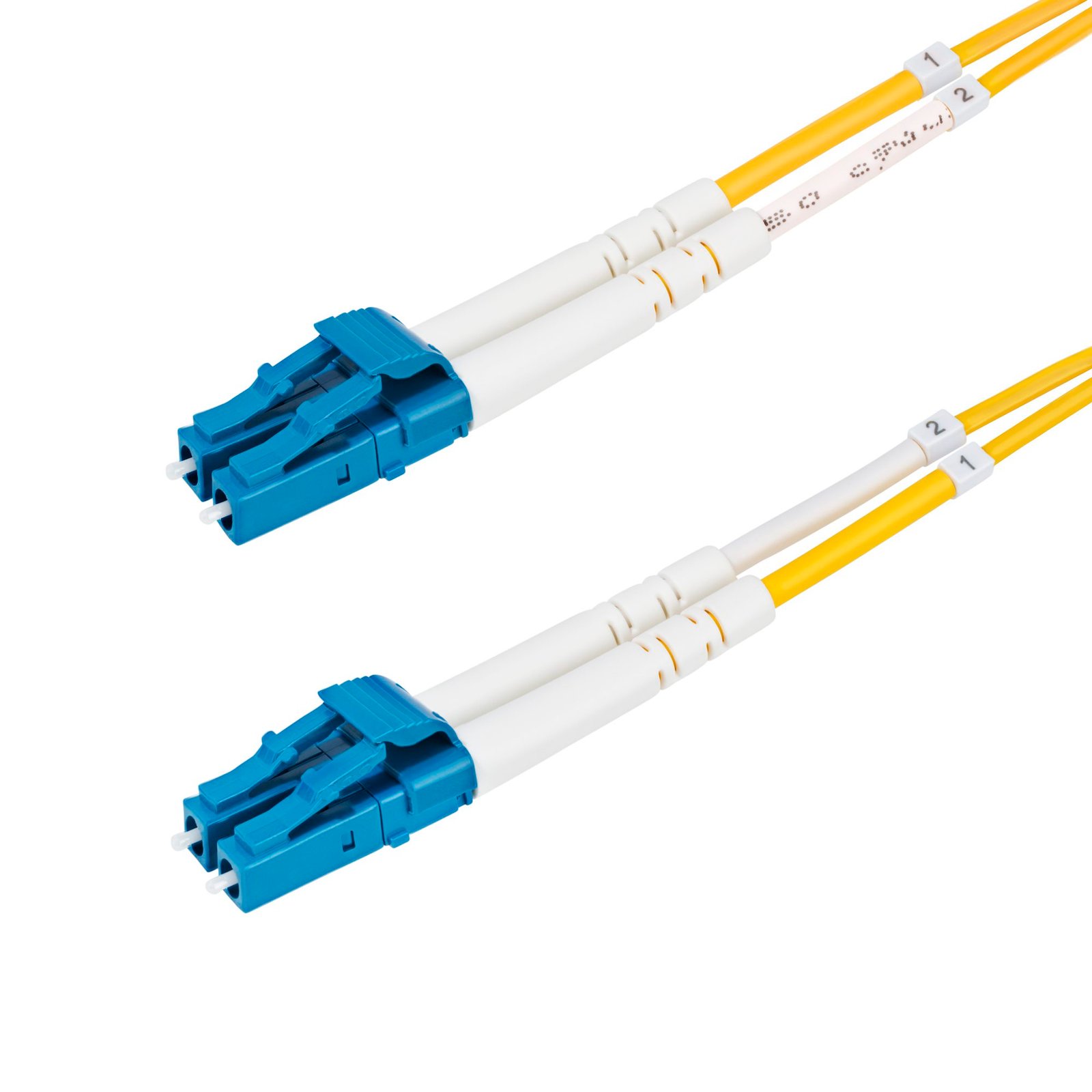

20m (65.6ft) LC to LC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125µm, 100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord

Specifications & Compliance

UPC

065030901789

Brand

StarTech.com

Included in Package

1 - 20m OS2 Single Mode Fiber Optic Cable - LC to LC, 1 - Test Report

Shipping (Package) Weight

5.4 oz [152 g]

Weight of Product

5.7 oz [162 g]

Product Length

65.6 ft [20.0 m]

Product Width

0.5 in [12.5 mm]

Product Height

0.4 in [10.2 mm]

Package Depth

21.9 in [55.6 cm]

Package Width

8.9 in [22.5 cm]

Package Height

1.1 in [27 mm]

Color

Yellow

Cable Length

65.6 ft [20 m]

Warranty

Lifetime

Connector 1

LC Duplex Fiber

Connector 1 (Quantity)

1

Connector 2

LC Duplex Fiber

Connector 2 (Quantity)

1

Operating Temperature

-20°C - 60°C (-4°F - 140°F)

Humidity

40% - 70%

Material

Polypropylene (PP)

Cable Jacket Material

Low Smoke Zero Halogen

Maximum Data Transfer Rate

100Gbps

Fire Rating

LSZH Rated (Low Smoke Zero Halogen)

Cable Rating

10Gbps / 40Gbps / 100Gbps

Cable OD

0.1 in [2 mm]

Connector Style

Straight

Fiber Type

Single Mode

General Specifications

Insertion Loss: ≤ 0.3dB <br> Return Loss: ≥ 55dB </br>

Active or Passive Adapter

Passive

Wavelength

1260nm to 1625nm

Fiber Size

9/125

Fiber Classification

OS2

Fiber Cable Type

Duplex
