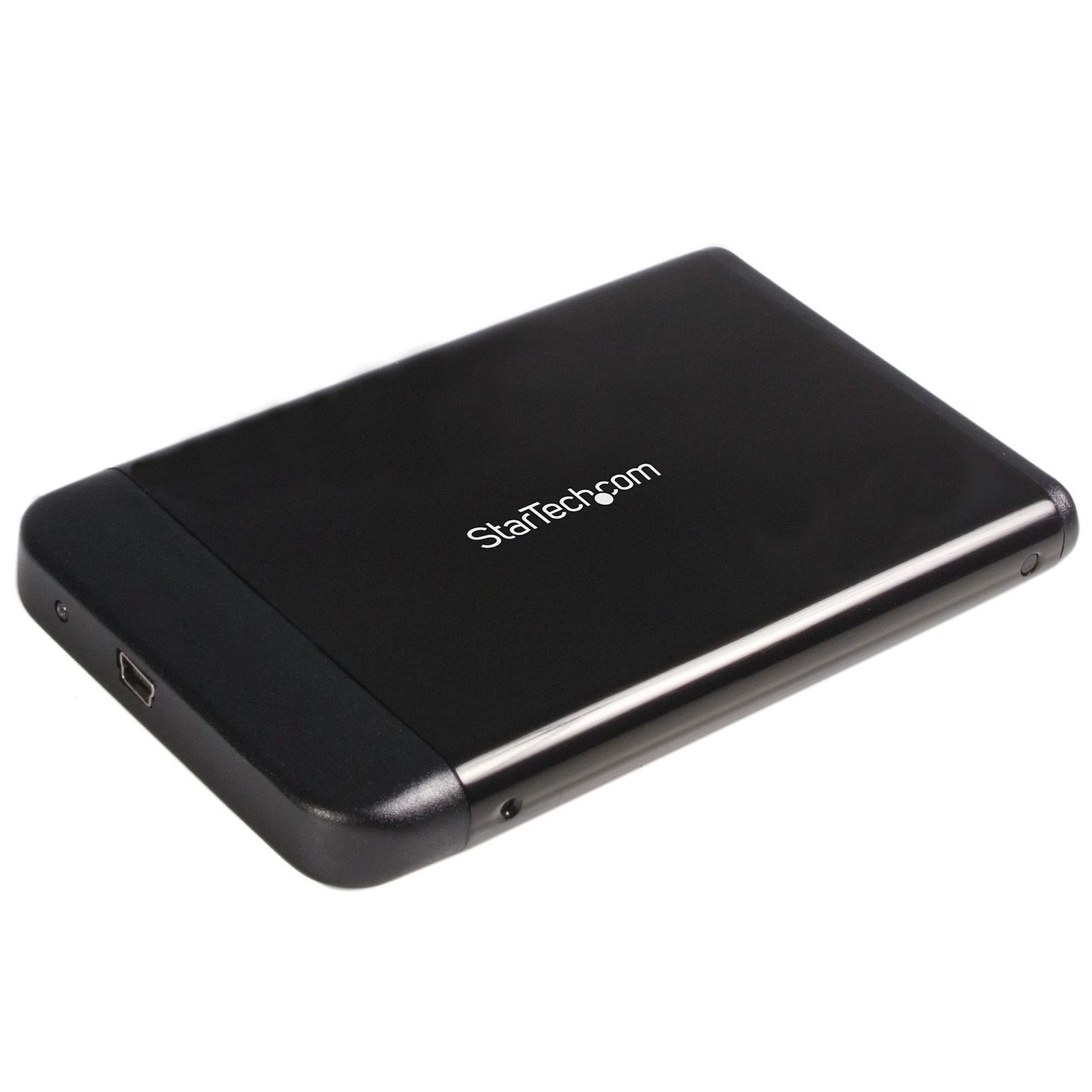

2.5in Black USB 2.0 External Hard Drive Enclosure for SATA HDD

Questions & Answers

Everything is hooked up, but nothing is working. What do I do?
When you troubleshoot issues with a hard drive enclosure, there are some quick tests that you can complete to rule out potential problems. You can test to make sure that the following components are working correctly and are not the source of the issue: Cables Hard drives Hard drive enclosure To test your setup components, try the following: Use the cables, hard drives, and hard drive enclosure in another setup to see if the problem is with the components or the setup. Use a different cable, hard drive, and hard drive enclosure in your setup to see if the problem persists. Ideally, you should test a component that you know works in another setup. When you test the hard drive and hard drive enclosure, it is recommended that you do the following: To check Disk Management , press the Windows key + R , type diskmgmt.msc , and press Enter . Check to see if your hard drive is listed. If the hard drive is listed with unallocated space, the hard drive needs to be reformatted. Right-click unallocated and click New Simple Volume . Follow the on-screen instructions to complete the reformatting.​ Note: Formatting a hard drive erases all of the data on it. Make sure that you back up all of your data before you reformat the hard drive.​ If the hard drive is listed as healthy but does not have a drive letter, for example, C:, right-click healthy and click Change Drive Letter and Paths . Click Add , assign a drive letter, and click OK . Note: A formatted hard drive will not show up in Computer or My Computer until it has a drive letter assigned to it.

How can I check if my USB device is properly detected by Mac OS?
To confirm that the Mac OS detects your USB device, complete the following: Click the Apple icon. Click About This Mac . Click More Info or System Report . Under the appropriate heading, confirm that your USB device is listed and that there isn't an error. For example, a network card would be under Ethernet Cards . You may need to refresh the System Information page after you plug in your device. To do so, press Command + R with the System Information page open. Your USB device is listed according to the name of the chipset. To determine the name of the chipset of your USB device, navigate to www.StarTech.com and look on the Technical Specifications tab for your product.

How can I determine whether a USB hard drive enclosure can provide enough power for my hard drive?
It depends on the USB port’s power output and the power requirements of the hard drive. Explanation: A USB hard drive enclosure draws power directly from the USB port on the host system, and USB ports provide a limited amount of power. Whether the enclosure can power a hard drive depends on whether the USB port supplies enough current (mA) to meet or exceed the drive’s power requirements. If the available USB power is lower than the drive’s requirement, the hard drive enclosure will not function reliably. USB power output varies by standard: USB 2.0 ports provide up to 500 mA (0.5 A) USB 3.0 ports provide up to 900 mA (0.9 A) You can find the hard drive’s power requirements on the product label or in the manufacturer’s technical specifications.

Do USB to SATA or NVMe adapters support TRIM on Windows, macOS, or Linux?
TRIM is supported on Windows only for select USB to SATA or USB to NVMe adapters. TRIM is not supported on macOS or Linux. Explanation: TRIM support for USB storage adapters is limited and depends on both the operating system and the specific product. On Windows, only select adapters support TRIM, and this capability is explicitly listed in the product’s Technical Specifications under the Performance section as “TRIM Support – Yes.” If this entry is not present, the product does not support TRIM. On macOS and Linux, TRIM is not supported for USB storage adapters due to operating system limitations in standard configurations. While some third‑party utilities on macOS or manual system modifications on Linux may enable TRIM in certain scenarios, these configurations are not supported. This limitation applies specifically to USB storage adapters and does not apply to SATA controller cards.

Will my hard drive work with this enclosure?
It depends. Your hard drive will work with this enclosure only if it matches the supported compatibility requirements. Explanation: Hard drive compatibility with this enclosure is determined by the specifications listed on the product page. Verify the following requirements: Storage capacity compatibility: The enclosure must support the hard drive’s capacity. Drives larger than the tested capacity may work but are not guaranteed. Interface compatibility: The hard drive must use the same interface as the enclosure (for example, SATA, IDE, or M.2). Form factor compatibility: The enclosure must support the hard drive’s physical size (such as 2.5-inch or 3.5-inch). Drive height compatibility: The enclosure must support the hard drive’s thickness (for example, 7 mm, 9 mm, or 15 mm). Power compatibility: The hard drive’s power consumption must not exceed the enclosure’s power output. For multi-drive enclosures, the total combined power consumption of all installed drives must remain within the enclosure’s power limits. All hard drive compatibility requirements can be confirmed in the Technical Specifications section of the product page.

How do I initialize a brand new hard drive in Windows or Mac OS?
Windows 10 Before you can access a new or formatted drive in your operating system, you need to initialize it first and then create a partition on the drive. A partition defines an area of the drive to use for storing data. The partition uses a file system (for example, ex-FAT, NTFS, and so on). Initialize a drive Note: You typically only need to initialize a drive if the drive is new. If you cannot find an uninitialized drive in Disk Management, skip the following steps and try to partition your device. Press the Windows key + R , type compmgmt.msc , and click Run to open Computer Management . Navigate to Disk Management . When prompted to, initialize your disk(s). If you are running Windows ® 7 or later and are using a drive larger than 2TB, initialize the disk(s) with GPT. If you are running an earlier version of Windows, initialize the disk(s) with MBR. For more information, visit the following FAQ: https://www.startech.com/en-us/support/faqs/technical?topic=harddrives#mbr-vs-gpt . Click OK . Create a partition in a drive Note: The following steps create an NTFS partition that uses the entire drive space. To use a different file system, select a different option in step 6. Right-click Unallocated or RAW volume , and select New Simple Volume . In the New Partition Wizard , click Next . Select Primary partition . Leave the partition size set to default , and click Next . Assign a drive letter or leave it set to the default, and click Next . Enter the following settings to format the partition: In the File System field, enter NTFS . Set the Allocation unit size to Default . In the Volume label field, enter < your name/reference >. Select the Perform a quick format check box. Clear the Enable file and folder compression check box. Click Next > Finish . The new drive should appear in Windows Explorer. Mac OS Before you can access a new or formatted drive in your operating system, you need to initialize it first and then create a partition on the drive. A partition defines an area of the drive to use for storing data. The partition uses a file system (for example, HFS+, ex-FAT, NTFS, and so on). Initialize a drive Mac OSX detects a drive that needs to be initialized and automatically prompts you to initialize the drive. If you are prompted to initialize the drive, click Initialize . If you are not prompted to initialize the drive and you cannot find the drive in Finder , you will need to create a partition on the drive. Create a partition on a drive Note: The following steps create an HFS+ (Mac OS Extended (Journaled)) partition that uses the entire drive space. To create a partition on a new drive, complete the following: Open Finder . Navigate to Applications and click Utilities . Open Disk Utility . Select the new drive and click the Partition tab. Click Options and verify that it is set to GUID Partition Table . Enter a name for the partition. Click Partition . The drive should now be accessible in Finder. For products related to this article, click here .

What is the difference between initializing, partitioning, and formatting a hard drive?
A hard drive needs to be initialized by the operating system before it can be used. The process of initializing the hard drive involves setting the partition style; this will define how the hard drive will store the partition information so that the operating system knows which sectors belong to each partition, and which partition is bootable. The options are MBR (Master Boot Record), and GPT (GUID Partition Table), with GPT being used more commonly with newer, larger capacity hard drives. A hard drive needs to be partitioned so that the operating system knows how the data on the hard drive will be arranged. It is common to create one large partition on a hard drive for all of the data (often identified as C: ). You can create multiple partitions on a hard drive, and each will be assigned a drive letter in Windows or a name in Mac OS. Formatting a hard drive is necessary to apply a file system. A file system is used to control how data is stored and retrieved. In Windows, the most commonly used file system is NTFS, and for Mac OS it is Mac OS Extended (also referred to as HFS Plus). Note: Formatting a hard drive will erase all data on the hard drive. Make sure you have any data backed up before continuing.

How do I format a hard drive?
Note: Formatting a hard drive will erase all data on the hard drive. Make sure you have any data backed up before continuing. Windows A hard drive can be formatted in Windows using Disk Management. To open Disk Management, complete the following: Windows 8 and 10 Right-click the Windows icon . Click Disk Management . Windows 7 Click Start . Right-click Computer . Click Manage . Click Disk Management . In Disk Management, if the connected hard drive is not yet partitioned, it will show up with solid black bars and the label “Unallocated”. For more information on how to partition a hard drive and why you may want to, refer to the following FAQ: https://www.startech.com/faq/hard-drives-general-partition . If the hard drive has already been partitioned but not formatted, it will show up in Disk Management with a blue bar, but without a file system associated. To format a hard drive, complete the following: Right-click on the blue bar . Select Format . Enter a name for the partition under Volume Label . Under File System , choose your preferred option. Note: If you are unsure which option to choose, NTFS is commonly used. Click OK . Mac OS A hard drive can be formatted with the Mac OS Extended file system by using Disk Utility. To format the hard drive, complete the following: Click Finder . Click Applications . Click Utilities . On the left side of the window, click the drive name. Click Erase . Click Mac OS Extended (Journaled) under Format . Enter a name for the drive. Click Erase . Click Erase again to confirm.

How do I assign or change a drive letter in Windows?
A drive letter can be assigned or changed in Windows using Disk Management. To open Disk Management, complete the following: Windows 8 and 10 Right-click the Windows icon . Click Disk Management . Windows 7 Click Start . Right-click Computer . Click Manage . Click Disk Management . To assign a drive letter in Disk Management, complete the following: Right-click the drive you would like to change. Click Change Drive Letter and Paths . Click Add . Click the letter you want to use. Click OK . To change a driver letter in Disk Management, complete the following: Right-click the drive you would like to change. Click Change Drive Letter and Paths . Click Change . Click Assign the following drive letter . Click the letter you want to use. Click OK .

How do I rename my hard drive in Mac OS?
To rename a hard drive in Mac OS, complete the following: Click Finder . Under Devices , click on the hard drive. Below the icon of the hard drive, click and hold on the name of the hard drive, until a field opens. Enter the new name for the hard drive. Press Return .

What is ATAPI?
Advanced Technology Attachment Packet Interface (ATAPI) is a protocol that allows a greater variety of devices to be connected to a computer than ATA (PATA / IDE and SATA) on its own would allow. ATAPI allows IDE and SATA controllers to support optical drives. ATA on its own doesn't allow for specific functions required by optical drives, such as a "media eject" command or a way for the controller to determine whether media is present in the optical drive. Optical drives include CD-ROM drives, DVD-ROM drives, and Blu-ray players.
