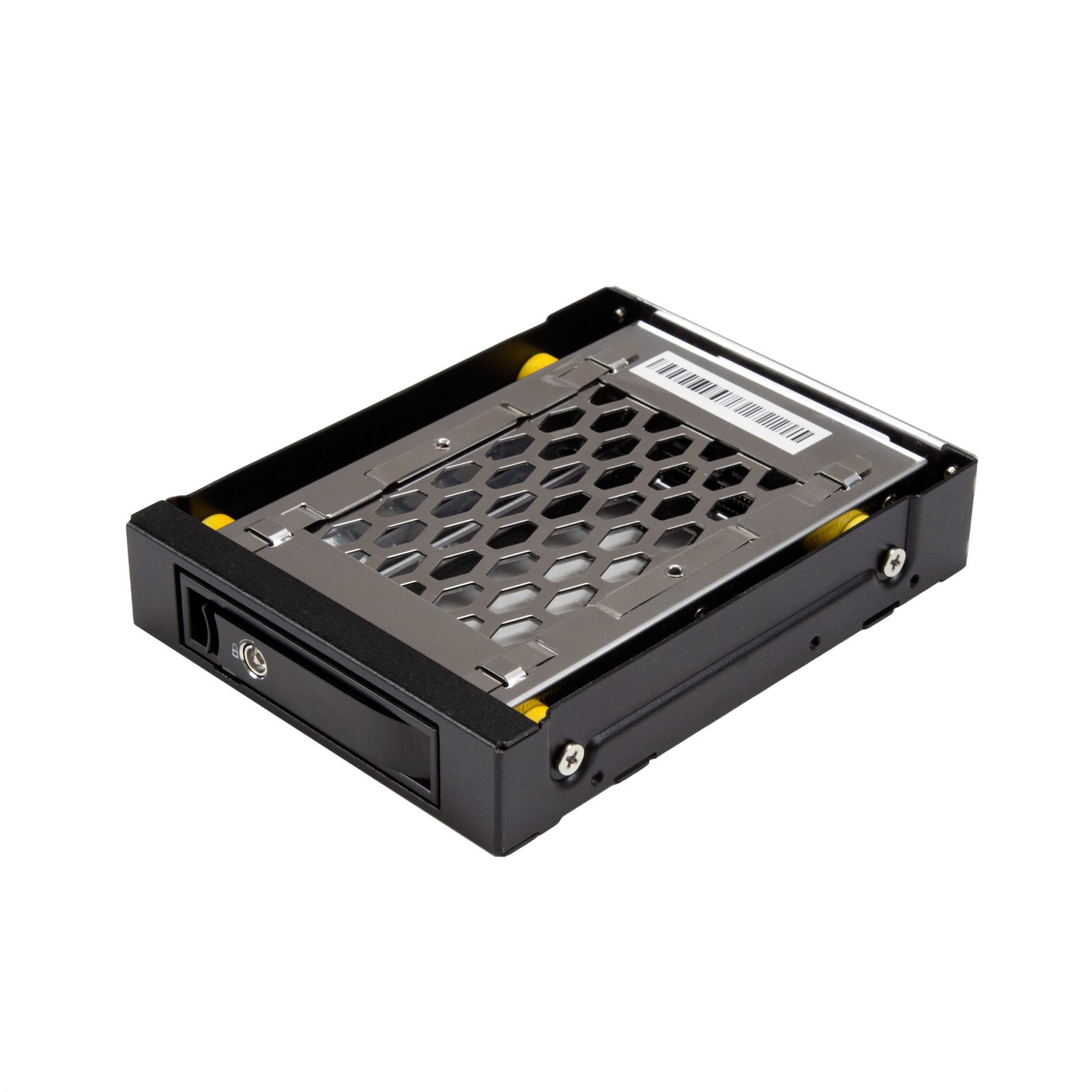

2.5" SATA Drive Hot Swap Bay for 3.5" Front Bay - Anti-Vibration

2.5" SATA Drive Hot Swap Bay for 3.5" Front Bay - Anti-Vibration

$40.99

Hot swap drives in the front bay of your computer or server, and safeguard your data with anti-vibration protection

SKU: SATBP125VP Category:

Specifications & Compliance

UPC
065030872829
Brand
StarTech.com
Included in Package
1 - mobile rack, 1 - drive tray, 2 - keys, 1 - SATA data cable, 4 - drive-mounting screws, 4 - mobile-rack mounting screws, 1 - quick-start guide
Shipping (Package) Weight
15.1 oz [429 g]
Weight of Product
10.9 oz [310.0 g]
Product Length
5.3 in [13.5 cm]
Product Width
4.0 in [10.2 cm]
Product Height
1.0 in [25.0 mm]
Package Depth
4.9 in [12.4 cm]
Package Width
6.7 in [16.9 cm]
Package Height
2.0 in [50 mm]
Color
Black
Warranty
2 Years
Connector 1
SFF-8482 (29-Pin, SAS)
Connector 1 (Quantity)
1
Package Quantity
1
Operating Temperature
-20°C to 70°C (-4°F to 158°F)
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Humidity
0% to 95% (non-condensing) at 25°C
Material
Aluminum and Plastic
Maximum Data Transfer Rate
6 Gbps
LED Indicators
1 - Drive power and activity
Interface
SATA
Host Connector 1
SATA (7-Pin + 15-Pin)
Host Connector 1 (Quantity)
1
SATA Type and Rate
SATA III (6 Gbps)
Compatible Drive Types
SATA
Number of Drives
1
Drive Size
2.5in
Drive Installation
Removable
Insertion Rating
50,000
Hot Swap Capability
Yes
Max Drive Height
0.6 in [15 mm]
Port Multiplier
No
Front Door Key Lock
Yes

Questions & Answers

Can a SAS drive be converted to SATA using this mobile rack?
No, a mobile rack cannot fully convert a SAS drive to SATA operation. A SAS drive connected through a mobile rack still requires a SAS-compatible controller to function correctly. Explanation: Some mobile racks allow a Serial Attached SCSI (SAS) drive to physically connect using a standard Serial ATA (SATA) connector interface. However, physical connector compatibility does not convert the SAS drive protocol into SATA. To use a SAS drive successfully, the host storage controller must support SAS devices. Key compatibility rules include: SAS controllers support both SAS drives and SATA drives. Most SATA controllers support only SATA drives and do not support SAS drives. A mobile rack does not convert SAS signaling into SATA signaling. As a result, installing a SAS drive into a mobile rack with SATA-style connectors will only work if the connected system or controller includes SAS support. For more information about SAS and SATA interoperability, refer to the related FAQ: http://www.startech.com/faq/hard_drive_controllers_sas_drive_compatibility .
