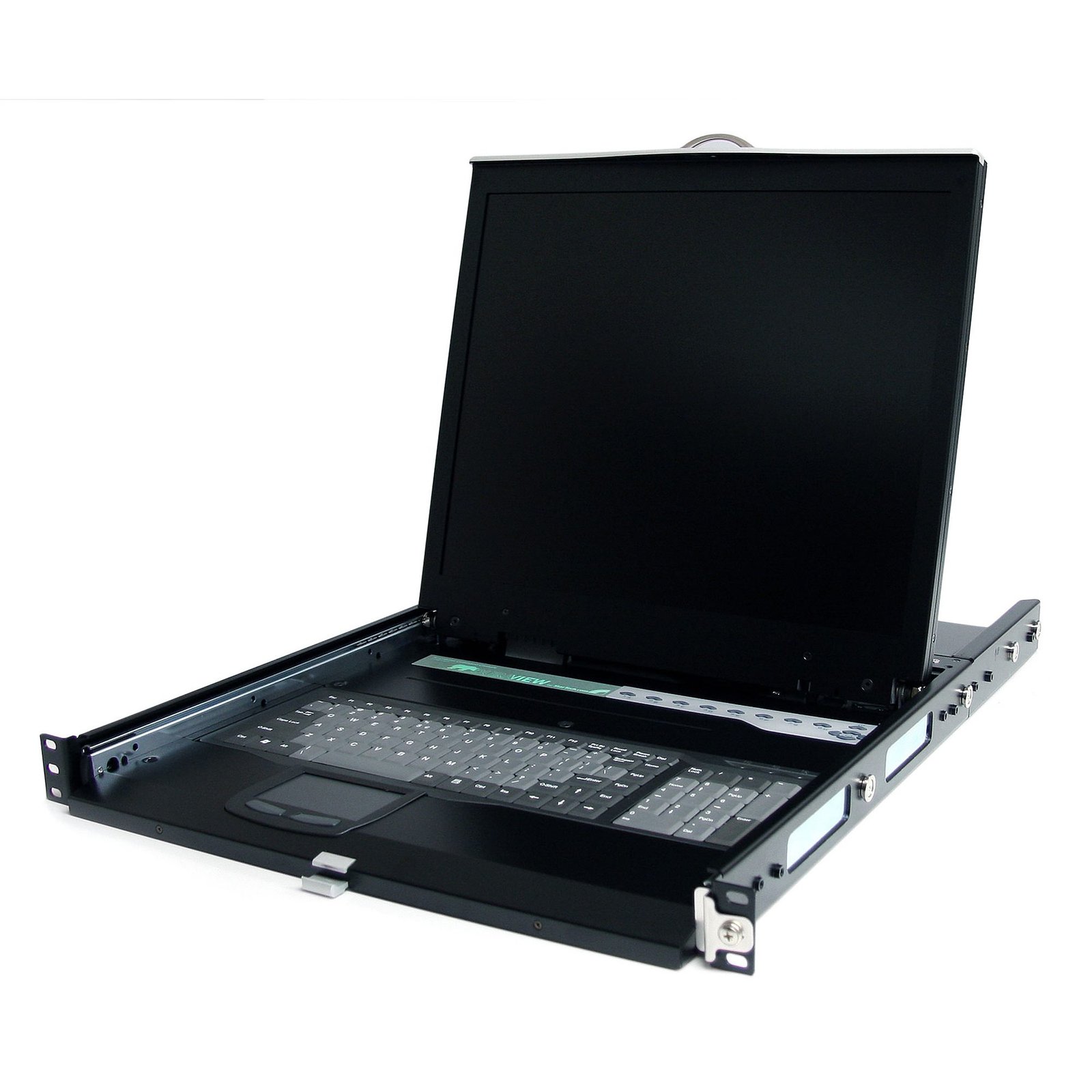

1U 19" Rackmount LCD Console w/ Rear Mount KVM Switch Module

1U 19" Rackmount LCD Console w/ Rear Mount KVM Switch Module

$1,215.99

Control a server or KVM switch with this 1U rack-mountable LCD console

SKU: 1UCABCONS19 Category:

Specifications & Compliance

UPC
065030819404
Brand
StarTech.com
Included in Package
1 - 19in Rack Console, 1 - 1 Port Rear Mount KVM Module, 2 - Mounting Brackets, 2 - Rear Bracket Extensions, 1 - Bag, Screws, 1 - Power Adapter (w/ Cord), 1 - Instruction Manual
Shipping (Package) Weight
45.4 lb [20.6 kg]
Package Depth
31.5 in [80 cm]
Package Width
24.8 in [63 cm]
Package Height
10.7 in [27.2 cm]
Color
Black
Warranty
2 Years
Operating Temperature
0 to +50
Storage Temperature
-20 to +60℃
Industry Standards
VESA DPMS compliant
Power Source
AC Adapter Included
Input Voltage
110V-240V AC
Output Voltage
12V DC
Power Consumption
28W
MTBF
360,562 Hours
Input Current
1.8A
Output Current
4
Audio
No
Plug Type
M
Center Tip Polarity
Positive
Maximum Analog Resolutions
1280 x 1024 pixels
Cascadable
Yes
Rack-Mountable
Yes
Number of KVM Ports
1
IP Control
No
Supported Platforms
PS/2
PC Video Type
VGA
Number of Monitors Supported
1
On-Screen Display
Yes
Aspect Ratio
4:3
DVI Support
No
Front Door Key Lock
No
Display Size
19"

Questions & Answers

What DC barrel connector power plug types do StarTech.com products use, and what are their dimensions?
StarTech.com DC barrel connector plug types are defined in the “Plug Type” field of the technical specifications, using a letter code that specifies the connector’s outer diameter (OD) and inner diameter (ID) in millimeters for power adapter compatibility. Explanation: In StarTech.com technical specifications, the “Plug Type” field is a standardized identifier for the exact DC barrel connector size required to power a product. Each plug type is assigned a letter code that corresponds to a specific combination of outer diameter (OD) and inner diameter (ID), measured in millimeters. Common DC barrel plug type dimensions Plug Type OD ID A 2.35 mm 0.7 mm B 4.0 mm 1.7 mm C 4.75 mm 1.7 mm H 3.4 mm 1.3 mm L 5.0 mm 2.5 mm M 5.5 mm 2.1 mm N 5.5 mm 2.5 mm The DC barrel connector plug type must match both the outer diameter and inner diameter exactly. A mismatch between the StarTech.com product requirement and the power adapter connector can prevent proper fit or stable power delivery, which may result in device startup failure or intermittent operation. The plug type defines only the physical connector size. The plug type does not define electrical power requirements such as voltage, current, or polarity. The power adapter used with a StarTech.com product must match the product’s specified electrical requirements. Using an incompatible power adapter can cause device malfunction or permanent damage. This standardized DC barrel connector plug type system enables IT professionals and procurement teams to verify connector dimensions, ensure power adapter compatibility, standardize hardware deployments, and identify the correct replacement power supply for StarTech.com products.
