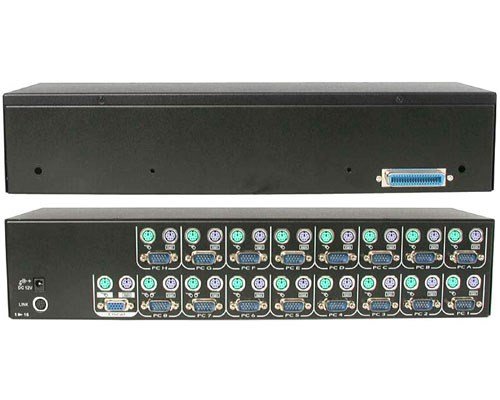

16 Port KVM Switch Module for 1UCABCONS Command Console

16 Port KVM Switch Module for 1UCABCONS Command Console

$89.99

16 Port KVM Switch Module for 1UCABCONS Command Console Specifications Package Depth3.7 in [93 mm] Package Height5.7 in [14.4 cm] Package Width18.7 in [47.4 cm] Shipping (Package) Weight6.5 lb [2.9 kg] UPC065030794718…

SKU: CAB1631D Category:

Specifications & Compliance

UPC
065030794718
Brand
StarTech.com
Shipping (Package) Weight
6.5 lb [2.9 kg]
Product Length
7.1 in [18 cm]
Product Width
17.2 in [43.6 cm]
Package Depth
3.7 in [93 mm]
Package Width
18.7 in [47.4 cm]
Package Height
5.7 in [14.4 cm]
Color
Black
Warranty
3 Years
Connector 1
Centronics (50-Pin)
Connector 1 (Quantity)
1
Connector 2
S-Video (Y/C)
Connector 2 (Quantity)
1
Material
Steel
Power Source
AC Adapter Included
Input Voltage
110V-240V AC
Output Voltage
12V DC
Connector 3
VGA
Connector 3 (Quantity)
1
Input Current
1.8A
Output Current
4
Host Connector 1
VGA
Host Connector 1 (Quantity)
16
Audio
No
Plug Type
M
Center Tip Polarity
Positive
Connector 4
PS/2
Connector 4 (Quantity)
2
Host Connector 2
PS/2
Host Connector 2 (Quantity)
32
Maximum Analog Resolutions
1920 x 1440
Cascadable
Yes
Rack-Mountable
Yes
Number of KVM Ports
16
IP Control
No
Supported Platforms
PS/2
PC Video Type
VGA
Number of Monitors Supported
1
On-Screen Display
Yes
Port Selection Support
Hotkeys and OSD (On Screen Display)
Maximum Number of Users
1
DVI Support
No

Questions & Answers

What DC barrel connector power plug types do StarTech.com products use, and what are their dimensions?
StarTech.com DC barrel connector plug types are defined in the “Plug Type” field of the technical specifications, using a letter code that specifies the connector’s outer diameter (OD) and inner diameter (ID) in millimeters for power adapter compatibility. Explanation: In StarTech.com technical specifications, the “Plug Type” field is a standardized identifier for the exact DC barrel connector size required to power a product. Each plug type is assigned a letter code that corresponds to a specific combination of outer diameter (OD) and inner diameter (ID), measured in millimeters. Common DC barrel plug type dimensions Plug Type OD ID A 2.35 mm 0.7 mm B 4.0 mm 1.7 mm C 4.75 mm 1.7 mm H 3.4 mm 1.3 mm L 5.0 mm 2.5 mm M 5.5 mm 2.1 mm N 5.5 mm 2.5 mm The DC barrel connector plug type must match both the outer diameter and inner diameter exactly. A mismatch between the StarTech.com product requirement and the power adapter connector can prevent proper fit or stable power delivery, which may result in device startup failure or intermittent operation. The plug type defines only the physical connector size. The plug type does not define electrical power requirements such as voltage, current, or polarity. The power adapter used with a StarTech.com product must match the product’s specified electrical requirements. Using an incompatible power adapter can cause device malfunction or permanent damage. This standardized DC barrel connector plug type system enables IT professionals and procurement teams to verify connector dimensions, ensure power adapter compatibility, standardize hardware deployments, and identify the correct replacement power supply for StarTech.com products.
