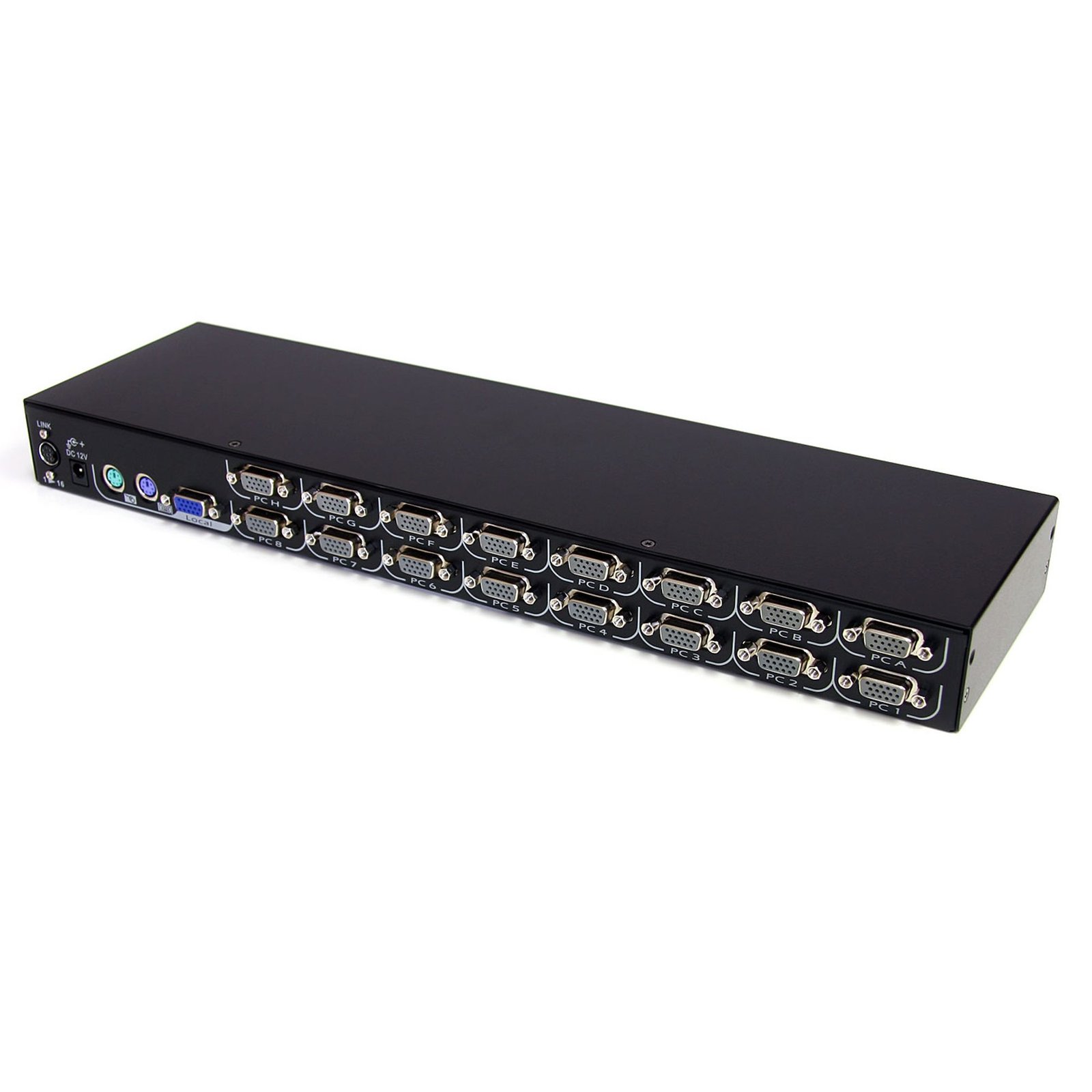

16-port KVM Module for Rack-mount LCD Consoles - TAA

16-port KVM Module for Rack-mount LCD Consoles - TAA

$421.99

Enhance your StarTech.com LCD console by adding control for sixteen USB or PS/2 computers, or use with a separate PS/2 keyboard and mouse with VGA display

SKU: CAB1631HD Category:

Specifications & Compliance

UPC
065030802055
Brand
StarTech.com
Included in Package
1 - 16 Port KVM Module, 2 - Mounting Brackets (w/ Screws), 1 - Instruction Manual
Shipping (Package) Weight
5.0 lb [2.3 kg]
Weight of Product
3.5 lb [1.6 kg]
Product Length
0.0 in [0.0 mm]
Product Width
17.2 in [43.6 cm]
Product Height
1.7 in [44.0 mm]
Package Depth
2.5 in [63 mm]
Package Width
20.7 in [52.6 cm]
Package Height
6.3 in [16 cm]
Color
Black
Warranty
3 Years
Connector 1
VGA
Connector 1 (Quantity)
1
Package Quantity
1
Connector 2
PS/2
Connector 2 (Quantity)
2
Material
Steel
Power Source
Not Included (not required for standard applications)
Special Notes
Centronics Connector: 1 x 36 pin Centronics connector (Connects 8 port KVM module to 1UCABCONS or IUCABCONS17)
Input Voltage
110V-240V AC
Output Voltage
12V DC
Power Consumption
0.6W
MTBF
72000 hours
Input Current
1.8A
Output Current
4
Host Connector 1
VGA
Host Connector 1 (Quantity)
16
Audio
No
Plug Type
M
Center Tip Polarity
Positive
Maximum Analog Resolutions
1920 x 1440 pixels
Cascadable
Yes
Rack-Mountable
Yes
U Height
1U
Number of KVM Ports
16
IP Control
No
Supported Platforms
USB and PS/2
PC Video Type
VGA
Number of Monitors Supported
1
On-Screen Display
Yes
Port Selection Support
Hotkeys and OSD (On Screen Display)
Maximum Number of Users
1
DVI Support
No
Product Depth
7.1 in [18 cm]
Auto Scan
3, 8, 15 & 30 seconds
Security Features
Per-Port Passwords

Questions & Answers

What DC barrel connector power plug types do StarTech.com products use, and what are their dimensions?
StarTech.com DC barrel connector plug types are defined in the “Plug Type” field of the technical specifications, using a letter code that specifies the connector’s outer diameter (OD) and inner diameter (ID) in millimeters for power adapter compatibility. Explanation: In StarTech.com technical specifications, the “Plug Type” field is a standardized identifier for the exact DC barrel connector size required to power a product. Each plug type is assigned a letter code that corresponds to a specific combination of outer diameter (OD) and inner diameter (ID), measured in millimeters. Common DC barrel plug type dimensions Plug Type OD ID A 2.35 mm 0.7 mm B 4.0 mm 1.7 mm C 4.75 mm 1.7 mm H 3.4 mm 1.3 mm L 5.0 mm 2.5 mm M 5.5 mm 2.1 mm N 5.5 mm 2.5 mm The DC barrel connector plug type must match both the outer diameter and inner diameter exactly. A mismatch between the StarTech.com product requirement and the power adapter connector can prevent proper fit or stable power delivery, which may result in device startup failure or intermittent operation. The plug type defines only the physical connector size. The plug type does not define electrical power requirements such as voltage, current, or polarity. The power adapter used with a StarTech.com product must match the product’s specified electrical requirements. Using an incompatible power adapter can cause device malfunction or permanent damage. This standardized DC barrel connector plug type system enables IT professionals and procurement teams to verify connector dimensions, ensure power adapter compatibility, standardize hardware deployments, and identify the correct replacement power supply for StarTech.com products.
