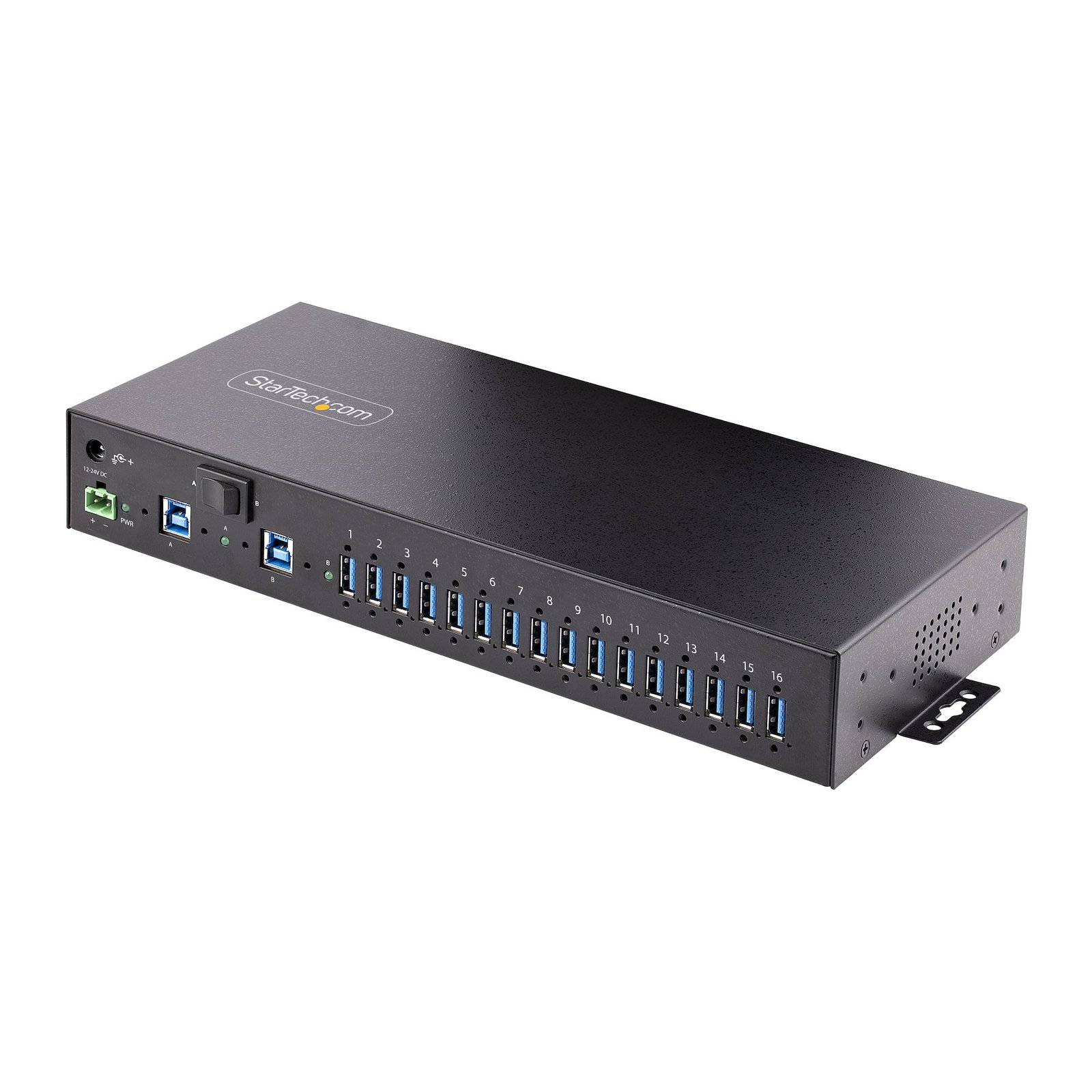

16-Port Industrial USB 5Gbps Hub with Power Adapter, Metal Enclosure, Mountable, ESD Protection, Terminal Block Power, USB Charging

16-Port Industrial USB 5Gbps Hub with Power Adapter, Metal Enclosure, Mountable, ESD Protection, Terminal Block Power, USB Charging, Dual-Host Switch - TAA

$567.99

Add 16x USB 3.2 Gen 1 (5 Gbps) ports to two host computers, using this DIN-rail/Surface/Rack-mountable industrial hub

SKU: S5G16AINDS-USB-A-HUB Category:

Specifications & Compliance

UPC
065030905381
Brand
StarTech.com
Included in Package
1 - USB Hub, 1 - 10 ft [3 m] USB-A to USB-B Cable, 1 - Terminal Block Connector (Attached), 2 - DIN Rail Mounting Brackets (with Mounting Screws), 2 - Rackmount Brackets (with Mounting Screws), 1 - 160W Power Adapter (160W-POWER-ADAPTER), 1 - Quick-Start Guide (5G16AINDS-USB-A-HUB), 1 - Quick-Start Guide (160W-POWER-ADAPTER)
Shipping (Package) Weight
4.0 lb [1.8 kg]
Weight of Product
2.4 lb [1.1 kg]
Product Length
0.5 in [13.2 mm]
Product Width
1.2 in [30.9 mm]
Product Height
0.2 in [4.4 mm]
Package Depth
10.7 in [27.3 cm]
Package Width
14.5 in [36.8 cm]
Package Height
3.9 in [98 mm]
Color
Black
Warranty
2 Years
Connector 1
USB-A (5Gbps, 4.5W)
Connector 1 (Quantity)
16
Connector 2
Terminal Block (2 Wire)
Connector 2 (Quantity)
1
Operating Temperature
32°F to 140°F (0°C to 60°C)
Storage Temperature
-4°F to 167°F (-20°C to 75°C)
Humidity
5% - 95% RH
Material
Steel
Maximum Data Transfer Rate
5 Gbps
Power Source
AC Adapter Included
Chipset ID
Genesys Logic - GL3523
Input Voltage
100 - 240 AC
Output Voltage
24 DC
Connector 3
Barrel Power (M-Type, OD 5.5mm / ID 2.1mm)
Connector 3 (Quantity)
1
Power Consumption
158.4W
MTBF
122,383.8 Hours
LED Indicators
1 - Power (Green) - Solid Green - Indicates if the USB Hub is receiving power from either a USB Host or a DC Power Source, 2 - USB Host Selection LEDs - Solid Green - Indicates which Host Device is currently selected
Number of Ports
16
Interface
USB 3.2 Gen 1 (5Gbps)
Input Current
3.5A
Output Current
6.6
Type and Rate
USB 5Gbps
System and Cable Requirements
Available USB 3.2 Gen 1 Port, USB 3.2 Gen 1 (5 Gbps) is also know as SuperSpeed USB, USB 3.1 Gen 1, and USB 3.0, Ports are grouped in 8 pairs (1&2, 3&4, 5&6, 7&8, 9&10, 11&12, 13&14, 15&16) and each pair supports max 3A/15W combined (1.5A/7.5W per port), or max 2.0A/10W per port when only one of both ports is used.
Host Connector 1
USB-B (5Gbps, 4.5W)
Host Connector 1 (Quantity)
2
Plug Type
Terminal Block (2 Wire), M
Mounting Options
Surface Mount
U Height
1U
Fast-Charge Port(s)
Yes
USB-C Host Connection
No
USB-C Device Port(s)
No
Total Available Power Output
120W
Number of Battery Charge 1.2 Ports
16
ESD Protection
+/-8kV (Contact), +/-15kV (Air)

Questions & Answers

What DC barrel connector power plug types do StarTech.com products use, and what are their dimensions?
StarTech.com DC barrel connector plug types are defined in the “Plug Type” field of the technical specifications, using a letter code that specifies the connector’s outer diameter (OD) and inner diameter (ID) in millimeters for power adapter compatibility. Explanation: In StarTech.com technical specifications, the “Plug Type” field is a standardized identifier for the exact DC barrel connector size required to power a product. Each plug type is assigned a letter code that corresponds to a specific combination of outer diameter (OD) and inner diameter (ID), measured in millimeters. Common DC barrel plug type dimensions Plug Type OD ID A 2.35 mm 0.7 mm B 4.0 mm 1.7 mm C 4.75 mm 1.7 mm H 3.4 mm 1.3 mm L 5.0 mm 2.5 mm M 5.5 mm 2.1 mm N 5.5 mm 2.5 mm The DC barrel connector plug type must match both the outer diameter and inner diameter exactly. A mismatch between the StarTech.com product requirement and the power adapter connector can prevent proper fit or stable power delivery, which may result in device startup failure or intermittent operation. The plug type defines only the physical connector size. The plug type does not define electrical power requirements such as voltage, current, or polarity. The power adapter used with a StarTech.com product must match the product’s specified electrical requirements. Using an incompatible power adapter can cause device malfunction or permanent damage. This standardized DC barrel connector plug type system enables IT professionals and procurement teams to verify connector dimensions, ensure power adapter compatibility, standardize hardware deployments, and identify the correct replacement power supply for StarTech.com products.
