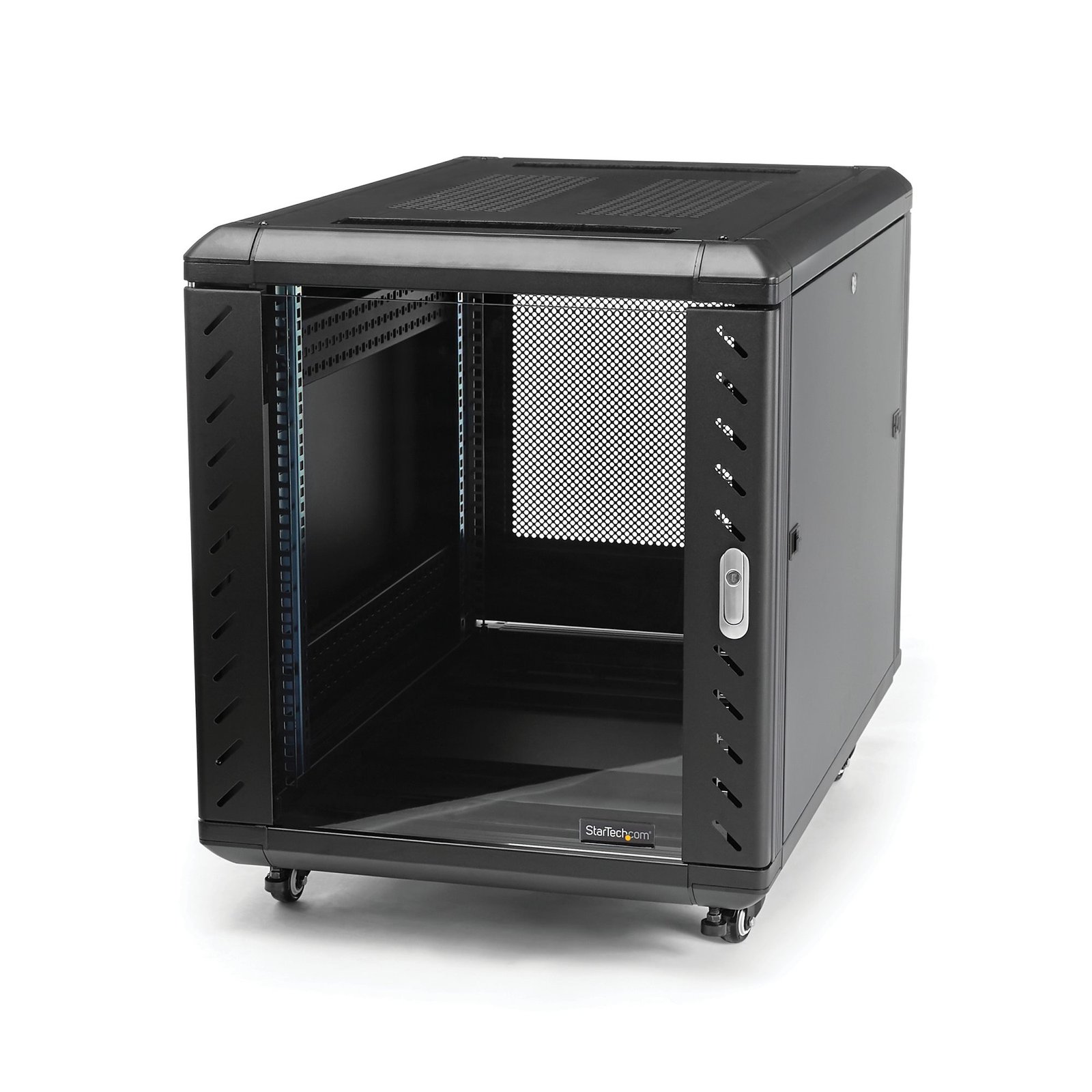

15U Enterprise-Grade Flat Pack Server Rack Cabinet, 19in Enclosed 4-Post Rack with 29in (75cm) Mounting Depth and 1764lb (800kg) Weight

15U Enterprise-Grade Flat Pack Server Rack Cabinet, 19in Enclosed 4-Post Rack with 29in (75cm) Mounting Depth and 1764lb (800kg) Weight Capacity

$800.51

Securely store servers, network and telecommunications equipment in this 15U server rack

SKU: RK1536BKF Category:

Specifications & Compliance

UPC
065030887151
Brand
StarTech.com
Included in Package
2 - Side Panel and Frame, 4 - Upper and Lower Beams, 1 - Top Panel, 2 - Bottom Panel with Cable Management Slot, 1 - Bottom Panel (Solid), 1 - Front Door, 1 - Rear Door, 8 - Plastic Corner Caps, 8 - M8-20 Hex Screw, 8 - M8 Spring Washer, 8 - M4-10 Flat Head Screw, 4 - M6-12 Hex Screw, 6 - M5-12 Screw, 1 - M6 Hex Key, 1 - M8 Hex Key, 24 - M6-12 Philips Screws, 24 - M6 Cage Nuts, 24 - M6 Plastic Cup Washers, 2 - Caster, 2 - Caster with Brake, 16 - M6-10 Philips Bolt, 4 - Leveling Feet, 2 - Door Key, 2 - Side Panel Key, 2 - Door Hinge Pin, 1 - Philips Screwdriver
Shipping (Package) Weight
138.0 lb [62.6 kg]
Weight of Product
119.1 lb [54.0 kg]
Product Length
3.3 ft [1.0 m]
Product Width
23.6 in [60.0 cm]
Product Height
31.4 in [79.6 cm]
Package Depth
3.5 ft [1.1 m]
Package Width
34.8 in [88.4 cm]
Package Height
12.9 in [32.7 cm]
Color
Black
Warranty
Lifetime
Package Quantity
1
Industry Standards
EIA/ECA-310-E
U Height
15U
Wallmountable
No
Frame Type
Enclosed Cabinet
Maximum Mounting Depth
33.0 in [83.8 cm]
Construction Material
Steel
Rack Type
4-Post
Flat Pack (Assembly Required)
Yes
Mounting Hole Types
Square (For Cage Nut)
Mounting Rail Profile
G-Shape
Minimum Mounting Depth
5.7 in [14.4 cm]
Special Features
Casters (Included), Easy Assembly, Grounding Lug(s), Leveling Feet, U-Markings, Adjustable Mounting Rails
Internal Width
23.5 in [59.6 cm]
Internal Depth
39.1 in [99.2 cm]
Front Door Construction
Steel with Glass Window
Front Door Features
Secure Key Lock with Reversible and Removable Front Door
Side Panel Construction
Steel
Height with Casters
33.9 in [86.1 cm]
Back Door Construction
Steel Mesh
Back Door Features
Secure Key Lock with Reversible and Removable Back Door
Side Panel Features
Secure Key Lock with Removable Side Panels
Weight Capacity (Rolling)
330.8 lb [150 kg]

Questions & Answers

Why is the weight capacity different for moving a server rack versus a stationary (static) rack?
The allowable weight for moving a server rack is lower than the static weight capacity because movement introduces additional stress and instability. Explanation: Server racks are designed with two different weight considerations: static load capacity and dynamic (moving) load capacity. Static weight capacity refers to the maximum weight a server rack can safely support when it is stationary and properly installed. This is typically higher because the load is evenly distributed and does not shift. Dynamic weight capacity refers to the maximum weight the rack can support while being moved, such as when using casters. This limit is lower because movement introduces forces such as vibration, momentum, and uneven load distribution. When a rack is in motion, these additional forces can increase stress on the frame, mounting points, and casters. Exceeding the dynamic weight rating may result in equipment damage, rack instability, or caster failure. To ensure safe operation, always verify both static and dynamic weight ratings in the product specifications and reduce the load accordingly before moving a populated server rack.

Is it safe or recommended to move a server rack while it is loaded with equipment?
No, it’s generally neither safe nor recommended to move a rack while it is loaded with equipment. Because of the weight and height of server racks, they have a high centre of gravity and can pose a tipping hazard, especially in the case of taller racks or heavier loads. This creates a risk of serious injury to people and damage to the rack, mounted equipment, and/or flooring. The casters are designed only for minor positioning adjustments within the rack’s final location, not for moving the rack between rooms, across uneven surfaces, or on ramps/slopes. If you must move a server rack, we recommend unloading it first, as we do not support or endorse moving it while loaded.
