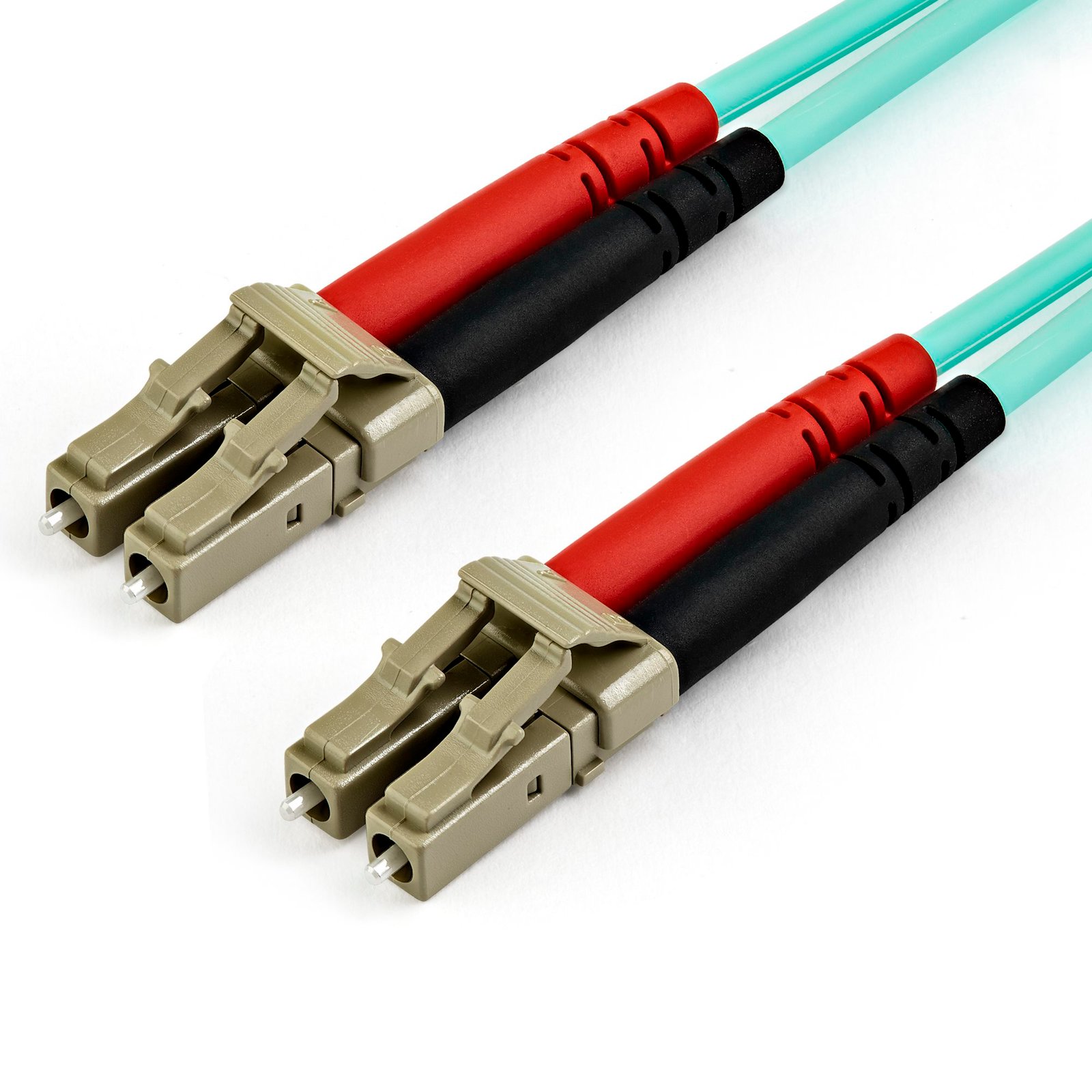

15m (50ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125µm Zipcord Fiber Cable, 100G, Low Insertion Loss, LSZH Fiber

15m (50ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125µm Zipcord Fiber Cable, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord

$56.36

LSZH Jacket | Aramid Fiber Sheath | Ideal for SANs, data servers, SFP+

SKU: A50FBLCLC15 Category:

Specifications & Compliance

UPC
065030881852
Brand
StarTech.com
Included in Package
1 - 15 m Fiber Patch Cable
Shipping (Package) Weight
7.3 oz [208 g]
Weight of Product
6.9 oz [195.0 g]
Product Length
49.2 ft [15.0 m]
Product Width
0.0 in [0.0 mm]
Package Depth
7.7 in [19.6 cm]
Package Width
6.8 in [17.3 cm]
Package Height
1.5 in [38 mm]
Color
Aqua
Cable Length
49.2 ft [15 m]
Warranty
Lifetime
Connector 1
LC Duplex Fiber
Connector 1 (Quantity)
1
Package Quantity
1
Connector 2
LC Duplex Fiber
Connector 2 (Quantity)
1
Operating Temperature
-20°C to 60°C (-4°F to 140°F)
Humidity
0~90% RH
Cable Jacket Material
Low Smoke Zero Halogen
Maximum Data Transfer Rate
100Gbps
Fire Rating
LSZH Rated (Low Smoke Zero Halogen)
Cable Rating
1Gbps / 10Gbps / 40Gbps / 100Gbps
Fiber Type
Multi Mode
Wavelength
850nm
Fiber Size
50/125
Fiber Classification
OM3
Fiber Cable Type
Duplex

Questions & Answers

What is the difference between UPC and APC fiber connectors, and which type do StarTech.com fiber products use?
UPC and APC connectors differ in their end-face polish, and StarTech.com fiber products use UPC connectors. Explanation: UPC (Ultra Physical Contact) and APC (Angled Physical Contact) are fiber connector types that differ in how the fiber end face is polished: UPC connectors: The fiber end face is polished flat with a slight dome shape to ensure direct core contact and low insertion loss. APC connectors: The fiber end face is polished at an 8-degree angle to reduce back reflection in high-performance applications. UPC and APC connectors are not compatible and should not be mated. The angled surface of an APC connector prevents proper alignment with a UPC connector, which can result in high signal loss or a failed connection. StarTech.com fiber products use UPC connectors, so they must be connected to other UPC-compatible fiber interfaces to ensure proper operation.
