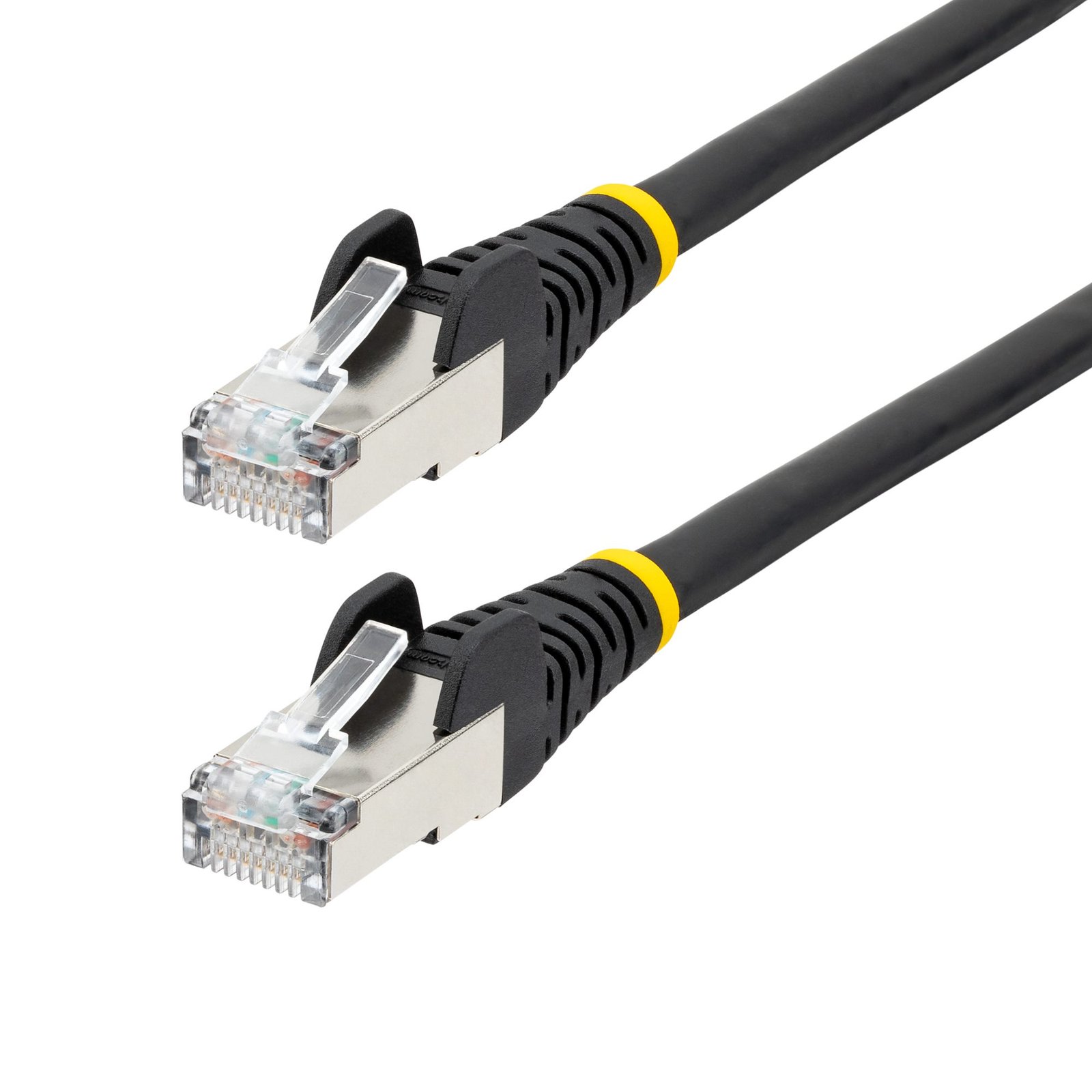

12ft CAT6a Ethernet Cable - Black - Low Smoke Zero Halogen (LSZH) - 10GbE 500MHz 100W PoE++ Snagless RJ-45 w/Strain Reliefs S/FTP Network Patch Cord

Specifications & Compliance

UPC

065030896276

Brand

StarTech.com

Included in Package

1 - CAT6A LSZH Ethernet Cable

Shipping (Package) Weight

5.3 oz [150 g]

Weight of Product

4.9 oz [140 g]

Product Length

12.0 ft [3.7 m]

Product Width

0.5 in [11.6 mm]

Product Height

0.5 in [13.9 mm]

Package Depth

7.8 in [19.9 cm]

Package Width

7.0 in [17.9 cm]

Package Height

0.9 in [23 mm]

Color

Black

Warranty

Lifetime

Connector 1

RJ-45

Connector 1 (Quantity)

1

Package Quantity

1

Connector 2

RJ-45

Connector 2 (Quantity)

1

Operating Temperature

0°C to 50°C (32°F to 122°F)

Storage Temperature

-20°C to 60°C (-4°F to 140°F)

Humidity

0% ~ 85% RH

Cable Jacket Material

Low Smoke Zero Halogen

Wire Gauge

27 AWG (0.361 mm)

Maximum Data Transfer Rate

10 Gbps

Fire Rating

LSZH Rated (Low Smoke Zero Halogen)

Number of Conductors

4 Pair S/FTP

Connector Plating

Gold

Cable Type

Shielded Snag-less

Cable Rating

CAT6a - 500 MHz

Power Delivery

100W

Cable Shield Material

Aluminum-Mylar Foil with Braid

Conductor Type

Stranded Copper

Wiring Standard

TIA/EIA-T568B

Cable OD

0.2 in [5.7 mm]

ETL Verified

Yes

Pair Shield Structure

Aluminium-Mylar Foil

Cable Structure

Shielded with Foiled Twisted Pairs (S/FTP)

Cable Shield Overlap

Aluminium-Mylar Foil
