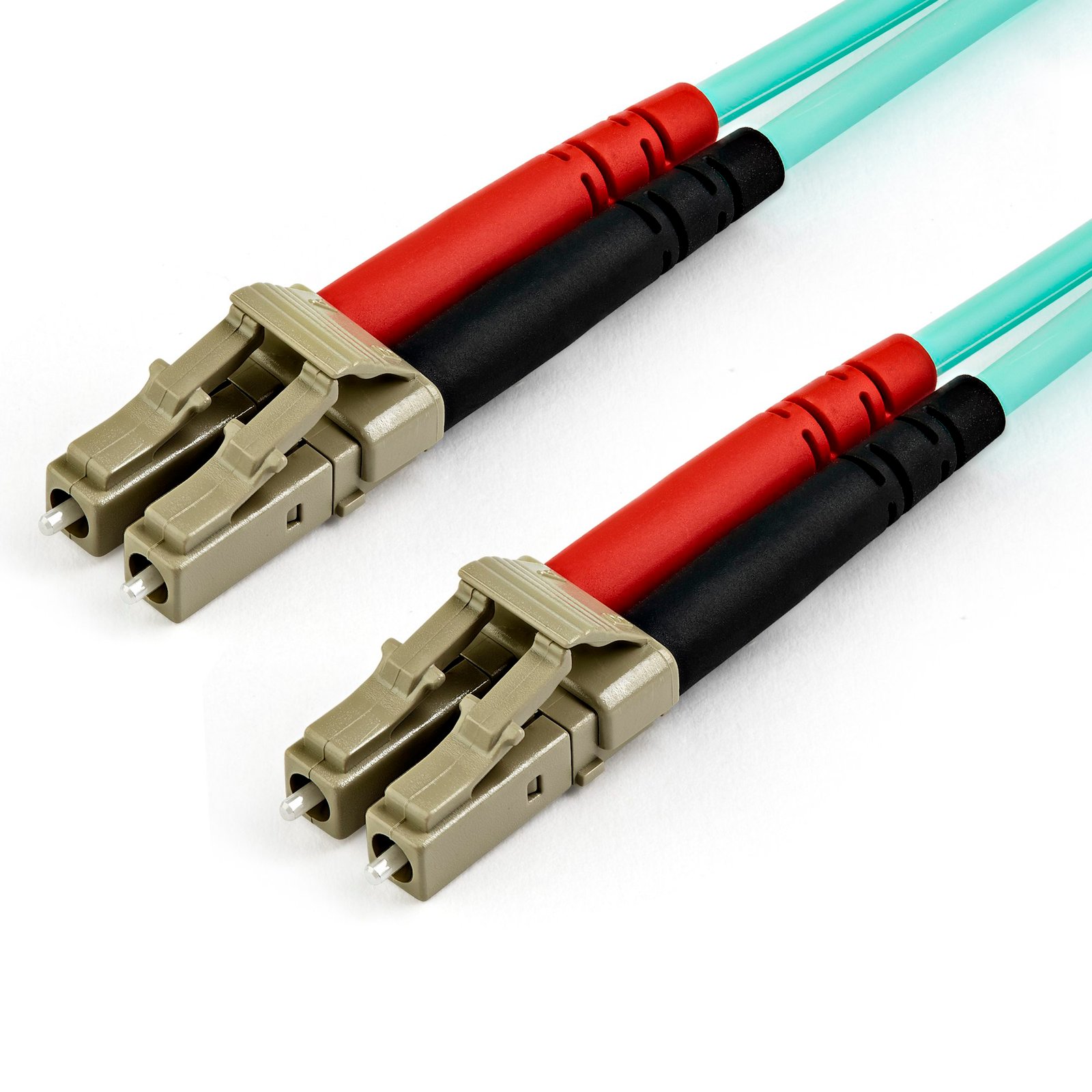

10m (30ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm LOMMF/VCSEL Zipcord Fiber, 100G, Low Insertion Loss - LSZH Fiber

10m (30ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm LOMMF/VCSEL Zipcord Fiber, 100G, Low Insertion Loss - LSZH Fiber Jumper Cord

$49.19

LSZH Jacket | Aramid Fiber Sheath | Ideal for SANs, data servers, SFP+

SKU: 450FBLCLC10 Category:

Specifications & Compliance

UPC
065030881838
Brand
StarTech.com
Included in Package
1 - 10 m Fiber Optic Cable
Shipping (Package) Weight
4.9 oz [140 g]
Weight of Product
4.6 oz [131.0 g]
Product Length
32.8 ft [10.0 m]
Product Width
0.6 in [15.2 mm]
Product Height
0.4 in [10.7 mm]
Package Depth
7.8 in [19.8 cm]
Package Width
6.5 in [16.6 cm]
Package Height
1.4 in [36 mm]
Color
Aqua
Cable Length
32.8 ft [10 m]
Warranty
Lifetime
Connector 1
LC Duplex Fiber
Connector 1 (Quantity)
1
Package Quantity
1
Connector 2
LC Duplex Fiber
Connector 2 (Quantity)
1
Operating Temperature
-20°C to 60°C (-4°F to 140°F)
Humidity
0~90% RH
Cable Jacket Material
Low Smoke Zero Halogen
Maximum Data Transfer Rate
100Gbps
Fire Rating
LSZH Rated (Low Smoke Zero Halogen)
Cable Rating
1Gbps / 10Gbps / 40Gbps / 100Gbps
Fiber Type
Multi Mode
Wavelength
850nm
Fiber Size
50/125
Fiber Classification
OM4
Fiber Cable Type
Duplex

Questions & Answers

What is the difference between UPC and APC fiber connectors, and which type do StarTech.com fiber products use?
UPC and APC connectors differ in their end-face polish, and StarTech.com fiber products use UPC connectors. Explanation: UPC (Ultra Physical Contact) and APC (Angled Physical Contact) are fiber connector types that differ in how the fiber end face is polished: UPC connectors: The fiber end face is polished flat with a slight dome shape to ensure direct core contact and low insertion loss. APC connectors: The fiber end face is polished at an 8-degree angle to reduce back reflection in high-performance applications. UPC and APC connectors are not compatible and should not be mated. The angled surface of an APC connector prevents proper alignment with a UPC connector, which can result in high signal loss or a failed connection. StarTech.com fiber products use UPC connectors, so they must be connected to other UPC-compatible fiber interfaces to ensure proper operation.
