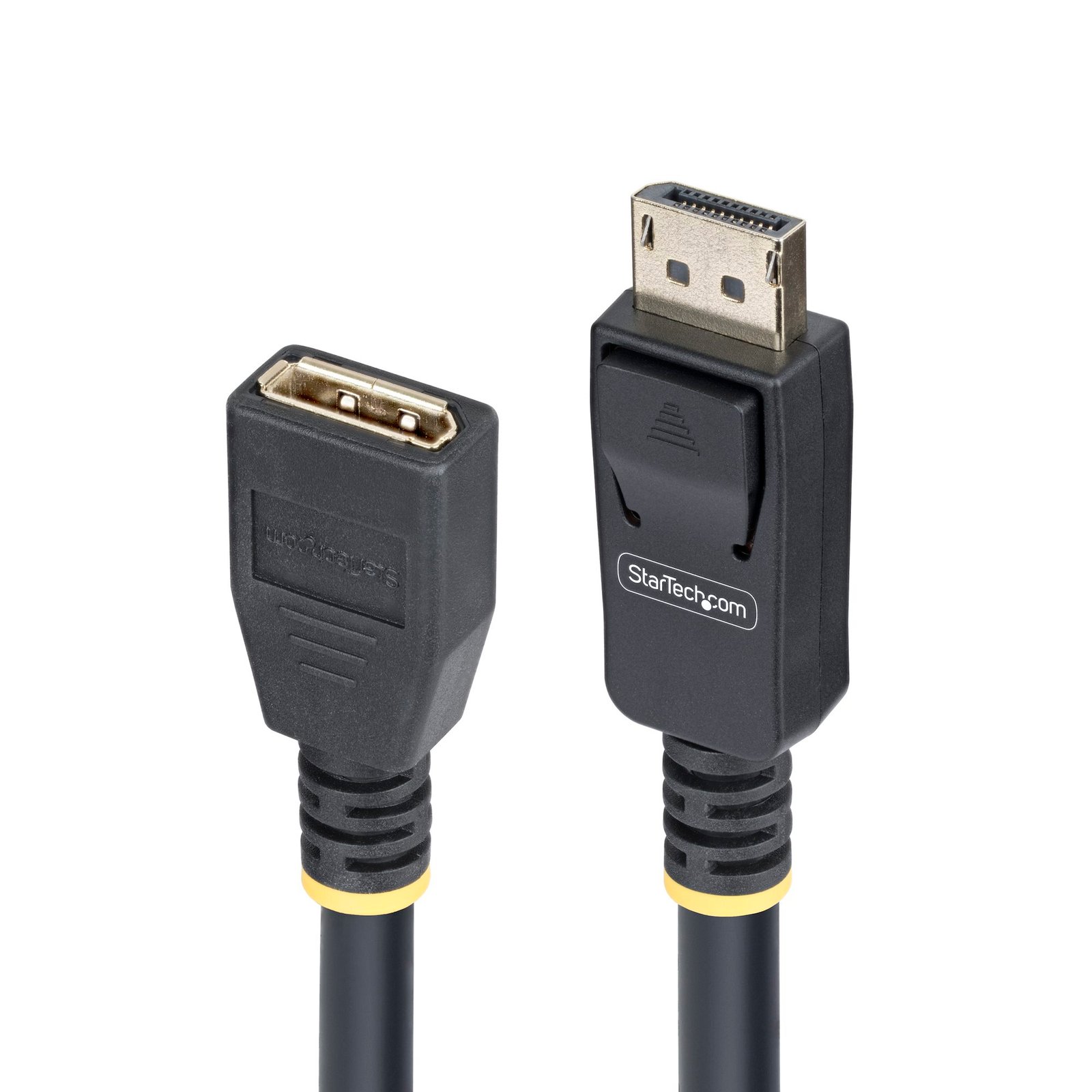

10ft (3m) DisplayPort 1.4 Extension Cable, DP 1.4 Port Saver Cable, 8K 60Hz, DP Male to Female Extension Adapter Cord, DisplayPort Extension Cable, TPE Jacket, M/F

Specifications & Compliance

UPC

065030916318

Brand

StarTech.com

Included in Package

1 - DisplayPort Extension Cable - M/F

Shipping (Package) Weight

8.5 oz [242 g]

Weight of Product

8.0 oz [228 g]

Product Length

9.9 ft [3.0 m]

Product Width

0.9 in [21.6 mm]

Product Height

0.6 in [15 mm]

Package Depth

7.9 in [20.1 cm]

Package Width

7.4 in [18.7 cm]

Package Height

1.5 in [39 mm]

Color

Black

Cable Length

10.0 ft [3.0 m]

Warranty

Lifetime

Connector 1

DisplayPort

Connector 1 (Quantity)

1

Connector 2

DisplayPort

Connector 2 (Quantity)

1

Operating Temperature

0°C - 50°C (32°F - 122°F)

Storage Temperature

-20°C - 70°C (-4°F - 176°F)

Humidity

5% - 85%

Material

Santoprene - Thermoplastic Rubber (TPE)

Cable Jacket Material

TPE - Thermoplastic Elastomers

Wire Gauge

30 AWG

Maximum Data Transfer Rate

32.4Gbps

Fire Rating

VW-1 Rated

Connector Plating

Gold

Cable Type

Passive Copper Cable

Cable Shield Material

Aluminum-Mylar Foil with Braid

Cable OD

0.3 in [8.4 mm]

Maximum Digital Resolutions

8K 60Hz

Active or Passive Adapter

Passive

Audio Specifications

DisplayPort - 7.1 Channel Audio, DisplayPort - 32 Channel Audio

HDR Support

HDR10

Video Revision

DisplayPort 1.4

Cable Shield Overlap

Aluminium-Mylar Foil

Supported Protocols

DP 1.4, DP 1.2, MST
