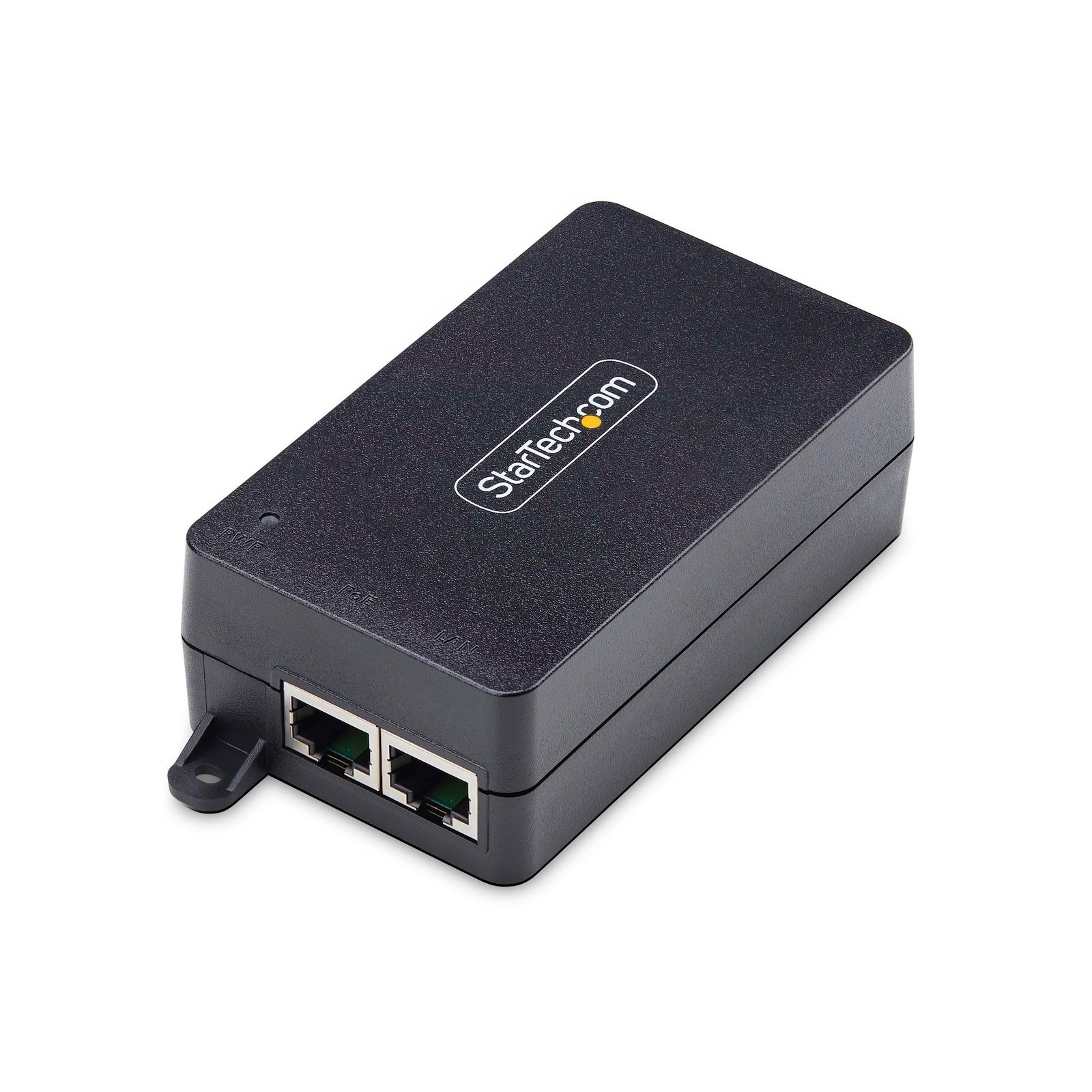

1-Port 2.5GbE PoE+ Injector, 10M/100M/1G/2.5G Ethernet, PoE/PoE+ 802.3af/802.3at, 30W, Multi-Gigabit Unmanaged Midspan Inline Power Over Ethernet, TAA

Specifications & Compliance

UPC

065030905787

Brand

StarTech.com

Included in Package

1 - PoE Injector, 1 - 6ft (1.8m) NA Power Cord, 1 - Quick-Start Guide

Shipping (Package) Weight

12.8 oz [364 g]

Weight of Product

3.5 oz [100.0 g]

Product Length

3.9 in [100.0 mm]

Product Width

2.3 in [58.4 mm]

Product Height

1.3 in [33.4 mm]

Package Depth

4.9 in [12.4 cm]

Package Width

8.3 in [21 cm]

Package Height

2.0 in [50.5 mm]

Color

Black

Warranty

2 Years

Connector 1

IEC C6 (250V AC, 2.5A)

Connector 1 (Quantity)

1

Connector 2

RJ-45

Connector 2 (Quantity)

1

Operating Temperature

32°F to 122°F (0°C to 50°C)

Storage Temperature

14°F to 158°F (-10°C to 70°C)

Humidity

5~95% RH (Non-Condensing)

Material

Plastic

Maximum Data Transfer Rate

2.5 Gbps

Industry Standards

IEEE 802.3at Type 2 / PoE+ (30 W), IEEE 802.3af Type 1 / PoE (15.4 W), IEEE 802.3ab (1000BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3i (10BASE-T), IEEE 802.3bz (2.5GBASE-T), IEC 61000-4-2 Level-4 ESD protection (8kV contact/15kV air)

Power Source

Standard 120V Power Cords

Chipset ID

Monolithic Power Systems - MP3924

Input Voltage

100 - 240 AC

Output Voltage

54 DC

Connector 3

RJ-45

Connector 3 (Quantity)

1

Power Consumption

32.4

LED Indicators

1 - Power LED: </br> Steady Green - Power is being supplied to the PoE Injector </br> Off - No power is being supplied to the PoE Injector

Number of Ports

1

Input Current

0.8 A

Output Current

0.6

Compatible Networks

2.5G/1G/100Mbps/10Mbps

Maximum Cable Length

328.1 ft [100 m]

Mounting Options

Surface Mount

Auto MDIX

Yes

Jumbo Frame Support

9K max.

Wake-On-LAN (WOL)

Yes

Supported Protocols

Wake-on-LAN (WoL)

PXE

Yes

Total Available Power Output

30W

ESD Protection

+/-8kV (Contact), +/-15kV (Air)
